Honda V45 MAGNA-VF750C 1982 User Manual

•
-
-
~ HONDA
® V45 ~~:::

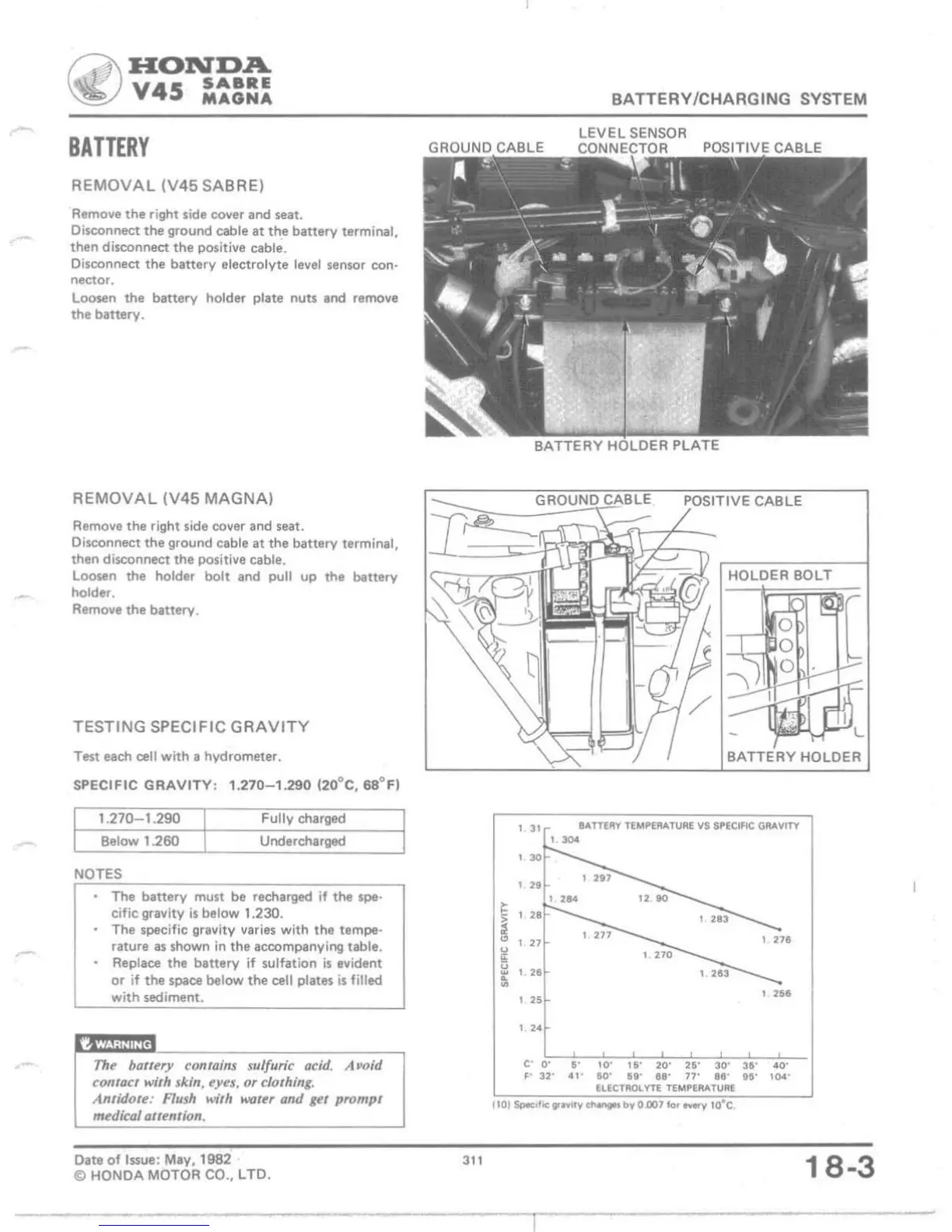

BATTERY
REMOVAL (V 45 SABRE)
Remove the right side COllef and seat.
DiKOnnect the ground cable at the battery terminal,
then disconnect the positive cable.
Disconnect
the battery electrolyte level sensor con·
nector.
loosen the battery holder plate nuts and remove
the battery.
REMOVAL (V45 MAGNA)
Remove the right side cover and seat.
Disconnect the ground cable at the battery terminal,
then disconnect the positive cable.
Loosen the holder bolt and putt up the battery
holder .
Remove the battery.
TESTING SPECIFIC GRAVITY
THt each cell with I hydrometer.
SPECIFIC GRAVITY : 1. 270-1.290 (20°C. 68°FI
1.270 1.290
Fully charged
Below
1.260
Undercharged
NOTES
The battery must be recharged if the spe-
cific gravity is below 1.230.
The specific gravity varies with the tampe-
rature as shown in the accompanying table.
Replace the blnery if sulfation is Illident
or if the space below the cell plates is filled
with sediment.
t.-WARNING
The bouery contains sulfuriC acid. Avoid
C()nl act with skin, qes, or clothing.
Antidote: Flush with waur and get prompt
mediad attention.
Date of Issue: May. 1982
e HONDA MOTOR CO., LTD.
",
BATTERY/CHARGING SYSTEM
LEVEL SENSOR
CABLE
HOLDER
'"
a..nffilY lEMPEAA1UIIE liS SPECifiC GAAIIITY
, '"
'"
,
,
"
'"
,
,~
" ~
~ , " 1 2153
~
1 211
1 '";"111
0
, "
~
1 210
U
,
"
&
1 2113
I ~II
, "
".
c· o·
,.
".
".
".
'"
". ". ".
f ' 31·
.,.
'"
...
".
n'
".
...
,,. .
ELECTII(X.YlE TEMPEAATUIIE
•
1 101 Sp.c,hc: ..... "v cNnon by 0.007 10' -v 10 C.
18-3
-------r- - - --- - -

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
