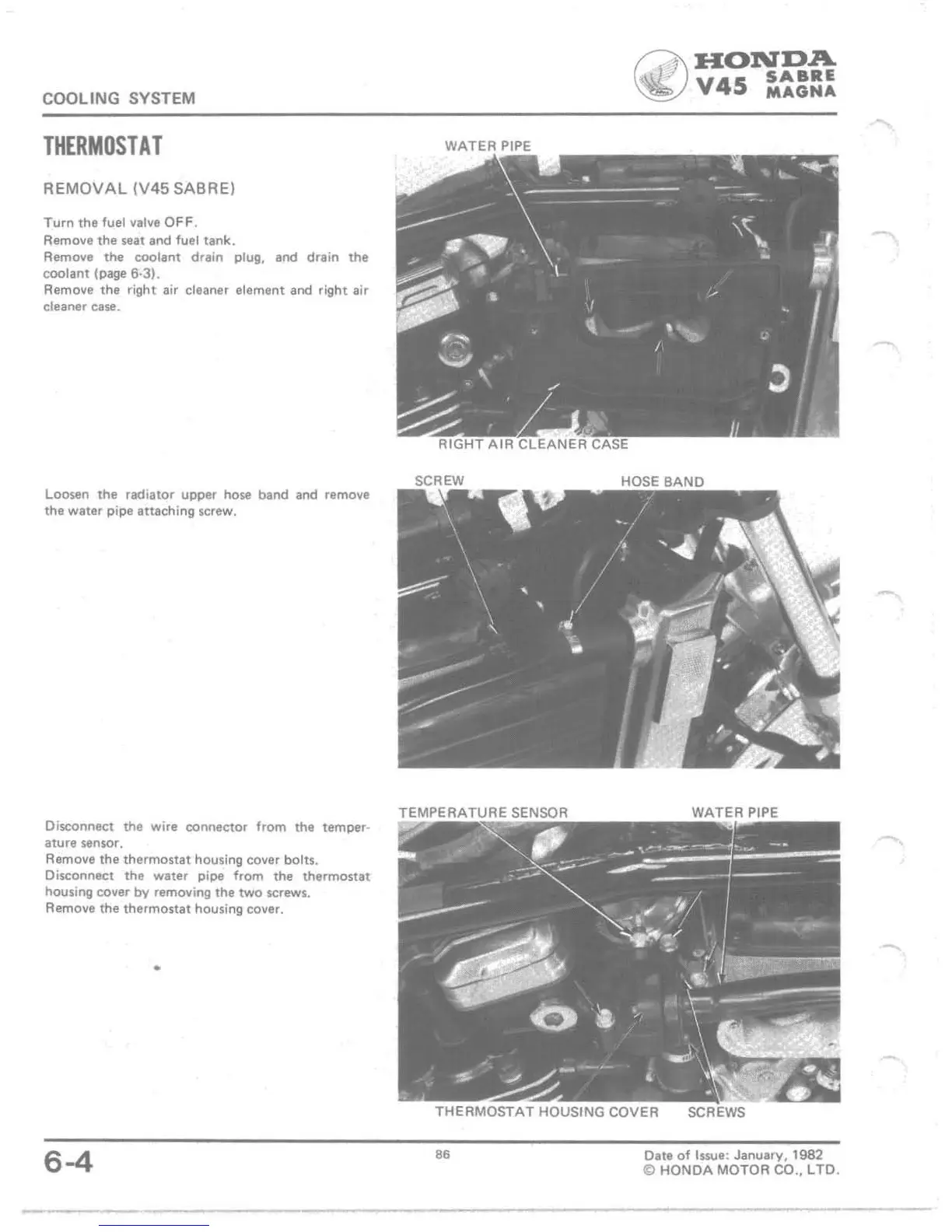

COOLING SYSTEM
THERMOSTAT
REMOVAL IV45 SABRE)
Turn the fuel v.lve OFF.
Remove the seat and fu el tank.
Remove the coolant drain plug, and drain the
coolant (page 6·3).
Remove the right air cleaner element and right air
cleaner c.se.
Loosen the rach.tor upper hose band and remove
the water pipe attaching screw.
Disconnect the wire connector from the temper -
ature sensor,
Remove the thermostat housing cover bolts.
Di5Connec:t the weter pipe from the thermostat
housing colier by removing the two screws.
Remove the
thermostat housing cOlier .
•
6-4
• •
86
f."0\ HONDA
~ V45 ~::!
- -
D.t. of I~e : January, 1982
e HONDA MOTOR CO., l TO.
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
