Honda V45 MAGNA-VF750C 1982 User Manual

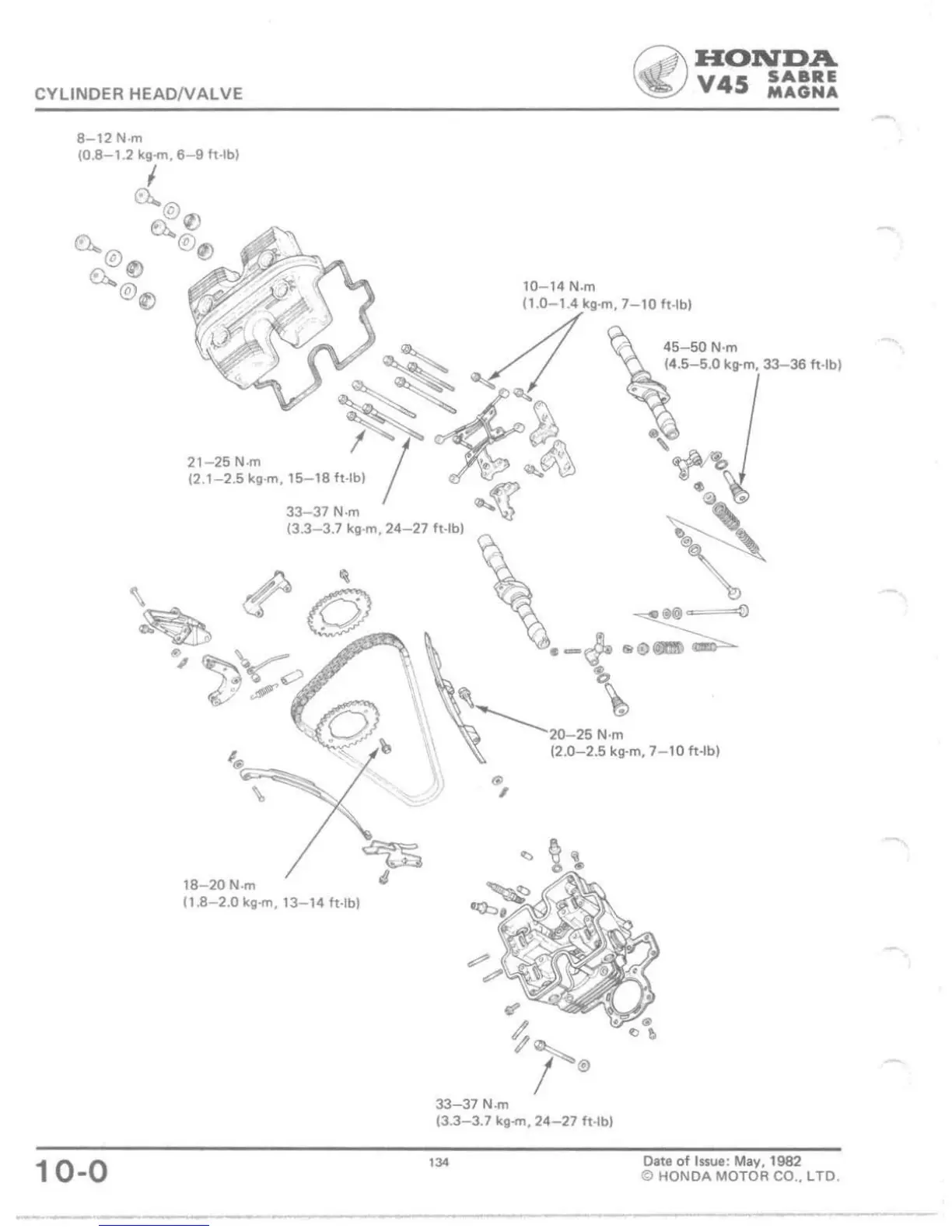

CYLINDER HEADIVALVE
8-12 N.m
(0.8- 1.2 kg.m, 6 - 9 ft · lb )
I
E1..®
e1.~
E1.. ®t;
®ill
E1..®
ill
21 - 25 N.m
(2 .1- 2.5 kg ·m, 15 - 18 ft ·lb)
33- 37 N·m
10 - 14 N.m
Cfj\ HONDA
~ V45 ~~~~!
(1 .0- 1.4 k,"m, 7-10 ft ·tb)
45- 50 N'm
(4.5-5 .0 kg-m. 33-36 ft·lbl
(3.3- 3.7 kg- m, 24 - 27 ft·lbl
10-0
18- 20 N.m
11.8- 2.0 kg-m , 13- 14 ft·tbl
:::-;:0
.-&- .. "' -
!.
'----. \,
\
20- 25 N·m
(2.0-2.5 kg·m. 7- 10 ft·lb)
"
,.
,
33-37 N.m
(3.3- 3.7 kg-m , 24-27 ft ·lbl
" ...
Date of Issue: Mav, 1982
© HONDA MOTOR CO" LTD .
-
- ._------- -------
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
