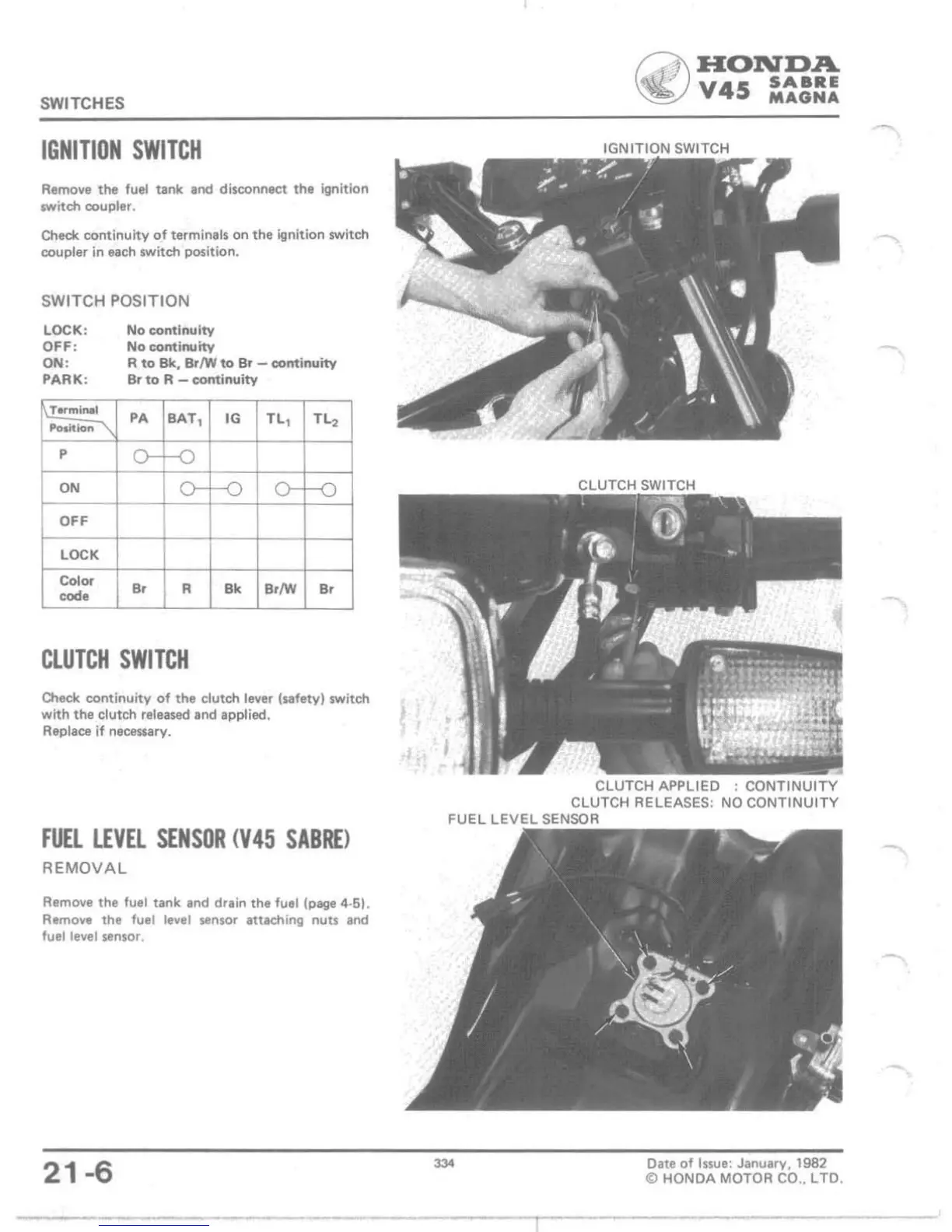

SWITCHES
IGNITION SWITCH
Remove the fuel tank and disconnect the ignition
"",itch coupler.
Check
continuity of terminals on the ignition switch
coupler in 8Ich switch position.
SWITCH POSITION
LOCK:
OFF :
ON:
PARK:
T .. m~IIII'
PoIltlon ~
P
ON
OFF
LOCK
CoIM
",do
No continuity
No continuity
R to Bk, Br/W to Bf - continuity
Br to R - continuity
PA
BAT, IG TL, TL,
J
S,
R 8k 8,/W
8,
CLUTCH SWITCH
Check continuity of the clutch lever (safetyl switch
with the clutch released and applied.
R.place if neceuary.
FUEL LEVEL SENSOR (V45 SABRE)
REMOVAL
Remove the fuel tank and drain the fuel (page 4·5) .
Remove the fuel level se nsor attaching nuts and
luelleva l sensor.
21-6
- ------ ---
'"
Q HONDA
~V45 ~~:::
CLUTCH APPLIED : CONTINUITY
CLUTCH RELEASES: NO CONTINUITY
FUEL LEVEL SENSOR
Date of Iss ue: January, 1982
©
HO NDA MOTOR CO ., L TO.
------,-,--
- --
-
-
-
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
