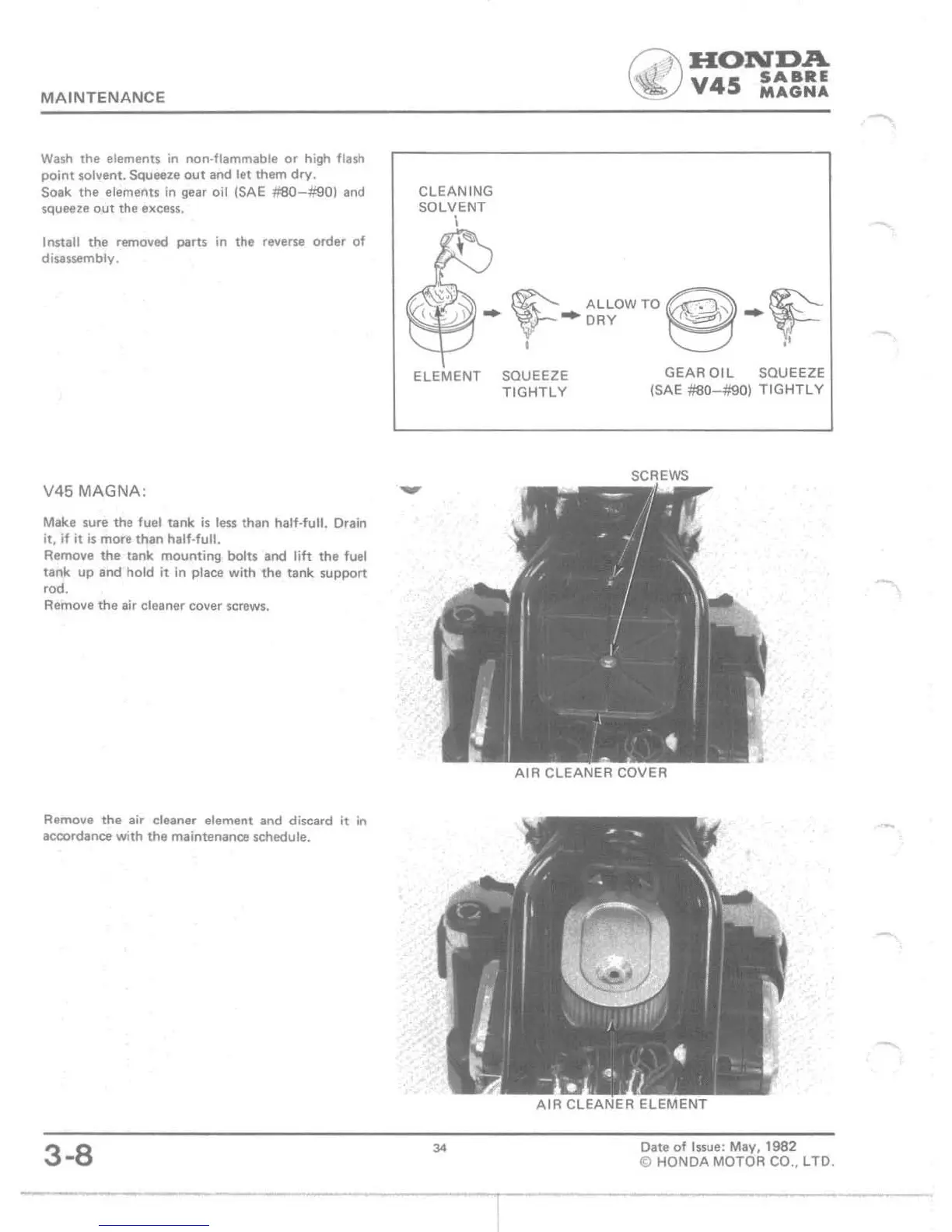

MAINT E NANCE
Wash the elements in non-flammable or high flash
point toillent. SQueeze out and let them dry.
SOlk the element5 in gear oil (SAE #80-#901 and
squeeze out the excess.
Install the removed parts 111 the reverse order of
di$aS$embly.
V45 MAGNA,
Make sure the fuel tank is less than half-full. Drain
it, if it is more than half-full.
Remove the tank mounting bolts and tift the fuel
tank up and hold it in place with the tank support
,od.
Remove the air cleaner cover screws.
Remoltl the air cleaner element and discard
accordance with the maintenance schedule.
3-8
---
-
it in
CLEANING
SOLVENT
\
~
HONDA
,,\Z " V45 SABRE
.- MAGNA
~ AllOW TO
... ~ "' DRY
- ~
•
ELEMENT SQUeeZE
TIGHTLY
34
"
GEAR OIL SQUEeZE
(SAE #80-#90) TIGHTlY
Date of I ssue: May. 1982
() HONDA MOTOR CO ., LTD.
- -
•
-
-
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
