Honda V45 MAGNA-VF750C 1982 User Manual

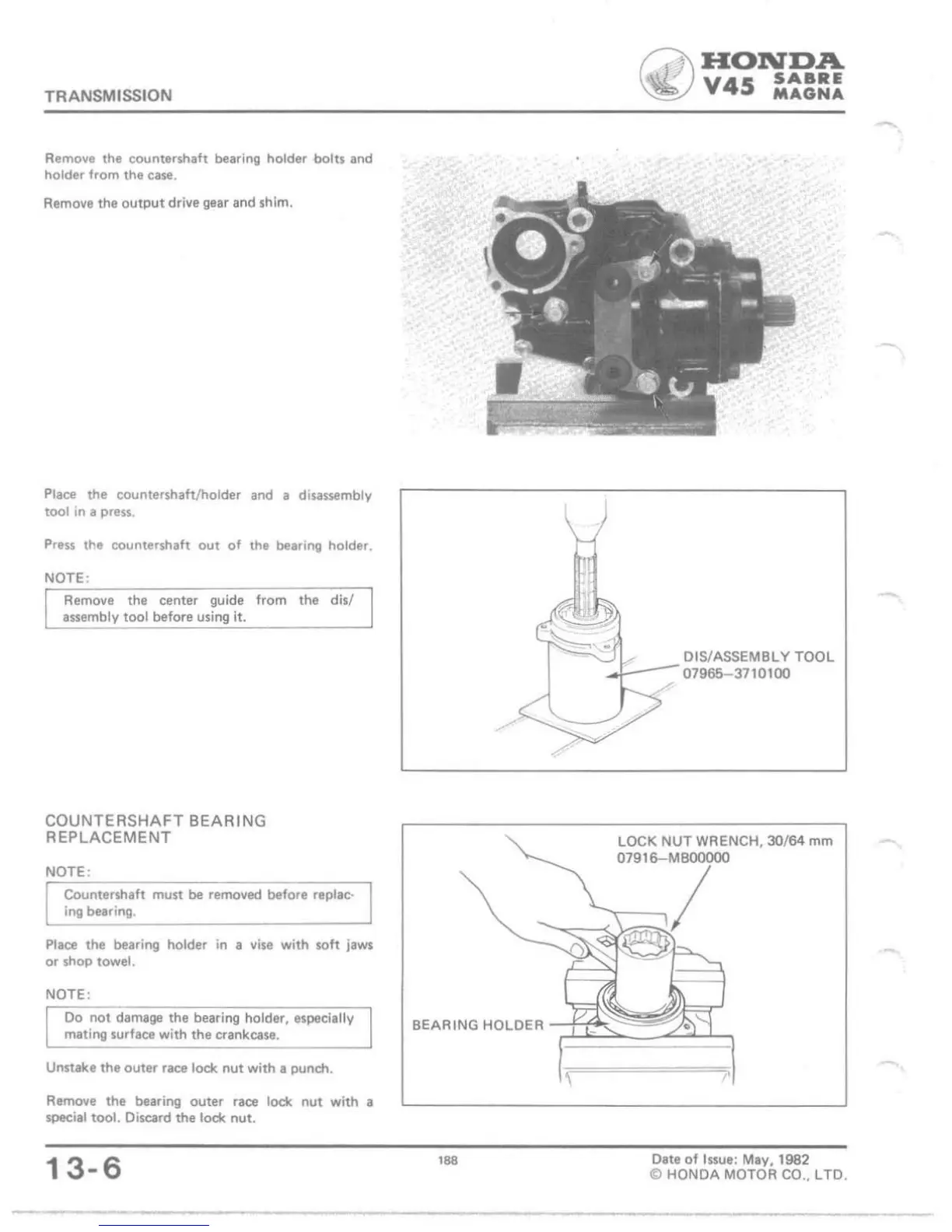

TRANSMISSION
RemO~8 the countershaft bearing holder bolts and
holder from the case,
Remove the output drive gear and shim.
Place the countershaftlholder and a disassembly
tool In a press.
Press the countersheft 01..11 of the bearing holder .
NOTE:
Remove the center guide from the dis!
assembly tool before using it.
COUNTERSHAFT BEARING
REPLACEMENT
NOTE:
Countershaft must be removed before replac-
ing bearing.
Place the bearing holder In a vise with soft jaws
or shop towel.
NOTE:
Do not damage the bearing holder, especially
mating surface with the crankcase.
Unstake the outer race lock nut With a punch.
Remove the bearing outer race lock nut with a
special tool. Di5CIrd the lock nut.
13-6
Q-, HON'DA
@ V45 ~~:~!
DIS/ASSEMBLY TOOL
::..J:--07965-3710100
LOCK NUT WRENCH, 30/64 mm
07916-N1BOC'9""
BEARING HOLDER ~~~~~~~~~~
188
Date of luue: May, 1982
© HONDA MOTOR CO., lTD.
-
-- - -- -- ----------------
-
-
-
