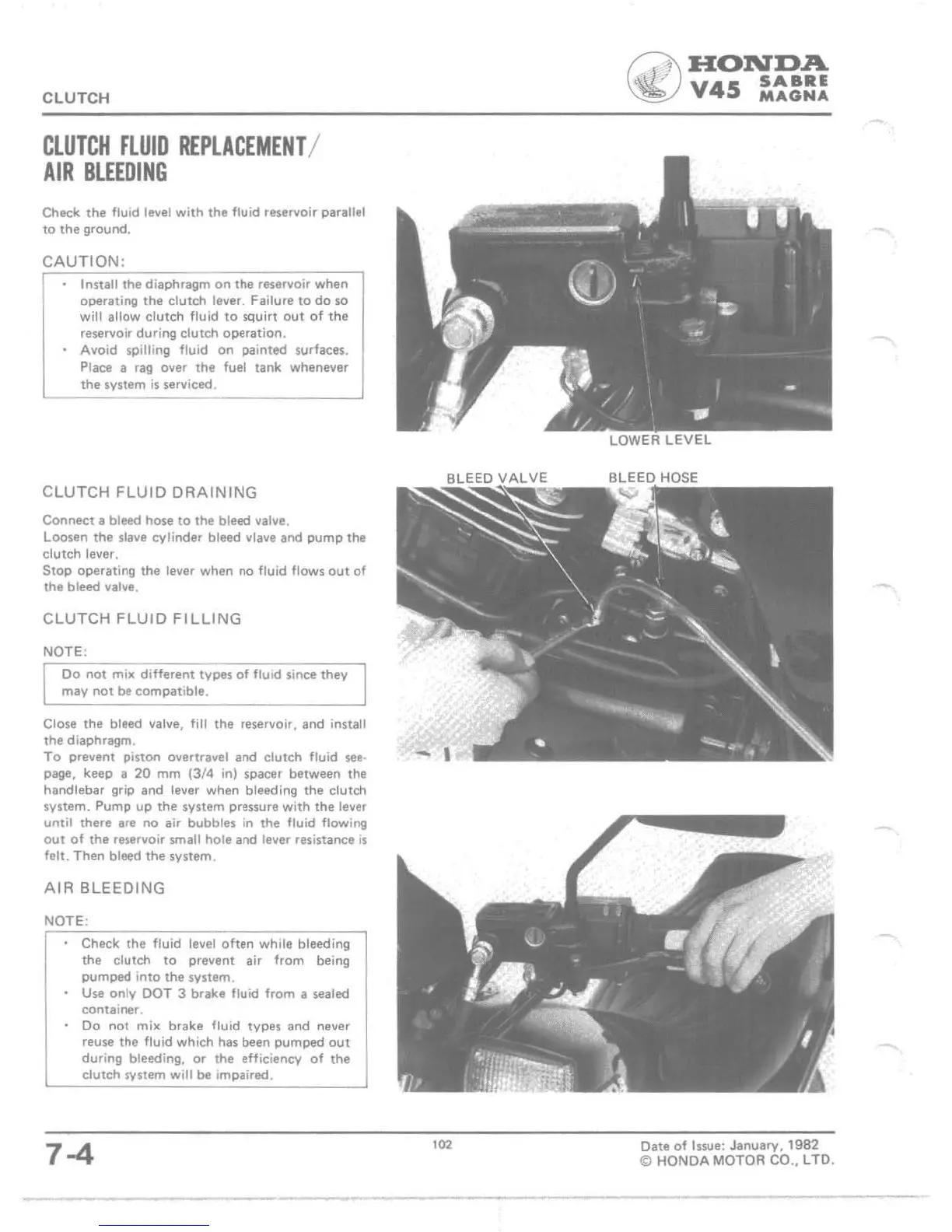

CLUTCH
CLUTCH
FLUID
REPLACEMENT
/
AIR
BLEEDING
Check.
the
fluid
le~el
with
the
fluid reservoir parallel
to
the
ground,
CAUTION:
I nstall
the
diaphragm
on
the
reservoir
when
operating the clutch lever. Failure to
do
so
will
allow
clutch
flUid
to
squirt
out
of
the
reservOir during
clutch
operation.
• Avoid spilling fluid on painted surfaces.
Place a
rag
over the fuel tank whenever
the
system
is
serviced.
----
---'
CLUTCH
FLUID
DRAINING
Connect
a bleed hose
to
the
bleed valve,
Loosen
the
slave
cylinder
bleed
vlav!!
and
pump
the
clutch
lever.
Stop
operating
the
lever
when
no
fluid flows
out
of
the
bleed
vaivi
.
CLUTCH
FLUID
FILLING
NOTE:
Do
not
mix
different
types
of
flUid since
they
may
not
be
compatible.
Close the bleed valve, till the reservoir, and install
the
diaphragm
.
To
prevent
piltOll
overtr
.... el
and
clutCh
fluid
see-
page,
keep
a
20
mm
(3/4
in)
spacer between
the
handlebar
grip and lever
when
bleeding
the
clutch
system.
Pump
up
the
system pressure w1th
the
lever
until
there
are no air
bubbles
in
the
fluid flowing
out
of
the
reservoir small hole and lever resistance
is
felt.
Then
bleed
the
system.
AIR
BLEEDING
NOTE:
Check
the
fluid level
ohen
while bleeding
the
clutch
to
prevent air from being
pumped
into
the
system.
Use
only
DOT 3
brake
fluid from a sealed
container.
•
00
not
mix
brake
fluid
types
and
never
reuse
the
fluid
which
has
been
pumped
out
during bleeding.
or
the efficiency
of
the
clutch
system will be Impaired.
7-4
- I
102
Date
of
Issue:
January.
1982
© HONDA MOTOR
CO.,
l
TO.
-
-
-
