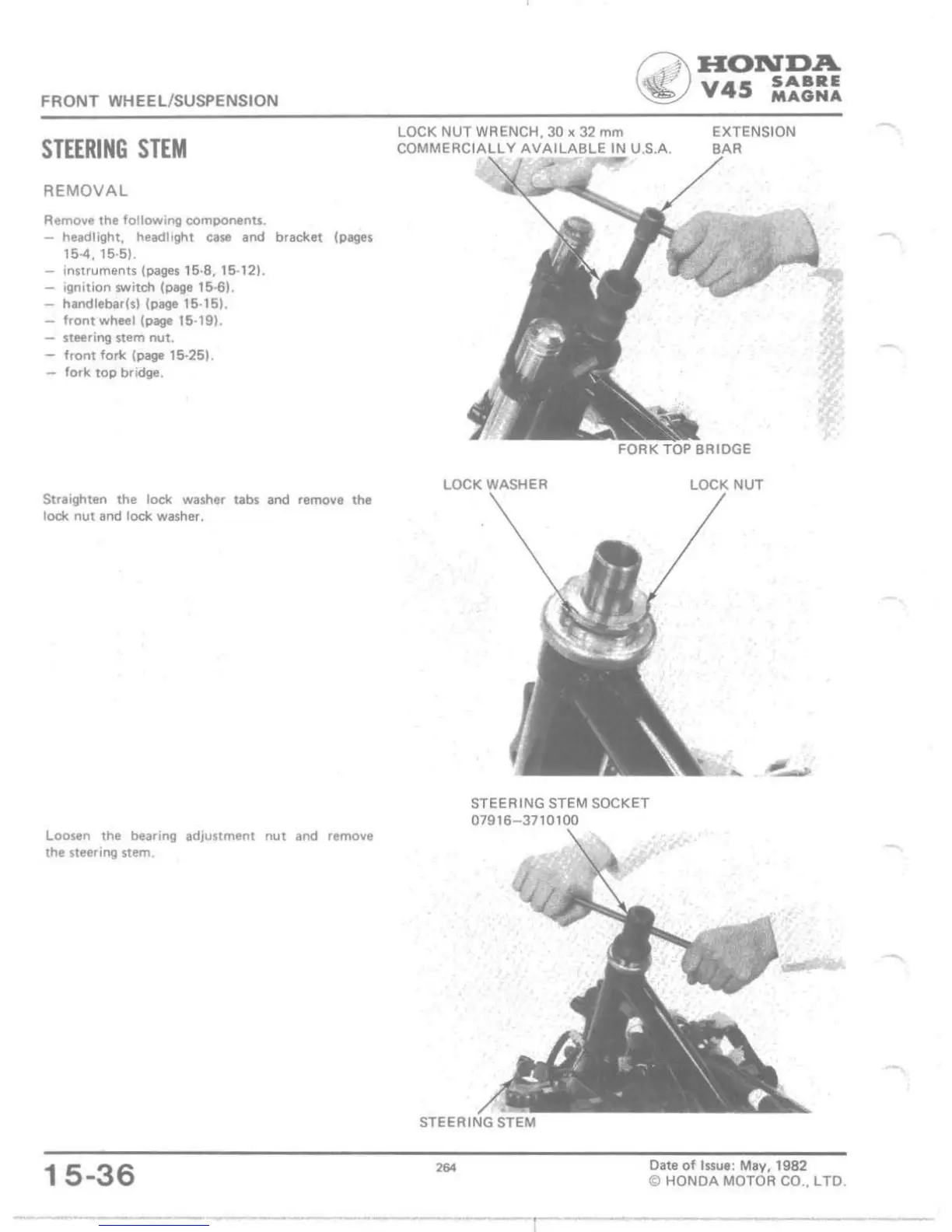

FRONT WHEEL/SUSPENSION
STEERING STEM
REMOVAL
Remove the following components.
headlight, headlIght case and
15-4,15·5).
bracket (pages
instruments (page515·8. 15·12).
Ignition switch (page 15·6).
handlebar!s) (page 15·151.
front wheel (page 15·19).
steering stem nut.
tront fork (page 15-251.
- fork. top bridge.
Straighten the lock washer tabs and remove the
lock nut and Ioct< washer.
Loosen the bearing adjustment nut and remove
the steering stem.
15-36
--
--
- -
,
LOCK 30 It 32 mm EXTENSION
IN U.S.A.
-
LOCK WASHER
LOC:KNUT
4iI' n •
STEERING STEM SOCKET
26'
Date of Issue: May, 1982
© HONDA MOTOR CO .. L TO
-- ..-, ---
- -

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
