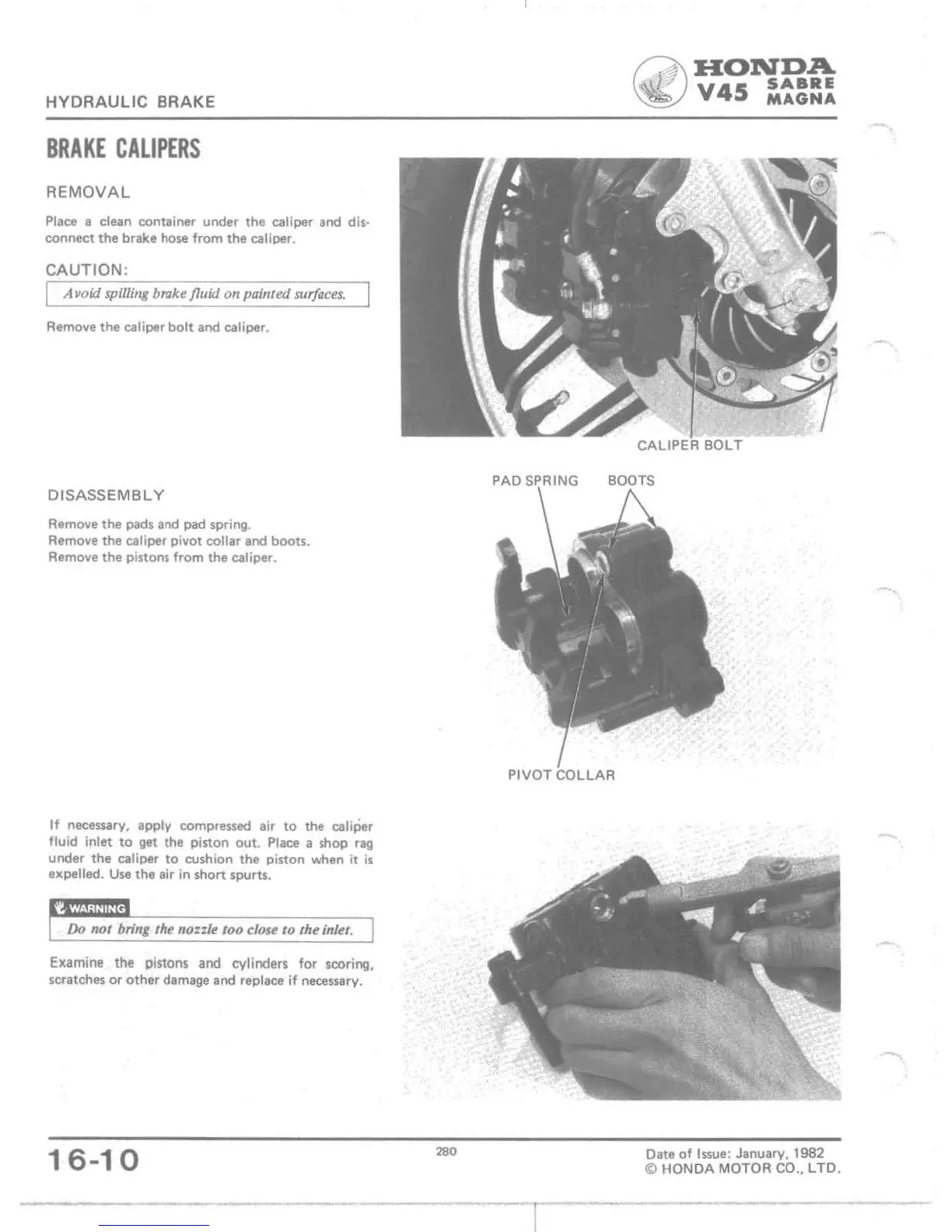

HYDRAULIC BRAKE
BRAKE CALIPERS
REMOVAL
Place a cll.n container under the caliper and dis-
connect the brake hose from the caliper.
CAUTION:
I Avoid spilling brake fluid on painted sur/aces.
Remove the caliper bolt and caliper.
DISASSEMBLY
Ramove the pads and pad spring.
Remove the caliper pivot collar and boots.
Remove the pistons from the caliper.
If necessary, apply compressed air to the caliPer
fluid inlet to get the piston out. Place a shop rag
under the caliper to cushion the piston when it is
IlCpelied. Use the air in short spurts.
the nonle IOD c10u to Ihe inle"
Examine the pistons and cvlinders for scoring.
scratches or other damage and replace if necessary.
16-10
---_.
BOLT
PAD S~PIIN<
BOOTS
280
Qate of Issue: January, 1982
C> HONDA MOTOR CO., L TO.
-- -- ---r--'
--

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
