Honda V45 MAGNA-VF750C 1982 User Manual

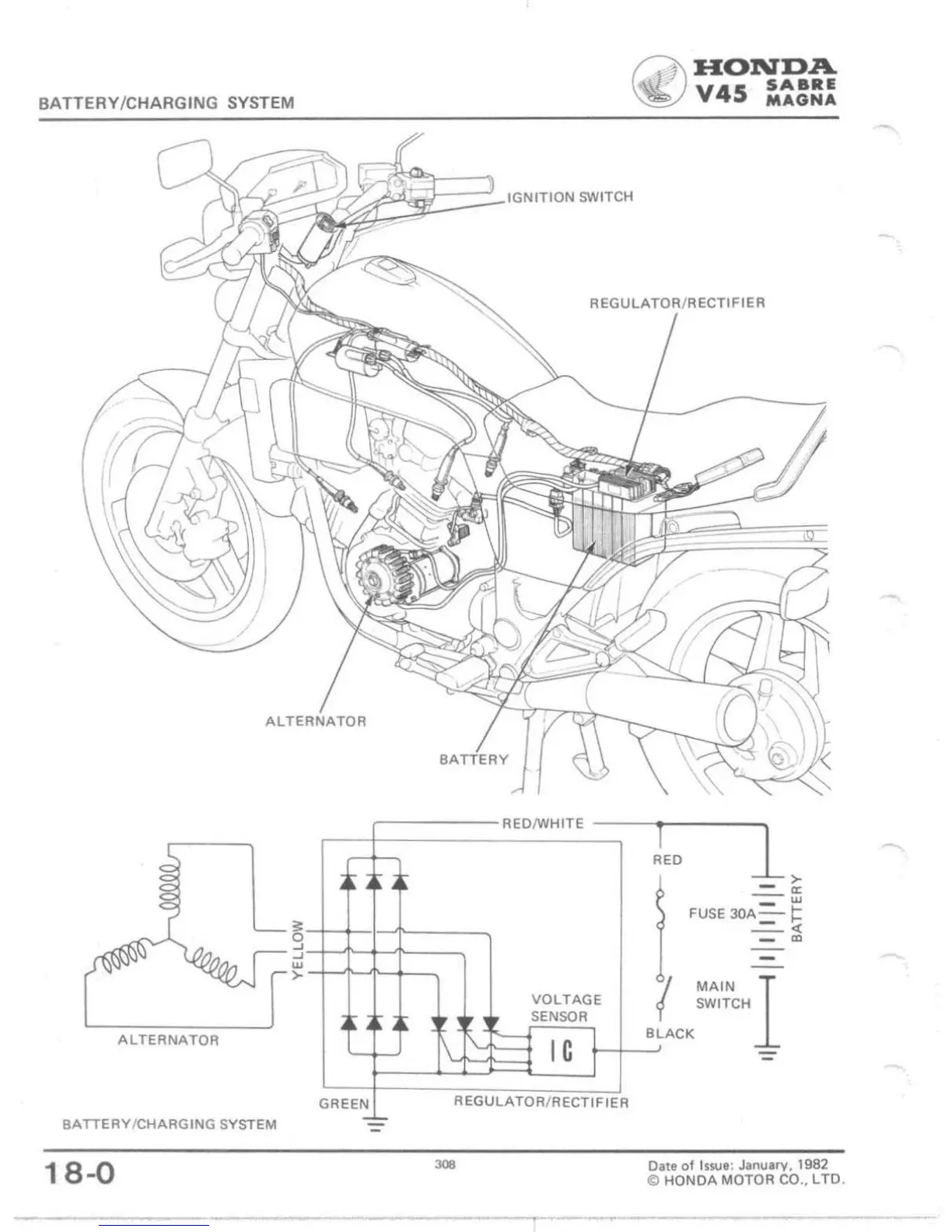

BATTERY/CHARGI NG SY STE M
~~:::=~ IGNITION SWITCH
').-.=
A EGULATOR ! RECTIF I E R
ALTERNATOR
L-_~
,--j
w
>-
BATTERY / CHARGING SYSTEM
18-0
.. ; ,
t
..
GREEN
-
'-
REO/WHITE
VOLTAGE
: ~
Ir
SENSOR
I C
R eGULATO R/ RECTIF IE R
-
- -----------~-
-- -
1
RED
I
>-
- ~
_ w
FUSE JOA
-~
-=- '"
_ m
-
1
MAIN
SWITCH
BLACK
-
-
Date of Issue : January. 19 82
© HONDA MOTOR CO., L TO.

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
