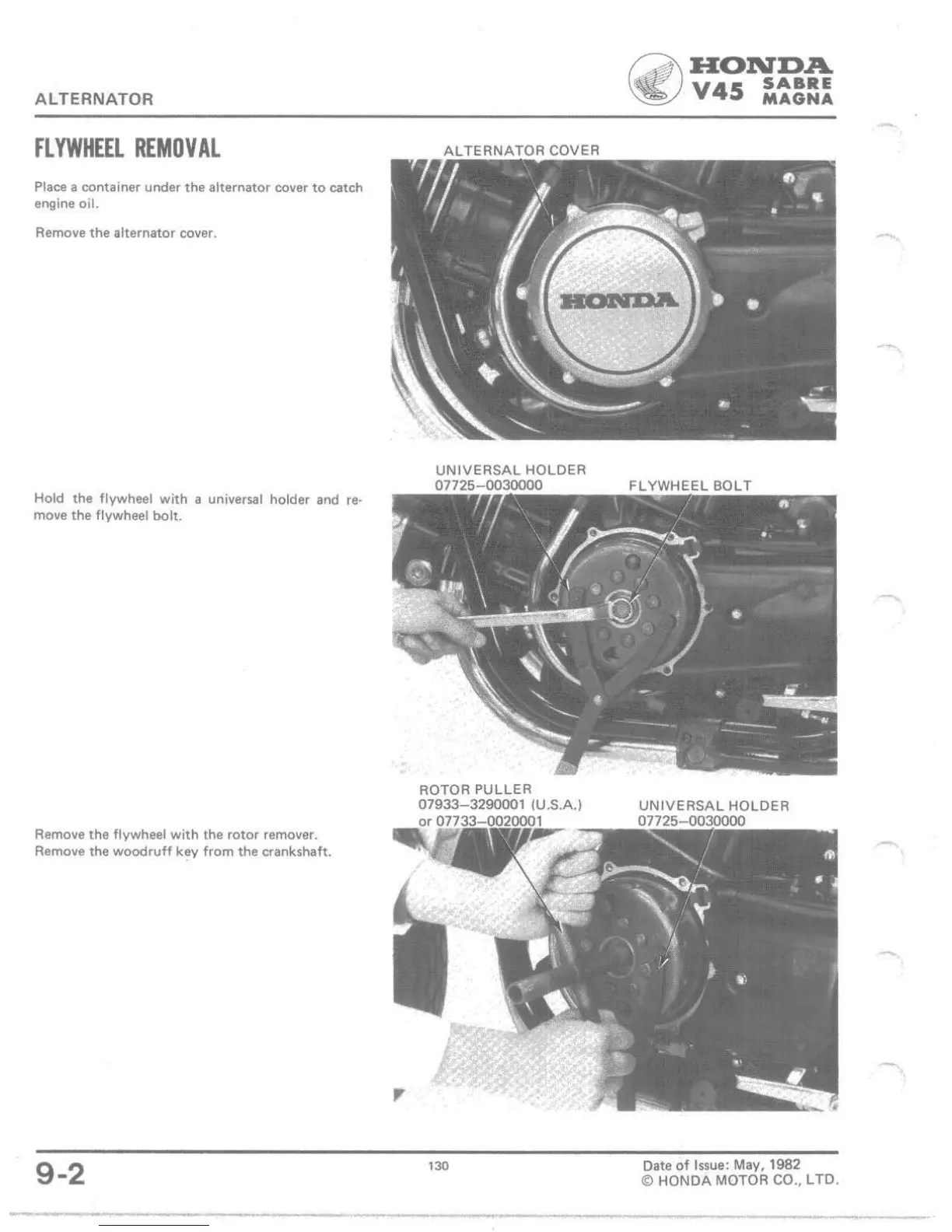

ALTERNATOR
FLYWHEEL
REMOVAL
Place a container
under
the
alternator
cover
to
catch
engine oil.
Remove the alternator cover.
Hold the flywheel
with
a universal holder and
re-
move the flywheel bolt.
Remove the flywheel
with
the rotor remover.
Aemove
the
woodruff
key
from
the
crankshaft.
9-2
----._----------
UNIVERSAL
HOLDER
ROTOR PULLER
07933-329000
1 (U.S.A.)
130
-.
,
UNIVERSAL
HOLDER
Date
of
I
ssue:
May, 1982
©
HONDA
MOTOR CO.,
LTD.
-
-
