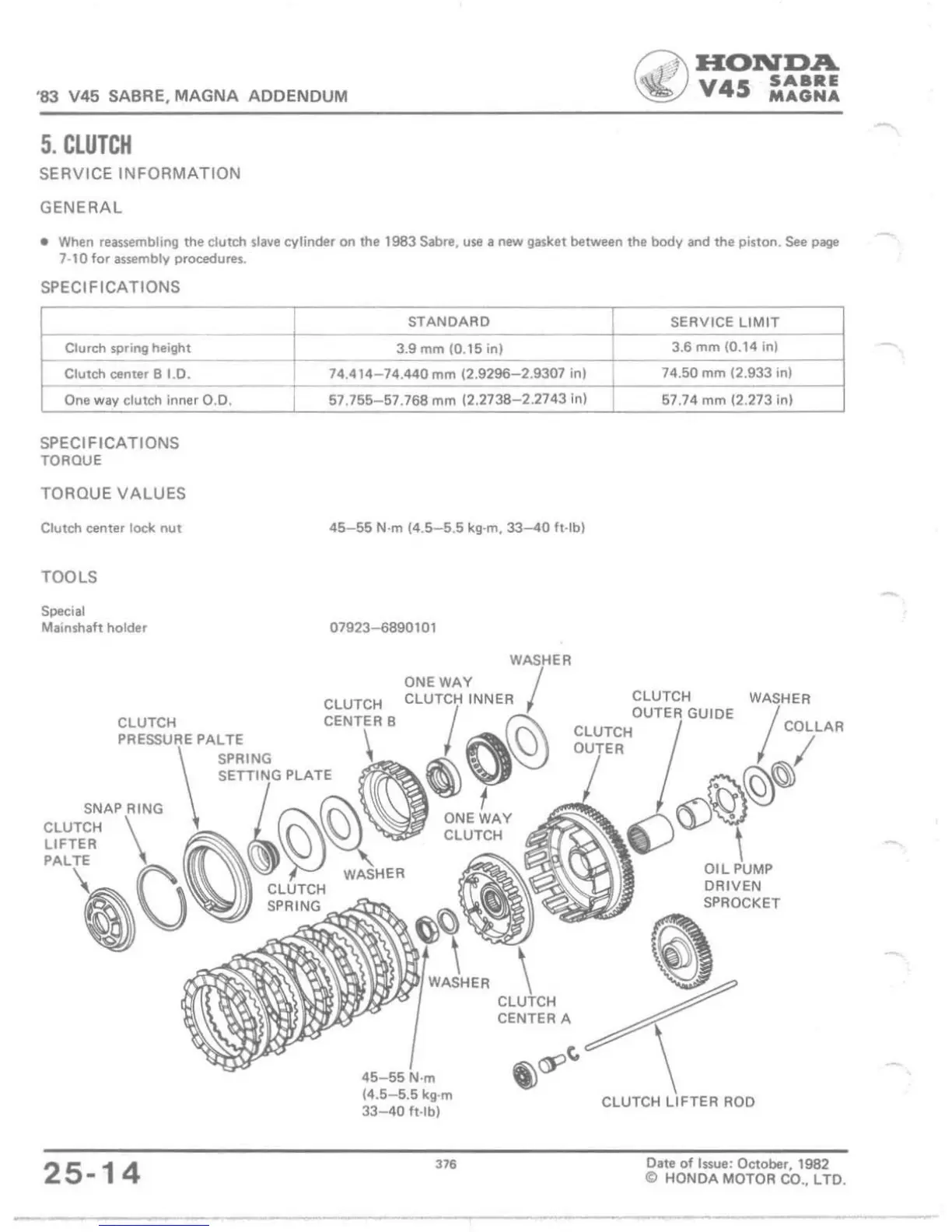

'83 V45 SABRE, MAGNA ADDENDUM
5, CLUTCH
SERVICE INFORMATION
GENERAL
• When reassembling the clutch slave cylinder on the 1983 Sabre, use a new ga~ket between the body and the piston. See page
7-10 for assembly proceduru.
SPECIFICATIONS
Clurch spring height
r-
Clutch center B 1.0.
One way clutch inner 0.0.
SPECIFICATIONS
TORQUE
TOROUE VALUES
Clutch center lock nut
TOOLS
Special
Mainshaft holder
CLUTCH
SNAP RING
CLUTCH
LIFTER
\
PAlTE
SPRING
,
STANDARD
3.9 mm 10 . 15 in)
74.414-74.440 mrn (2.9296-2.9307 in)
57.755-57.768 mm (2.2738-2.2743 in)
45-55 N·m 14.5-5.5 kg-m, 33-40 h · lb )
07923-6890101
WASHER
ONE WAY I
CLUTCH INNER
CLUTCH
PLATE
B a@)
I
ONE WAY
CLUTCH
CENTER A
SERVICE LIMIT
3.6 mm (O.l4 in)
74.50 mm (2.933 in)
57.74 mm (2.273 in)
CLUTCH
GUIDE
WASHER
! C;LAR
~(§)~
ISJ,
OIL PUMP
DRIVEN
SPROCKET
45-55
(4.S-S.S kg-m
33-40 ft·lb)
CLUTCH LIFTER ROD
376 Date of Issue: October, 1982
CI HONDA MOTOA CO., L TO. 25-14
-------- ----
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
