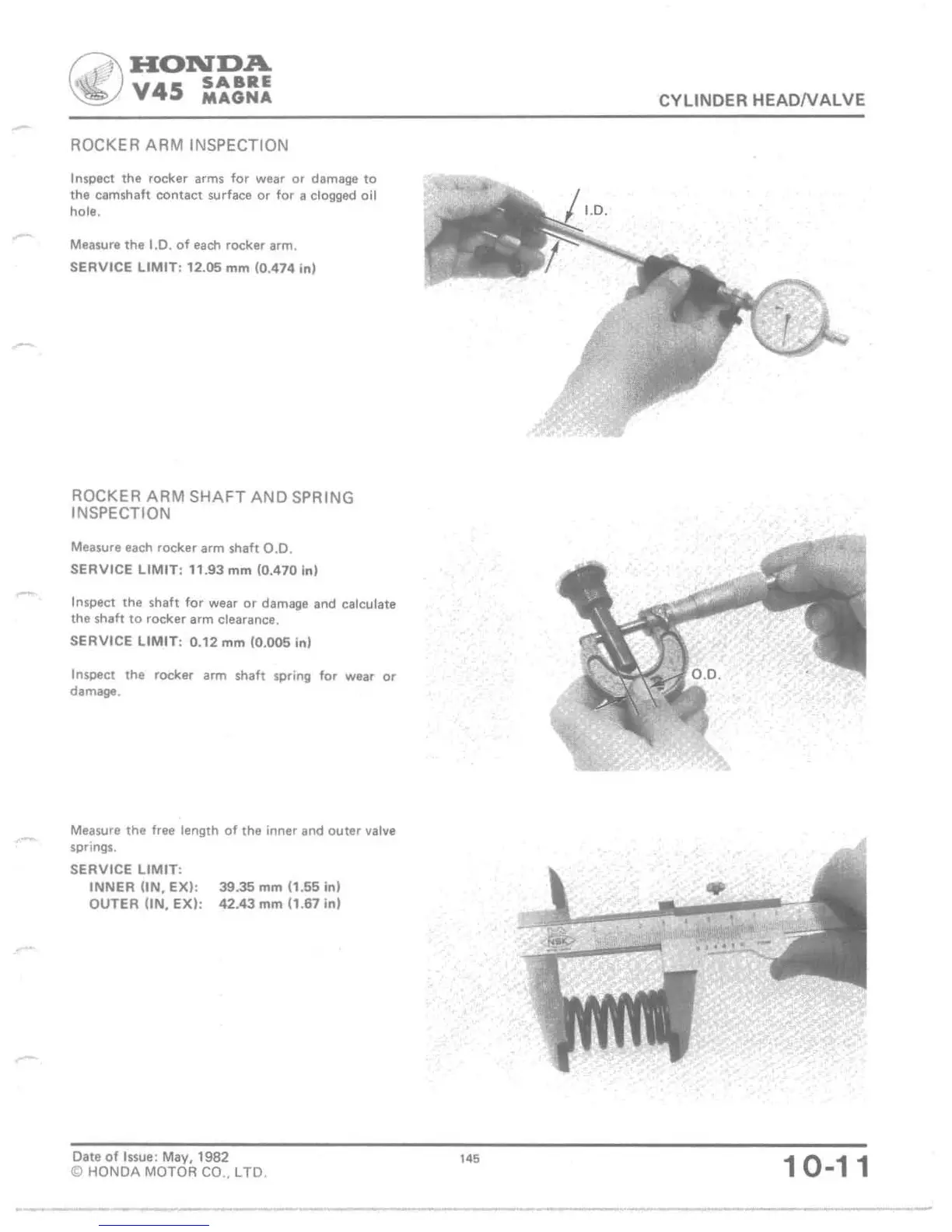

ROCKER ARM INSPECTION
Inspect the rocker arms for wear or damage to
the camshaft contact surface or for I clogged oil
hal •.
Measure the 1.0. of each rocker arm.
SERViCe LIMIT: 12.05 mm (0.474 in)
ROCKER ARM SHAFT AND SPRING
INSPECTION
Measure tach rocker arm shaft 0.0.
SERVICE LIMIT: 11.93 mm (0.470 Inl
Ins~t the shaft for wear or damage .nd c.lculate
the shaft to rocker arm clearance.
SERVICE LIMIT: 0.12 mm (0.005 in)
Inwatt the rocker arm shaft spring for wear or
damage.
Measure the free length of Ihe inner and outer valve
springs,
SERVICE LIMIT:
INNER (IN. EX):
OUTeR (IN, EX):
39.35 mm 11.55 In)
42.43 mm (1.67 in)
Date of Issue : May. 1982
© HONDA MOTOR CO ., LTD.
CYLINDER HEADNALVE
145
10-11

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
