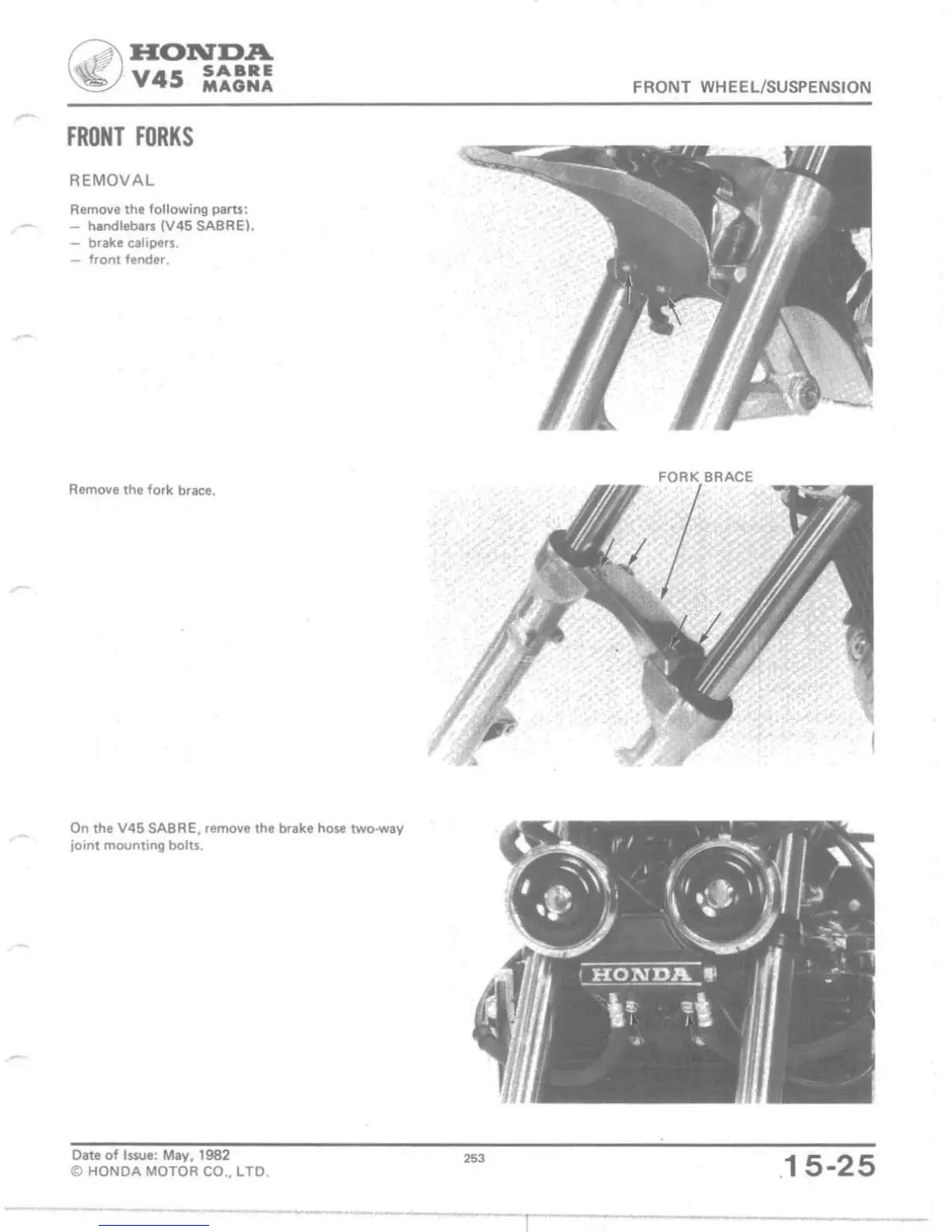

f'0l\
HONDA
~
V45
~~:::
FRONT
FORKS
REMOVAL
Remove
the
following
parb:
- handlebars (V45 SABAEl.
-
brake
calipers.
-
front
fender.
Remove
the
fork brace.
On
the
V45
SABRE, remove
the
brake hose two-way
joint
mounting
bolts.
Date
of
Issue: May. 1982
()
HONDA MOTOR CO., L TO.
253
------r
FRONT WHEEL/SUSPENSION
FORK
BRACE
.
15-25
-----
-

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honda V45 MAGNA-VF750C 1982 and is the answer not in the manual?

Honda V45 MAGNA-VF750C 1982 Specifications

General IconGeneral
Bore x Stroke70.0 mm x 48.6 mm
Compression Ratio10.5:1
Cooling SystemLiquid cooled
Transmission6-speed
Final DriveShaft
Front SuspensionTelescopic fork
Rear SuspensionDual shocks
Front BrakesDual disc
Rear BrakesDrum
Rear Tire130/90-16
Seat Height765 mm (30.1 inches)
Fuel System4 x 32mm Keihin carburetors
