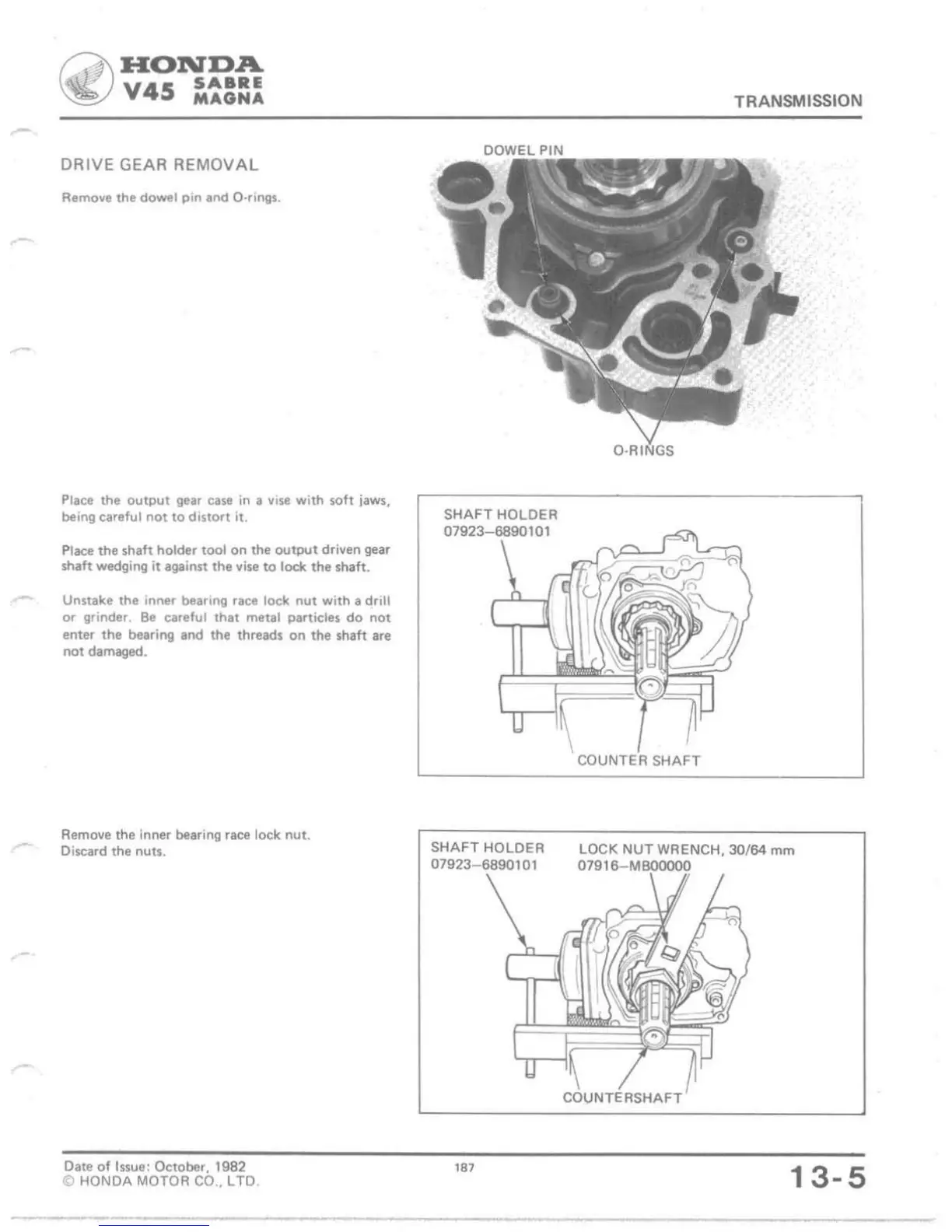

DRIVE GEAR REMOVAL
Remove
the
dowel
pin
and
a -nngs.
Place the
output
gear case
in
a
Vise
with
soh
jaws,
being
careful
not
to
distort
it.
Phtce the
shaft
holder tool
on
the
output
driven gear
shaft wedging
it
against
the
\/ise
to
lock
the
shaft.
Unstake
the
inner
beiring
race lock
nut
with
a drill
or
grinder.
Be
careful
that
metal particles
do
not
enter
the
bearing and the threads
on
the shaft are
not
damaged.
Remove the inner bearing race lock
nut
.
Discard the nuts.
Date
of
Issue: October, 1982
© HONDA MOTOR
CO"
lTD
.
-
- -
-
SHAFT
HOLDER
SHAFT
HOLDER
01
'"
TRANSMISSION
SHAFT
LOCK.;:..N"U:.T?WiiOORENCH.
30/64
mm
07910
13-5
- -
