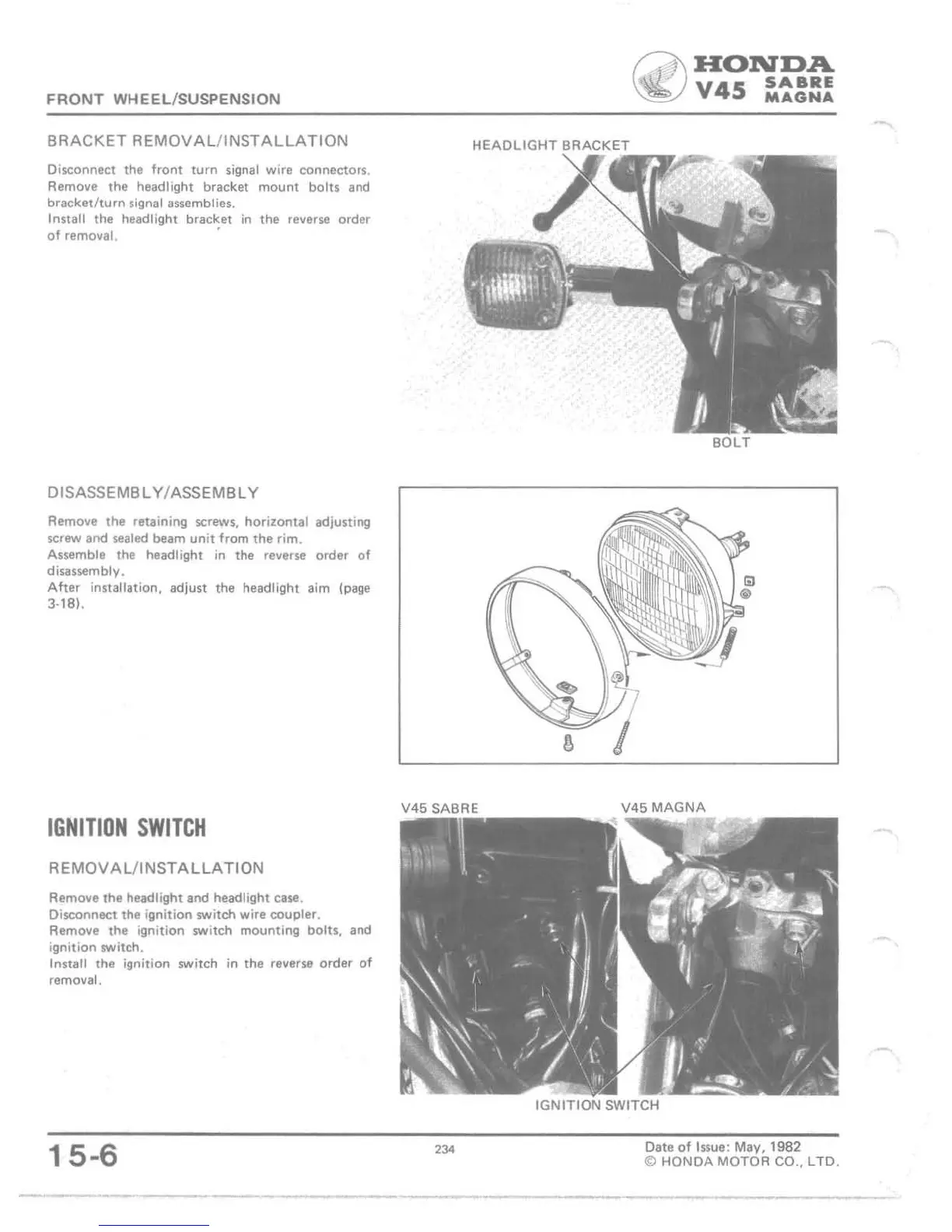

FRONT WHEEL!SUSPENSION
BRACKET REMOVAL/INSTALLATION
Disconnect the front turn signal wIre connectors.
Remove the headlight bracket mount bolts and
bracket/turn signal assemblies.
Install the headlight bracket in the reverse order
of removal. '
DISASSEMBLY/ASSEMBLY
Remove the retaining screws, horizontal adjusting
screw and sealed beam unit from the rim.
Assemble the headlight in the reverse order of
disassembly.
After inSlaliation, adjust the headlight aim (page
3·18).
IGNITION SWITCH
REMOVAL!INST ALLATION
Remove the headlight and headlight ~se.
Disconnect the ignition switch ..... ire coupler.
Remove the ignition switch mounting bolts, and
ignition switch.
Install the ignition switch in the reverse order of
removal.
15-6
- --
HEADLIGHT BA1Ac:'-KET
~
HONDA
~ V45 SABRE
MAGNA
V45 SABRE
V45 MAGNA
234
Date of Issue: May, 1982
© HONDA MOTOR CO .. L TO .
-
-
-
