Q HONDA
~ V45 ~~:~:

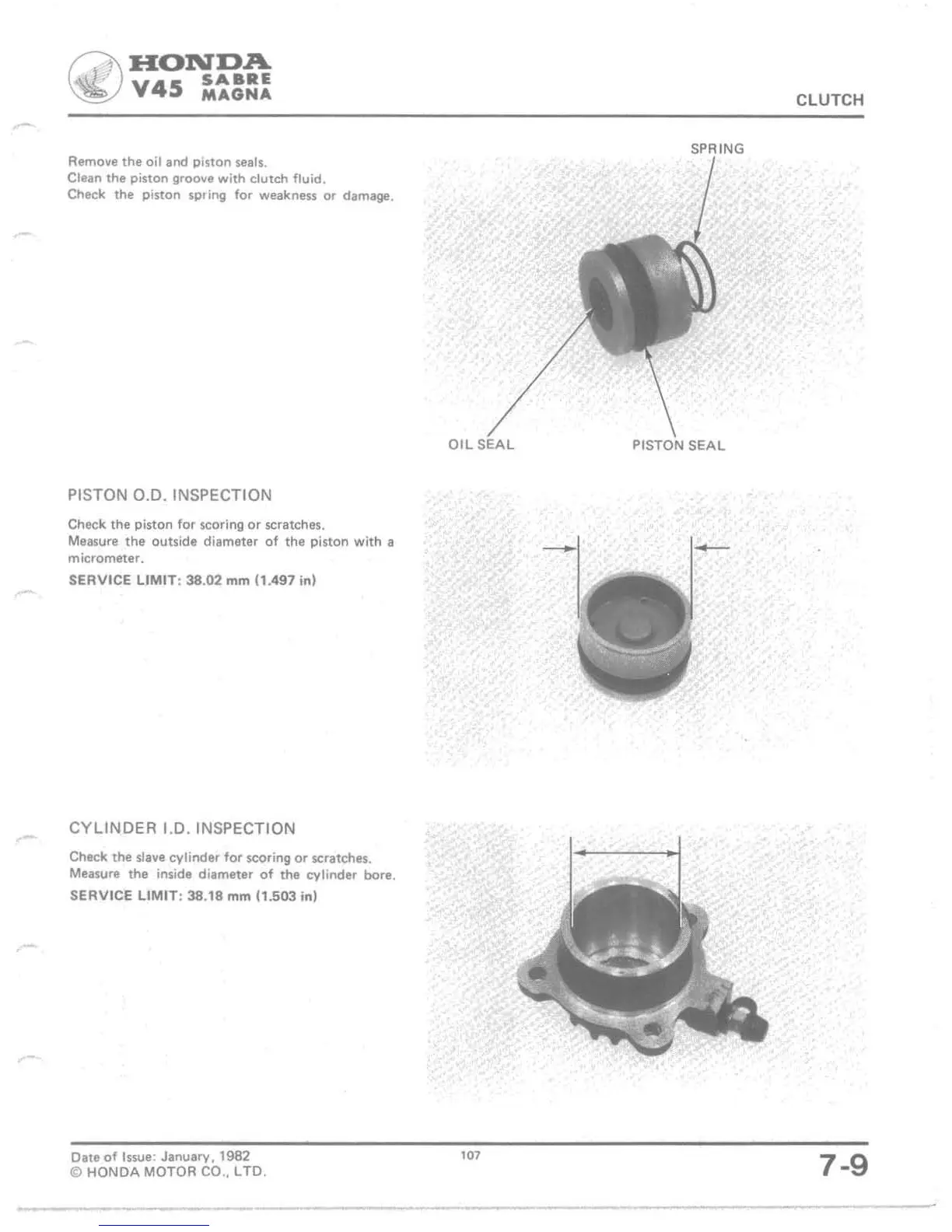

Remove the oil ,nd pi ston seals.
Cleln the piston groove with clutch fluid .
Check the pi ston spring for weakness or damage.
PISTON 0.0. I NSPEC TI ON
Check the piston for scoring or sc ratches.
Measure the outside diameter of t he piston wi th a
micrometer.
SER VI CE LIMIT : 38.02 mm (1.497 in)
CYLIN DER 1. 0. I NSP ECTION
Check the slive cylinder for scor in g or seratches.
Measure the inside diilmeter of the CVlinder bore.
SE RVICE LIMIT: 38.18 mm 1' . 503 i nJ
Oat. of InuI : Janulrv . 1982
C> HONDA MOTOR CO., LTD.
OILSE'"
107
- ----
--- -- - ... -
CLUTCH
IN G
7-9
-
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
