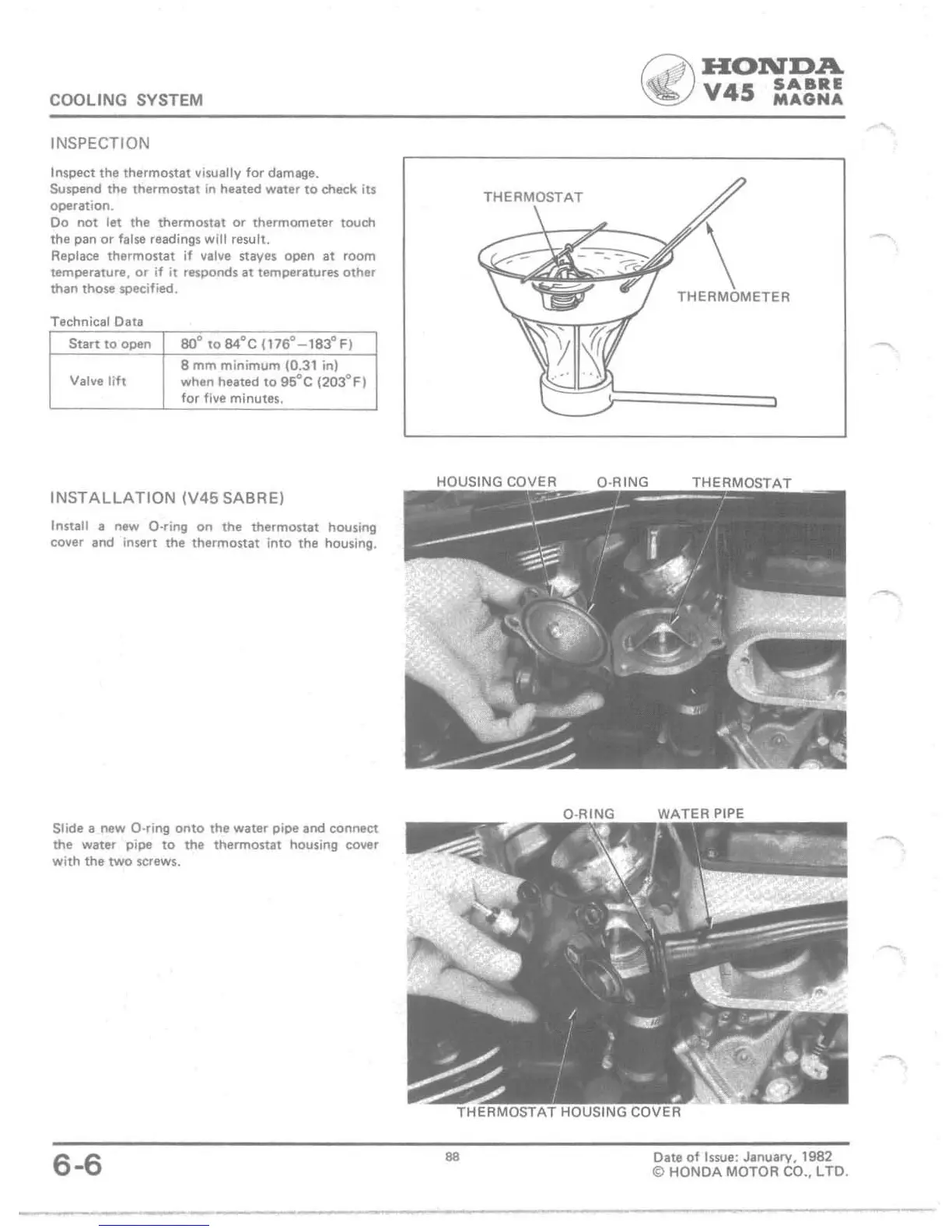

COOLING SYSTEM
INSPECTION
Inspect the thermostat visually for damage.
Suspend the thermostat in heated water to check its
operation.
Do not let the thermostat or thermometer touch
the pan or false readings will result.
Replace
thermostat if valve stayes open at room
temperature,
or if it responds at temperatures other
than those 5Pecified.
TeChnical Oat.
Start to open
SOO to 84
D
C 1176°-183° F)
8 mm minimum (0.31 in)
Valve lift
when hleated to 95°C (203°F)
for five minutes.
INSTALLATION IV45 SABRE)
Install I new O-ring on the thermostat housing
cover and Insert the thermostat into the housing.
Slide a new O-ring onto the wilter pipe and connect
the water pipe to tne thermostat housing cover
with the two screws.
6-6
..
•
•
Q\ HON'DA
~ V45 ~~:::
Dltlof Issue: January. 1982
© HONDA MOTOR CO., l TO .
.--.
-

Honda V45 MAGNA-VF750C 1982 Specifications

General

Bore x Stroke	70.0 mm x 48.6 mm
Compression Ratio	10.5:1
Cooling System	Liquid cooled
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brakes	Dual disc
Rear Brakes	Drum
Rear Tire	130/90-16
Seat Height	765 mm (30.1 inches)
Fuel System	4 x 32mm Keihin carburetors
