800-13897 - A - 01/2013
Alarm Settings | 71

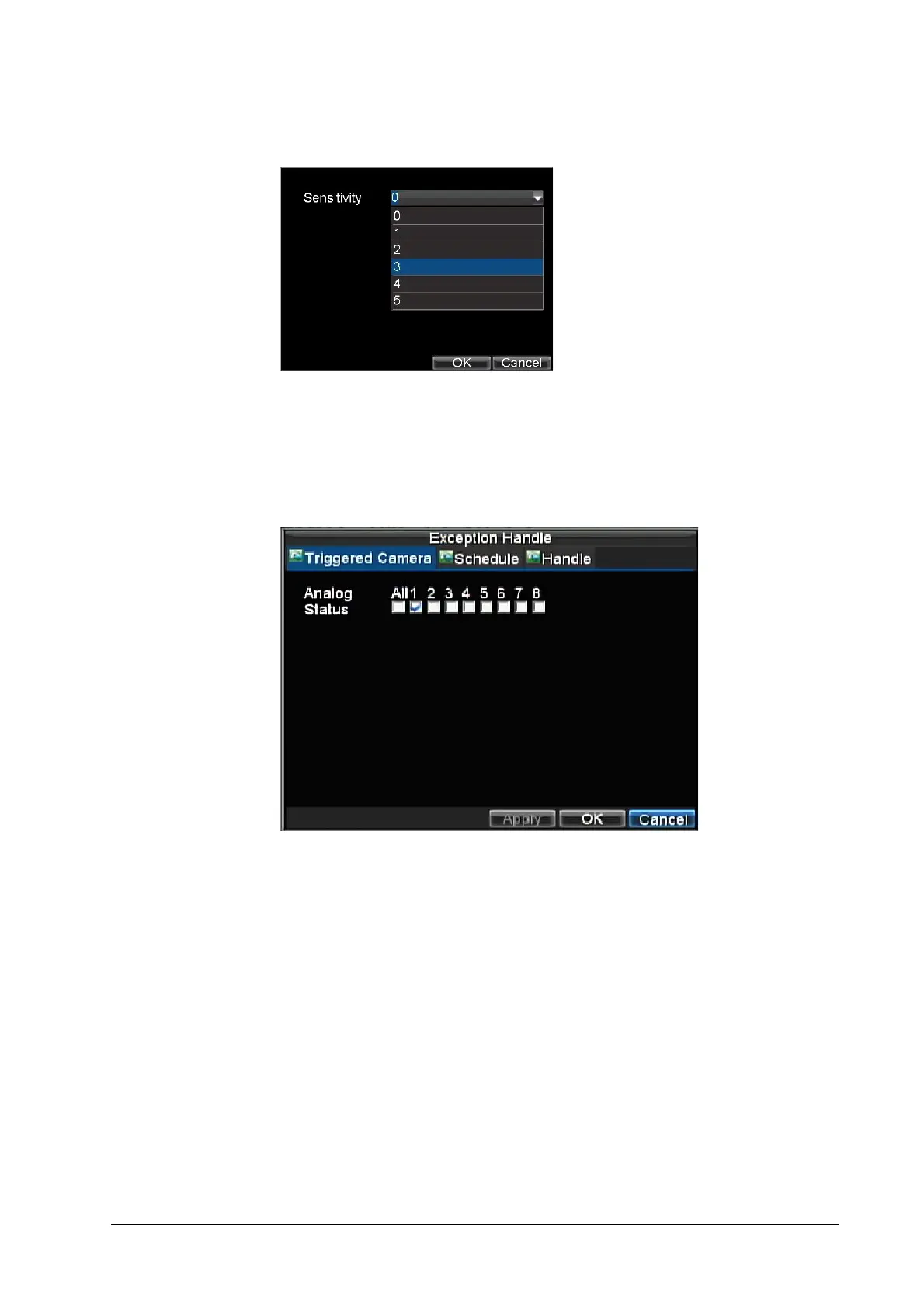

Figure 7-4 Motion Detection Sensitivity Settings
6. Click OK to return to the Motion Detection Area Settings interface.
7. Right-click anywhere in the window, and then click Exit to return to the Advanced Camera
Settings menu.
8. Click Handle to enter the Exception Handle menu (see Figure 7-5).
Figure 7-5 Exception Handle Menu
9. Select cameras to trigger for recording when motion is detected by selecting the check
boxes under the desired cameras.
10. Select the Schedule tab to set when you want motion detection to be enabled (see
Figure 7-6). The schedule can be set for all week or any day of the week, with up to eight
time periods per day.
