800-13897 - A - 01/2013
PTZ Control | 95
3. In the Patrol Management menu, you can configure a patrol:
a. Select a Patrol Number to set.
b. Select valid presets (See Customizing Presets), and then click Set to enter the Patrol
Configuration menu. A sequence should have at least two valid presets.
c. Set the KeyPoint No., Duration, and Speed (see Figure 9-6).
The KeyPoint Number determines the order the PTZ will follow when cycling through
the patrol. The Duration refers to the time span to stay at the corresponding keypoint.
The Speed defines the rate at which the PTZ will move to the current preset.

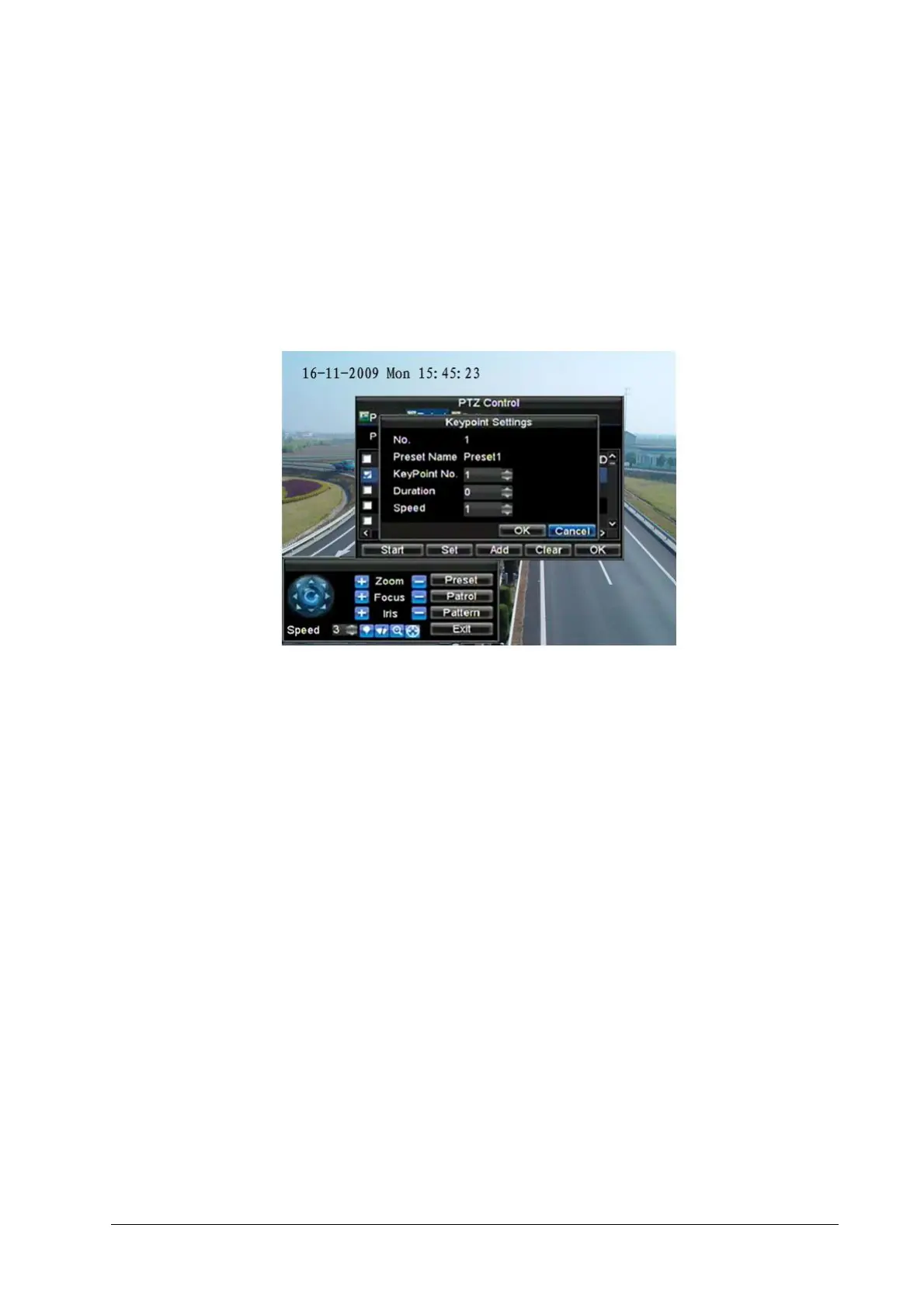

Figure 9-6 Patrol Configuration Menu
4. Click OK to return to the Patrol Management menu and repeat step 2 and step 3 to
configure other keypoints.
5. After all keypoints have been configured, click the defined KeyPoint Number, and then
click Add to complete the setting.
6. Click OK to save the settings and exit the current menu.
To clear a PTZ patrol:
1. In the Patrol Management menu (Figure 9-5), select a valid Patrol Number.
2. Click Clear to delete the patrol.
To call a PTZ patrol:
1. In the Patrol Management menu (Figure 9-5), select a valid Patrol Number.
2. Click Start to call the patrol, and then click Stop to stop the patrol (see Figure 9-7).
