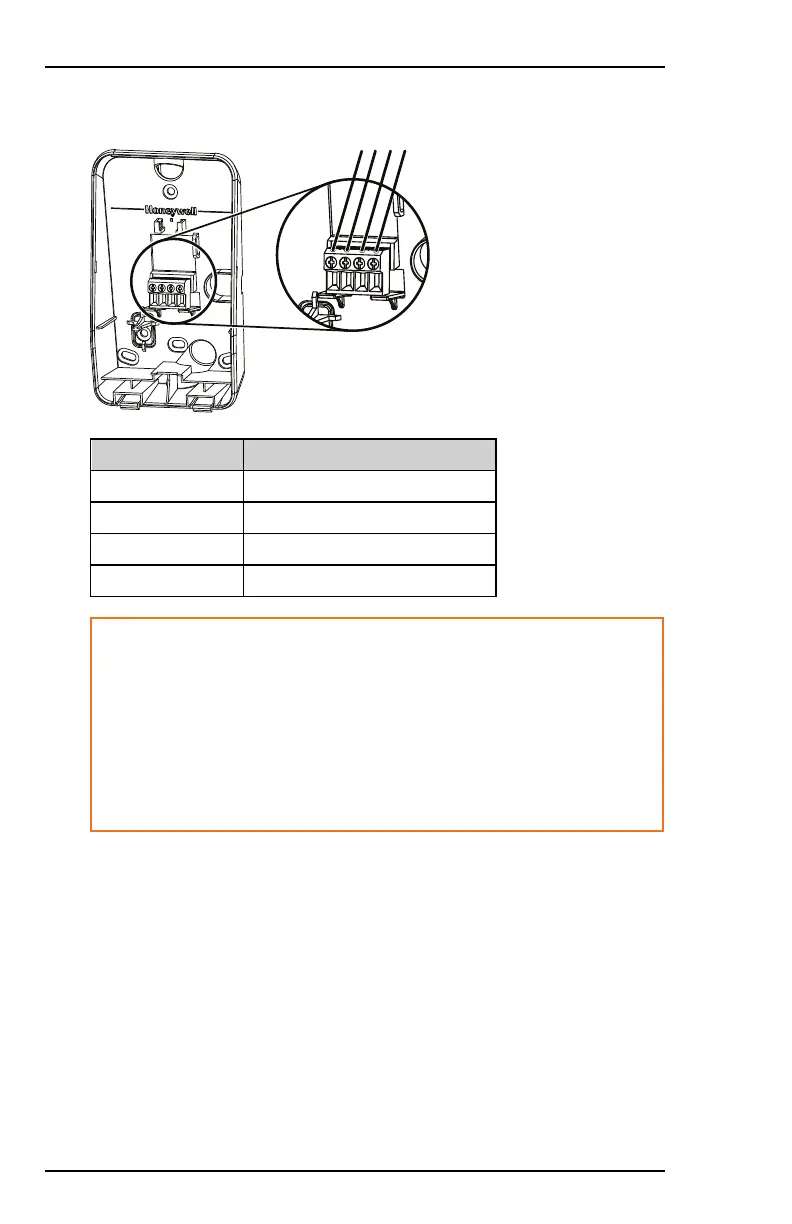

7. Connect the keypad to the desired IB2 bus (I/S on page34) on the
control panel. Wiring from bus to control panel is as follows:
D C – +
IB2
Keypad terminal To IB2 bus on Control Panel
– –
+ +12V
C C
D D

Caution!
If you are using two CAT5E cables for incoming and outgoing
wiring through the narrower wiring openings, the cables may
get crushed. This may damage the wiring andcause system
malfunctions. In this case, strip off the cables' outer covers so
that only the cores are entering the enclosure. As an
alternative, you can use (thinner) standard alarm cables for
wiring.
8. Use cable ties to bundle and fix wiring. The PCB holder has various
attachments point for this purpose.
9. Click the lid back in place, and fix it using the small lid screw(G).
