NetAXS™ NX4L1 Installation Guide
Installation
NetAXS™ NX4L1 Access Control Unit Installation Guide, Document 7-901099V3 23
4.3 Cabinet Mounting
The following five figures show the back, top, bottom, right, and left views of the NetAXS panel
cabinet. Each view includes the dimensions and knockout placement that you will need to mount the
cabinet. See Table 1 on page 27 for dimensions of the conduit entries into the cabinet.

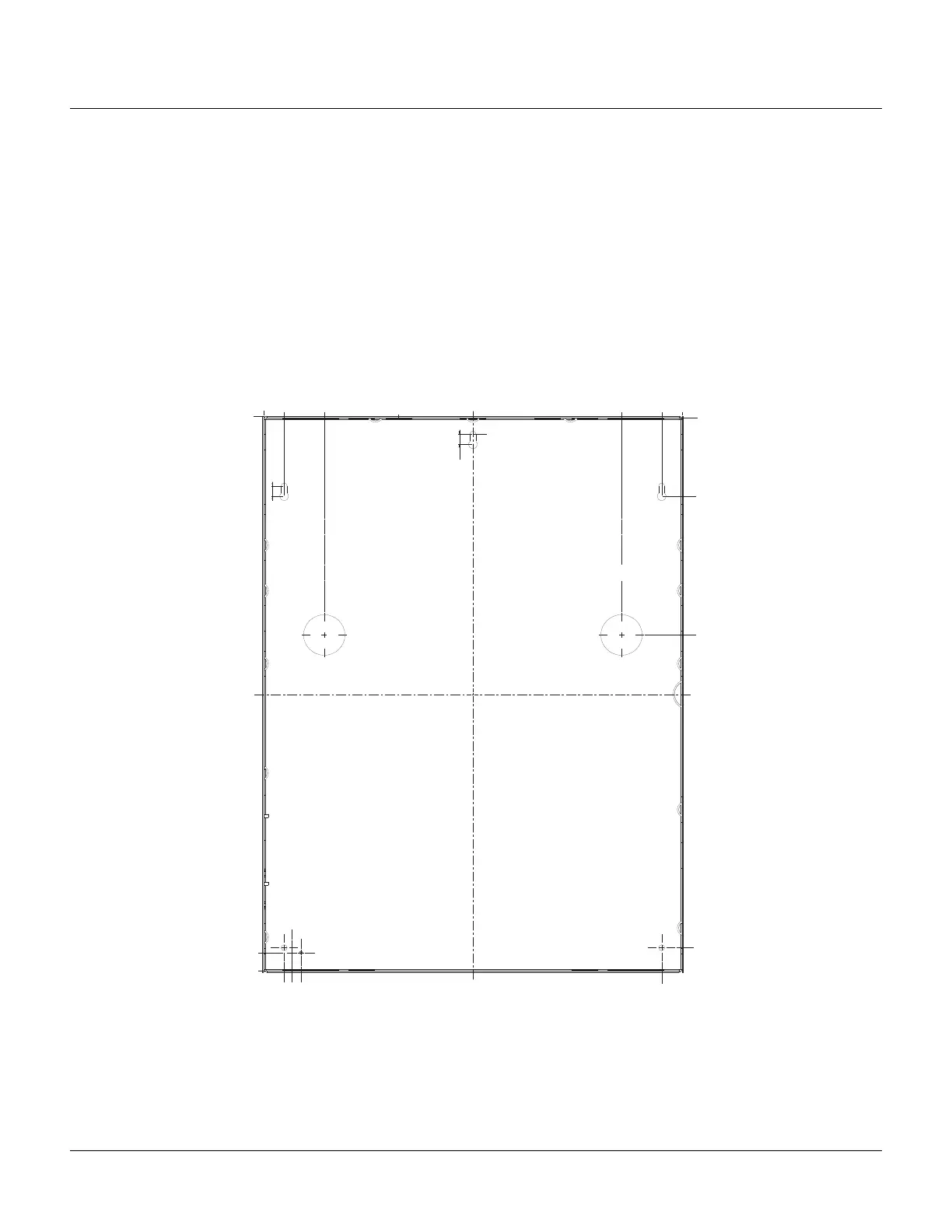

Figure 3: NetAXS Panel Cabinet, Back View
0
0
3 13/32"
(86.51 mm)
9 3/8"
(238.50 mm)
22 29/32"
(581.6 mm)
27/32" (21.8 mm)
8 27/32" (225 mm)
15 5/32" (385 mm)
16 27/32" (428.2 mm)
17 23/32" (450 mm)
2 9/16" (65 mm)
23/32" (18 mm)
15/32" (11.51 mm)
15/32" (11.51 mm)
0
23 1/8" (587 mm)
23 29/32" (607 mm)
27/32" (21.8 mm)
16 5/32" (410 mm)
16 17/32" (420 mm)
16 27/32" (428.2 mm)
