NetAXS™ NX4L1 Installation Guide
System Configuration
NetAXS™ NX4L1 Access Control Unit Installation Guide, Document 7-901099V3 47
5.5 Ethernet Connection
This connection supports a maximum of 255 IP connections per server. It has not been approved
by UL.

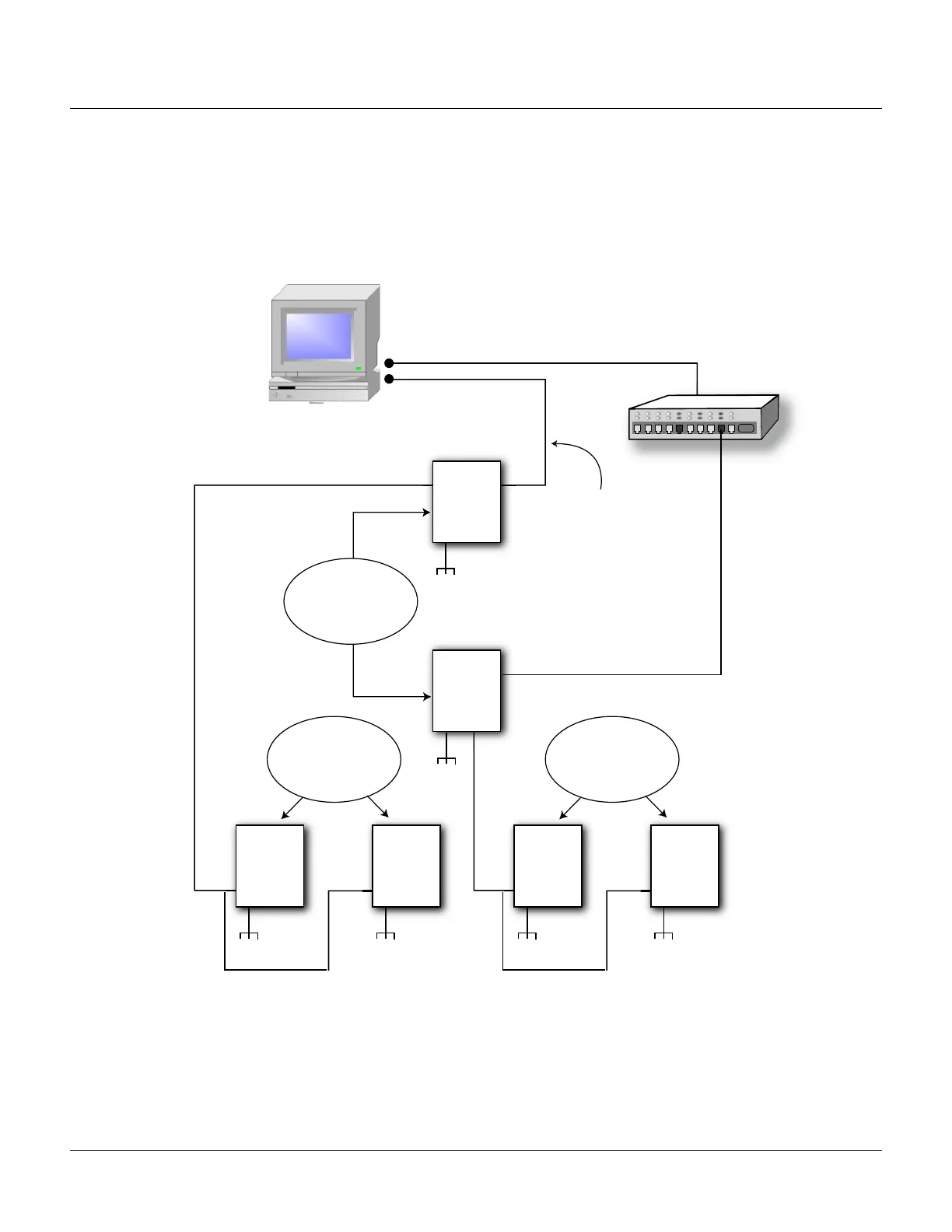

Figure 23: Ethernet Connection
NIC
NIC
NetAXS
Panel
It is recommended to
Earth Ground (EG)
each NetAXS
enclosure individually
HUB/SWITCH
100BaseT (CAT5)
328 ft. max.
Crossover Cable
100BaseT (CAT5) 328 ft. max.
100BaseT (CAT5) 328 ft. max.
HUB/SWITCH
HUB/SWITC
NetAXS
Panel
EG
EG
DIP Switch Settings
S1-S5 Panel Address
S6: ON: Gateway
NetAXS
Panel
EG
NetAXS
Panel
EG
DIP Switch Settings
S1-S5 Panel Address
S6: OFF
NetAXS
Panel
EG
NetAXS
Panel
EG
DIP Switch Settings
S1-S5 Panel Address
S6: OFF
RS-485 Multidrop
RS-485 Multidrop
Terminal
