NetAXS™ NX4L1 Installation Guide
Installation

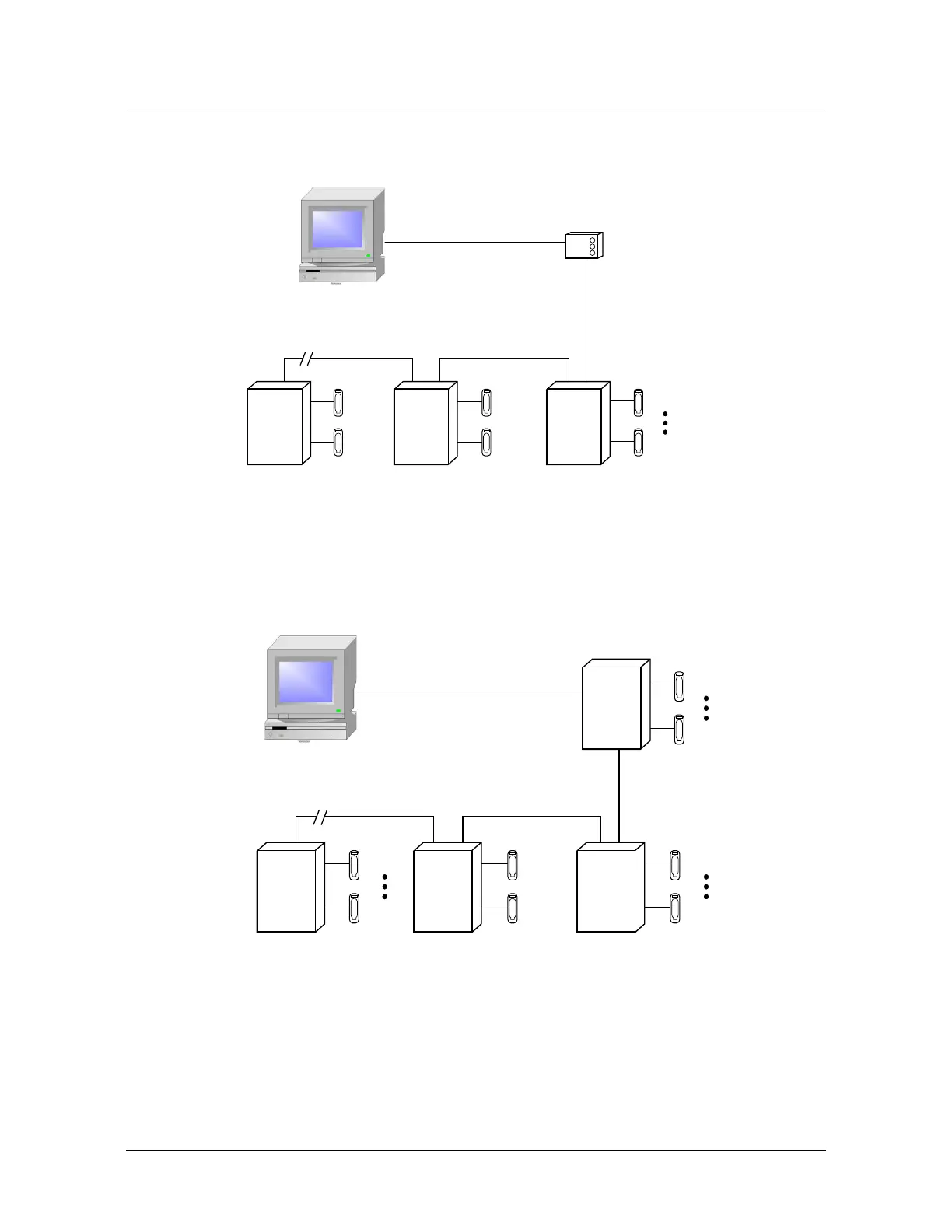

Figure 12: RS-485 Configuration via N-485-PCI-2 or PCI-3
Figure 13: RS-485 Configuration via NetAXS Gateway
NetAXS
Panel
NS2+
Panel
COM1
N1000 III
N1000 IV
RS-485 Multidrop Line
N-485-PCI-2/3
A combination of N1000 III, N1000 IV, NS2+ and NewAXS
panels, supporting a total of 31 panels per multidrop line
Terminal
NetAXS
NetAXS
Gateway
NS2+
COM1
NetAXS
RS-485 Multidrop Line
A combination of NetAXS and NS2+ panels, supporting a total
of 31 panels per multidrop line
Terminal
