NetAXS™ NX4L1 Installation Guide
Installation
NetAXS™ NX4L1 Access Control Unit Installation Guide, Document 7-901099V3 41
The following figure shows the default downstream I/O system configuration with communication and
power wiring.

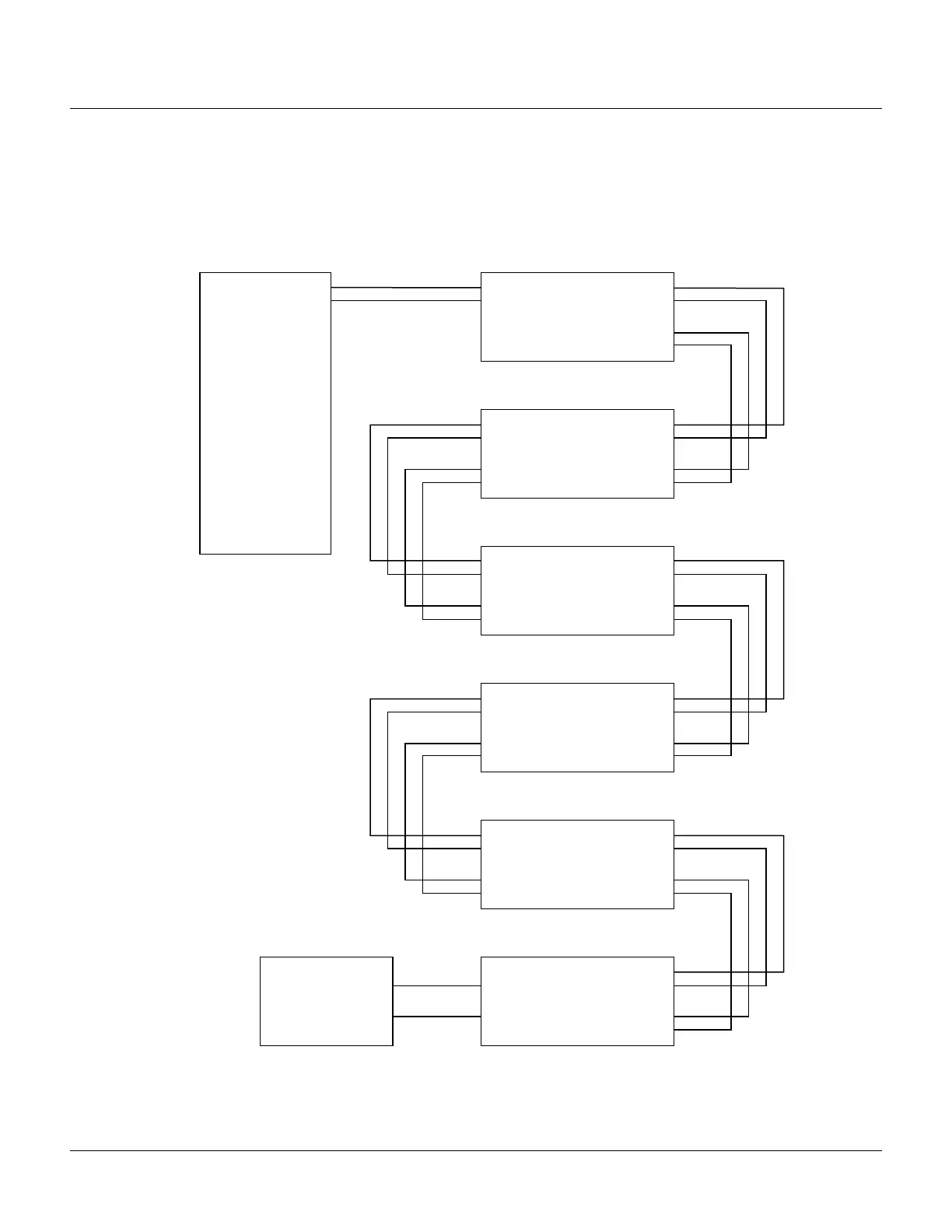

Figure 17: Default Downstream I/O Configuration with Wiring
TB10-3
TB10-2
TB3-2
TB3-3
TB3-7
TB3-8
TB3-1
TB3-4
TB3-6
TB3-9
TB3-2
TB3-3
TB3-7
TB3-8
TB3-1
TB3-4
TB3-6
TB3-9
TB5-2
TB5-3
TB5-7
TB5-8
TB5-1
TB5-4
TB5-6
TB5-9
TB5-2
TB5-3
TB5-7
TB5-8
TB5-1
TB5-4
TB5-6
TB5-9
TB5-2
TB5-3
TB5-7
TB5-8
TB5-1
TB5-4
TB5-6
TB5-9
TB5-1
TB5-7
TB5-8
TB5-4 TB5-6
TB5-9
EXTERNAL
24 VDC POWER
SUPPLY
NETAXS
PANEL
NX4IN
JP1 = OFF
ADDRESS = 1
NX4IN
JP1 = OFF
ADDRESS = 2
NX4OUT
JP1 = OFF
ADDRESS = 3
NX4OUT
JP1 = OFF
ADDRESS = 4
NX4OUT
JP1 = OFF
ADDRESS = 5
NX4OUT
JP1 = OFF
ADDRESS = 6
DEFAULT DOWNSTREAM I/O SYSTEM
CONFIGURATION WITH COMMUNICATION
AND POWER WIRING
RS-485 A
RS-485 B
RS-485 A
RS-485 B
RS-485 A
RS-485 B
RS-485 A
RS-485 B
RS-485 A
RS-485 B
RS-485 A
RS-485 B
+24 VDC
24 VDC RET
+24 VDC
24 VDC RET
+24 VDC
24 VDC RET
+24 VDC
24 VDC RET
+24 VDC
24 VDC RET
+24 VDC
24 V RETURN
