NetAXS™ NX4L1 Installation Guide
System Configuration
5.6 LANSRLU1 Connection
This connection supports 31 panels for each drop line and a maximum of 255 IP connections. It has not
been approved by UL.

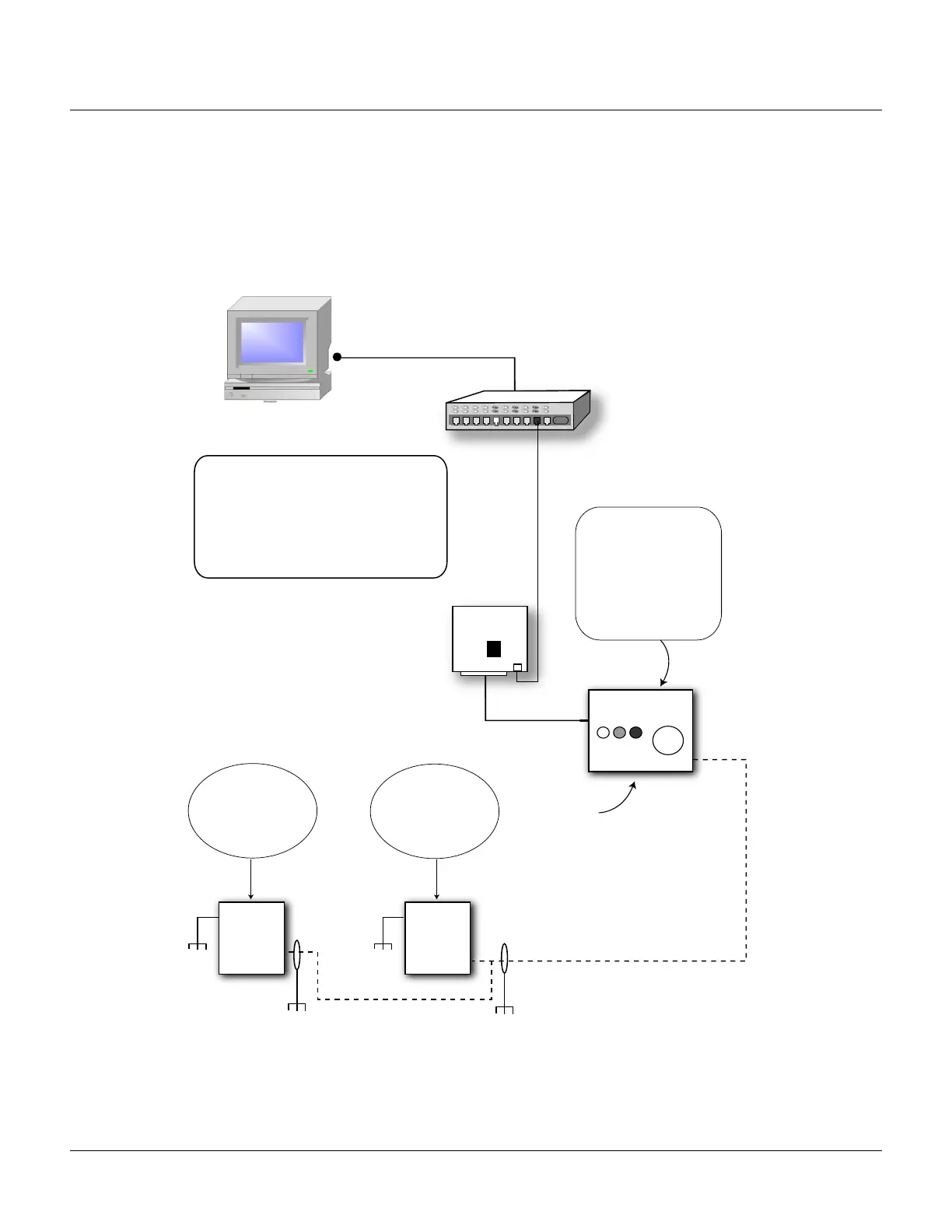

Figure 24: LANSRLU1 Connection
HUB/SWITCH
HUB/SWITCH
C
NIC
NetAXS
Panel
NetAXS
Panel
EGEG
EG
DIP Switch Settings
S1: ON
S2: ON
S3: ON
S4: ON
S5: ON
S6: ON (Ack/Nak ON)
S7: ON
S8: OFF (19,200 Baud
Rate)
DIP Switch Settings
S1-S5 Panel Address
S6: OFF
J36: CLOSED
J37: CLOSED
DIP Switch Settings
S1-S5 Panel Address
S6: OFF
J36: OPEN
J37: OPEN
It is recommended to Earth Ground (EG)
each NetAXS enclosure individually
Refer to
485-PCI-2 /
NetAXS Panel
Connection
Detail diagram
Only Earth Ground (EG)
one side of cable
N-485-PCI-2
100BaseT
(CAT5)
328 ft. max.
LANSRLU1
RJ-45
RS-232 (50 ft.)
EG
See RS-485 Cable Note
HUB/SWITCH
RS-485 Cable
RS485 NetAXS Panels
Red/White
Black/Green
RS-485 COM
TB7-1 (RS485+)
TB7-2 (RS485-)
TB7-3 (RS485 COM)
4,000 ft. (1,200 m) max, 24 AWG, 2 twisted pairs with
shield, 120 ohm, 23 pf (HAS part no. NCP2441-TN)
HUB/SWITC
Terminal
