NetAXS™ NX4L1 Installation Guide
System Configuration
5.4 RS-232 Connection
This connection supports one NetAXS Access Controller panel for each COM port. It has been
approved by UL. However, because UL has approved the NetAXS panel only as a standalone system,
the computer terminal and NetAXS gateway panel appear in this section only to illustrate the
installation and programming of the NetAXS panel.

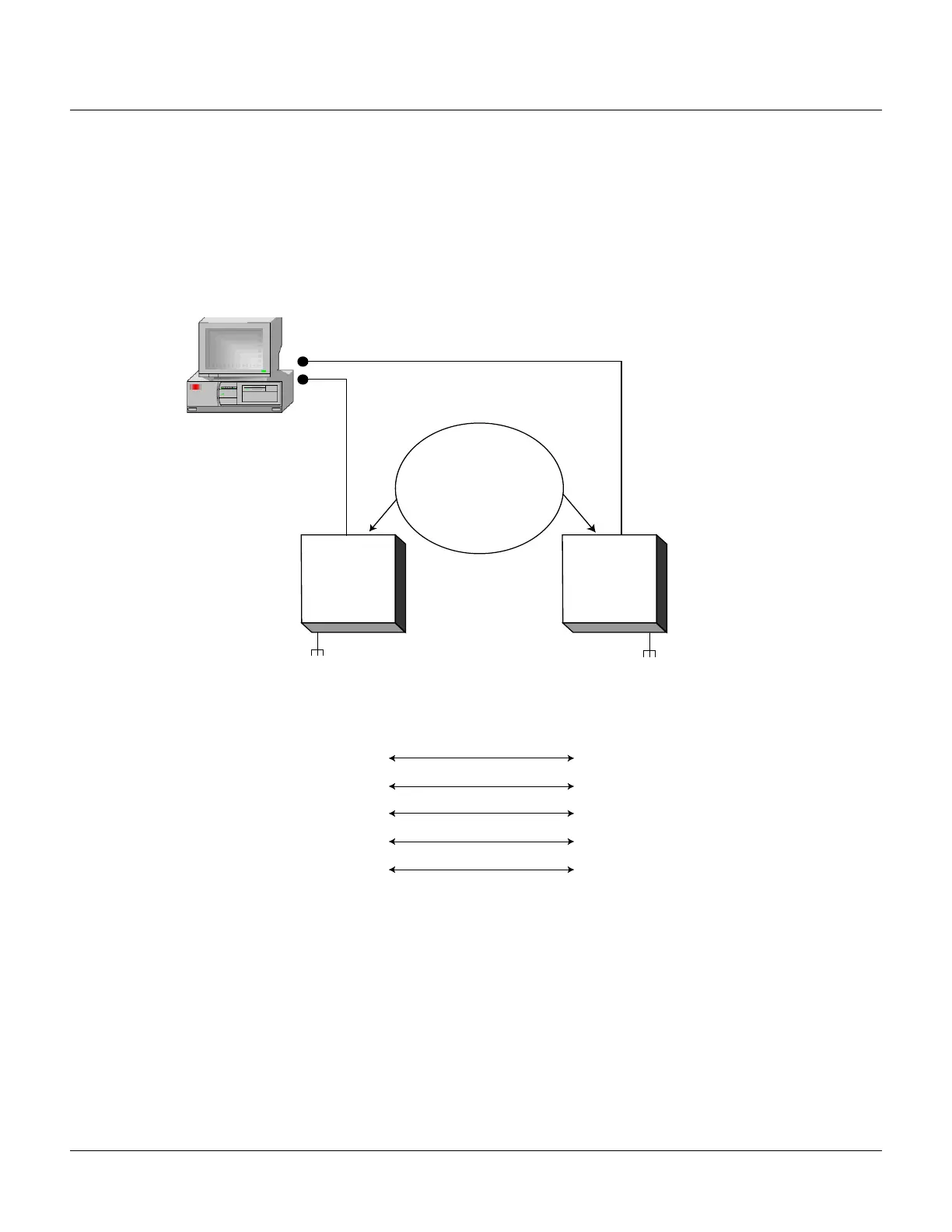

Figure 22: RS-232 Connection
CBL50 (RS-232) 50 ft. max.
CBL50
(RS-232)
50 ft. max.
DIP Switch Settings
S1 - S5: Panel
Address
NetAXS
Panel
NetAXS
Panel
It is recommended to Earth Ground (EG)
each NetAXS enclosure individually
Request To Send (RTS)
Signal Ground (GND)
Receive Data (RXD)
Transmit Data (TXD)
Clear To Send (CTS)
CBL50 (RS-232)
RS-232 RJ-45
(DB9)
8 2
5 3
2 4
3 5
7 7
9-Pin COM 1 or COM 2 to RJ-45 on NetAXS Panel
Terminal
EG
EG
