NetAXS™ NX4L1 Access Control Unit Installation Guide, Document 7-901099V3 35
Ethernet TCP/IP Communications

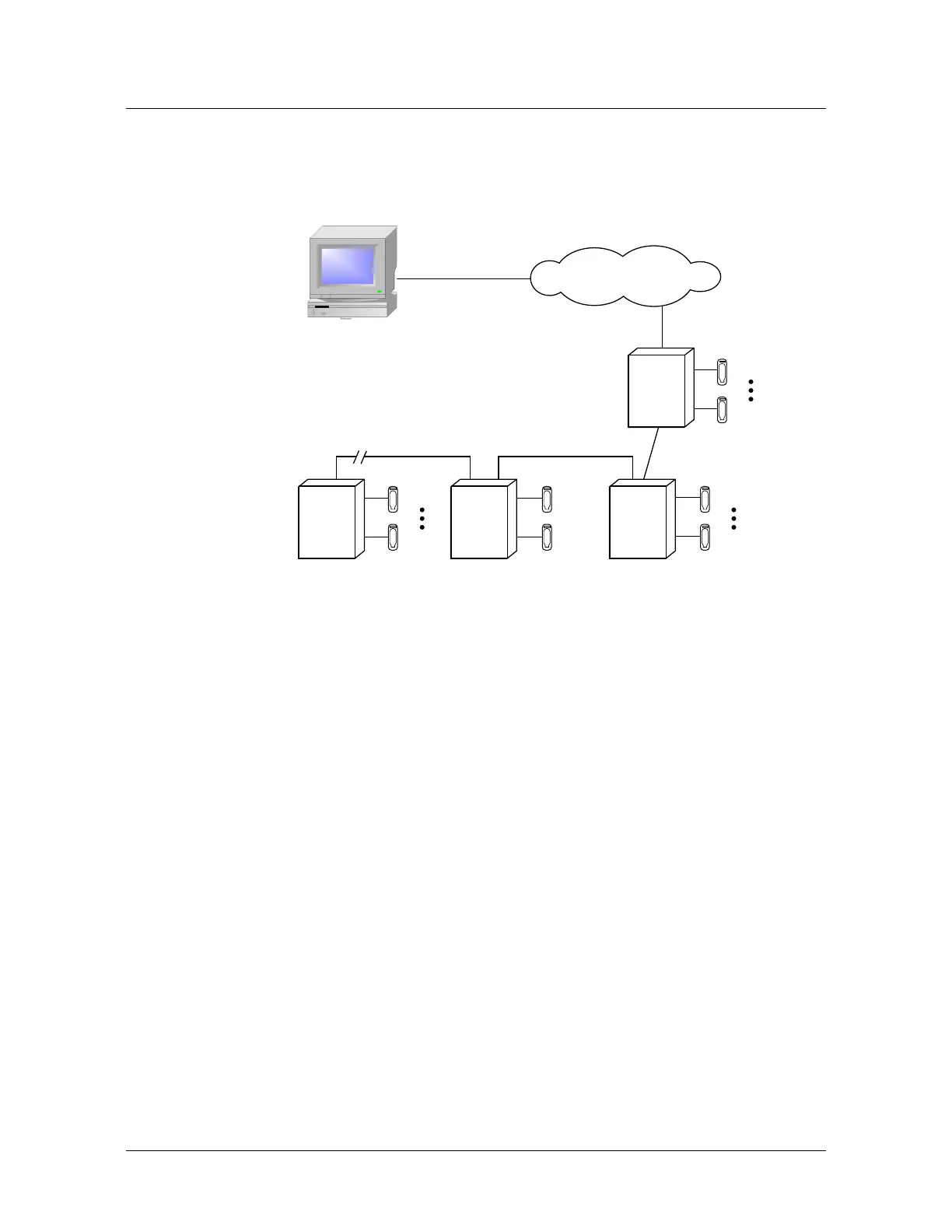

Figure 14: Ethernet TCP/IP Configuration
Each NetAXS panel has a port for an Ethernet TCP/IP interface (see Figure 14,
Ethernet TCP/IP Configuration). The Ethernet TCP/IP interface provides 10/100 Mbit
Ethernet support for each panel. Up to 31 panels can be configured on each TCP/IP
connection.
NetAXS
NetAXS
Gateway
NS2+NetAXS
RS-485 Multidrop Line
A combination of NetAXS and NS2+ panels, supporting a total
of 31 panels per multidrop line
Ethernet
Up to 255 TCP/IP Connections per System
Network Interface
Card Inside PC
Ethernet
10/100
Terminal
