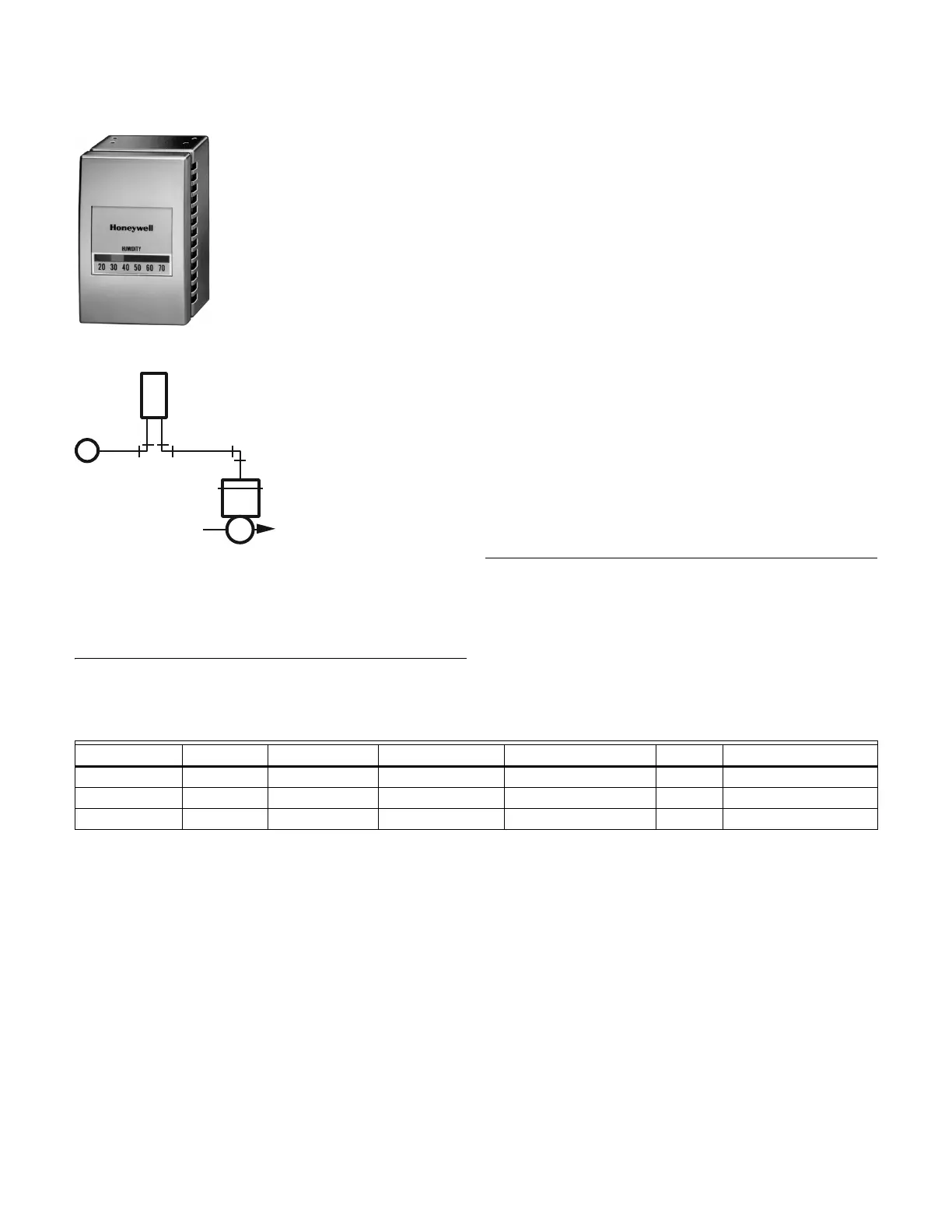

HP970 Pneumatic Humidistat
Two-pipe, single setpoint, pneumatic humidistat used to provide
proportional control of pneumatic valves on humidification or
dehumidification systems.
• Durable HP970 series humidistat.
• Pilot operated for high capacity.
• Direct Acting (DA) and Reverse Acting (RA) models are available.
• Vertical or horizontal mounting.
• Backplate has molded air connections; no separate fittings needed.
• Variety of cover finishes and display styles available.
HP970 Typical Piping
Application: Humidity
Dimensions, Approximate: 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
(83 mm high x 51 mm wide x 41 mm deep)
Airflow Usage: 0.011 scfm (5.2 mL/s)
Maximum Operating Temperature:
45 F to 125 F (7 C to 52 C)
Maximum Storage Temperature: -30 to +150 F (-34 to +66 C)
Maximum Operating Pressure:
25 psi (170 kPa)
Accessories:
14002362-001 Duct Sampling Chamber
14002374-004 Restrictor Block Assembly,.005 in., For TP970A-D;
TP971A-E except C; TP972A; TP973A-B; TP9600 family; HP970A-B;
and HP972B
14002430-001 Thermostat Guard
14003192-001 Wallplate adapter kit. Adapts HP970 or TP970 series
stats to HP900 and TP900 flush mounted and TP910 series flush or
surface mounted installations
14004406-124 Humidistat Cover assembly Satin Chrome with setpoint
display and Honeywell logo for vertical mounting, scale range 15 to
75% RH
305965 1-1/2 in. diameter, 1/8 NPT center stem back mount Pressure
Indicating gauge (0 to 30 psi scale) with +/- 4% accuracy
AK3863 Honeywell Thermostat Tool Kit, TP970/TP900
CCT729A Gauge Adapter for Calibration. Add 305965 0 to 30 psi
gauge for Complete Tool.
CCT735A Thermostat Calibration Tool includes Allen wrench for cover
installation.
For additional covers, see Humidistat Cover Assemblies
Replacement Parts:
14001865-001 Filter Cartridge Assembly
14002053-001 Back Plate Assembly
14002374-004 Restrictor Block Assembly, 0.005 in., For TP970A-D;
TP971A-E except C; TP972A; TP973A-B; TP9600 family; HP970A-B;
and HP972B
14002573-001 Modernization Kit to convert all 1 & 2 pipe Honeywell &
competitive pneumatic stats to TP970, TP971A, TP972, TP973,
TP974, TP9600 family; HP970, HP971 and HP972
C3225
N.C.
M
M B
HUMIDIFIER
VALVE
SUPPLY
HP972B
Product Number Action Number of Pipes Scale Range (% RH) Throttling Range (% RH) Setpoint Comments
HP970A1009 Direct Acting 2 15 to 75% RH 3 to 15% RH Single Order Cover Separately
HP970B1007 Reverse Acting 2 15 to 75% RH 3 to 15% RH Single Order Cover Separately
HP970B1015 Reverse Acting 2 65 to 95% RH 3 to 15% RH Single Order Cover Separately
