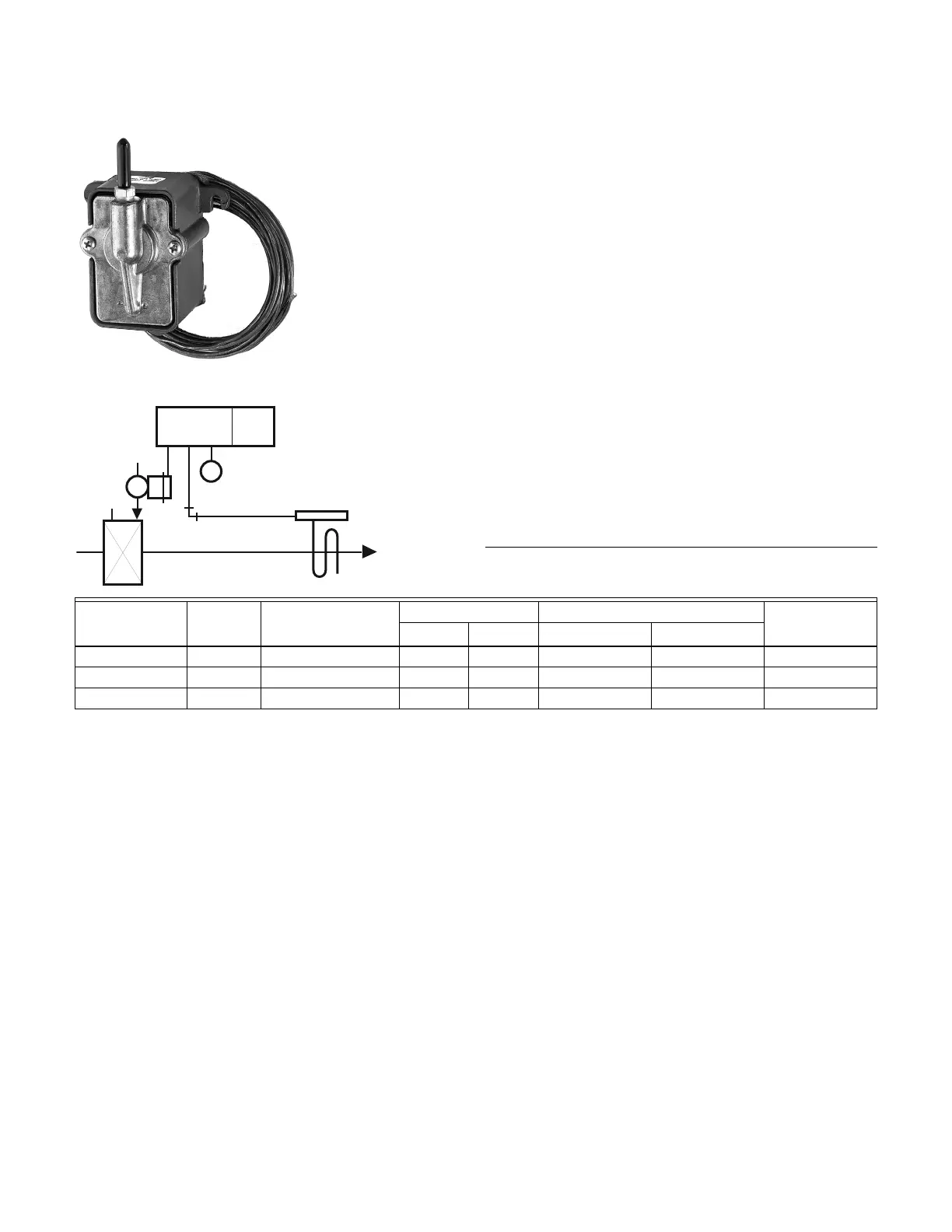

LP915 Pneumatic Temperature Sensor
One-pipe, direct-acting temperature sensor used with RP908/
RP920 Controllers to provide proportional control of pneumatic
valve or damper actuators. Averaging, liquid-filled element for
duct mounting.
• Easily formed into variety of configurations to assure sensing of
average temperatures.
• Continuous temperature indication available by using receiver gage.
LP915A Typical Piping Duct-Mounted Application
Application Type: Temperature Sensor
Dimensions, Approximate: 3 in. high x 1 7/8 in. wide x 1 1/2 in. deep
(76 mm high x 44 mm wide x 33 mm deep)
Action: Direct Acting
Airflow Usage: 0.019 scfm (540 sccm)
Connections: Push-on barb for 5/32 in. (4 mm) and 1/4 in. (6 mm) O.D.
tubing
Maximum Operating Temperature:
225 F (118 C)
Maximum Operating Pressure: 25 psi (172 kPa)
Output Pressure Range: 3 psi to 15 psi (21 kPa to 103 kPa)
Supply Pressure: 18 psi (124 kPa)
Accessories:
314439 Duct Mounting Clip for Averaging capillary
M
7
5
6
2
3
1
48
9
VALVE
LP915A
RP920
M5566
Product Number
Number of
Pipes Sensor Element
Element Length Temperature Sensing Range
Mounting(ft) (m) (F) (C)
LP915A1044 1 Liquid-filled 18 1/2 ft 5.6m 0 F to 200 F -18 C to +93 C Duct mount
LP915A1051 1 Liquid-filled 8 7/8 ft 2.7m 0 F to 200 F -18 C to +93 C Duct mount
LP915A1077 1 Liquid-filled 18 1/2 ft 5.6m 25 F to 125 F -4 C to +52 C Duct mount
