Honeywell Pneumatic Controls User Manual

Valve Actuator
88 customer.honeywell.com 70-6925

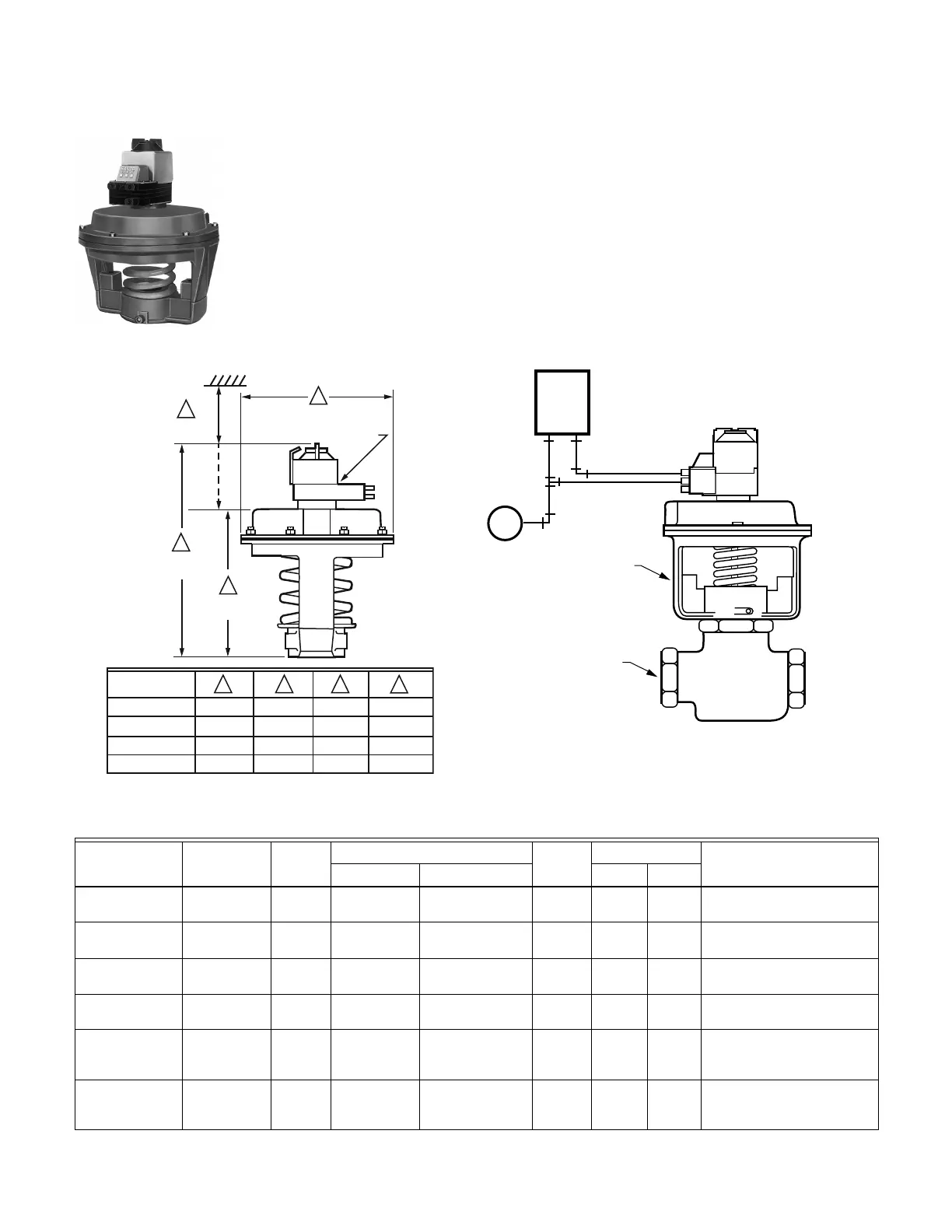

MP953E, F Pneumatic Coil Valve Actuators
Pneumatic actuators provide proportional control of steam or hot
or cold liquids in HVAC systems by operating V5011, V5013, and
VGF valve assemblies. Replacement devices are available for
older Honeywell actuators.
• Rolling diaphragm for long life and low hysteresis.
• Easily attached to valve.
• Can be installed after piping valve.
• Slide lock feature permits simple engagement to valve stem.
• Direct- or reverse-action control.
• Integral positive positioner relay provides positive positioning under
varying load conditions.
Dimensions in inches (millimeters) Typical Piping for MP953E,F Pneumatic Valve Actuator Wiring
Actuator Type: Valve
Fail Safe Mode: Spring Return
Air Connections: Pilot: Barbed fitting for 5/32 in. O.D. plastic tubing
Main: Barbed fitting for 1/4 in. O.D. plastic tubing
Temperature Range:
0 F to 140 F (-18 C to +60 C)
Maximum Operating Pressure: 25 psi (172 kPa)
Humidity Range: 5 to 95% RH
2
4
3
MP953E &
MP953F
MP953C &
MP953D
POSITIONER
ON MP953E AND
MP953F ONLY
MINIMUM
CLEARANCE
1 2 3
4
OPERATION SIZE
NOMINAL DIA.
5 INCH
7-1/8 INCH
8 INCH
13 INCH
5-1/8 (130)
7-1/8 (181)
8-1/4 (210)
13-1/2 (343)
9-1/4 (235)
10-1/2 (267)
11-1/8 (283)
18-1/8 (460)
4-5/8 (117)
5-5/8 (143)
6-1/2 (165)
10 (254)
4-3/8 (111)
4-3/8 (111)
5-3/8 (137)
7-11/16 (195)
1
M13903
M
B
M
M5445A
PILOT
MP953
DA
VALVE
THERMOSTAT
POSITIONER
Product Number Action
Actuator
Force
Spring Range
Diameter
(in.)
Stroke
Includes(psi) (kPa) (inch) (mm)
MP953E1285 Direct Acting Medium 4 psi to 11 psi 28 kPa to 76 kPa 8 in. 1 1/2 in. 38 mm
Positive Positioner with 5 psi
(35 kPa) range
MP953E1301 Direct Acting Low 4 psi to 11 psi 28 kPa to 76 kPa 5 in. 3/4 in. 19 mm
Positive Positioner with 3 psi
range (21kPa)
MP953E1319 Direct Acting Low 4 psi to 11 psi 28 kPa to 76 kPa 5 in. 3/4 in. 19 mm
Positive Positioner with 5 psi
range (35 kPa)
MP953E1327 Direct Acting Low 4 psi to 11 psi 28 kPa to 76 kPa 5 in. 3/4 in. 19 mm
Positive Positioner with 10 psi
range (70 kPa)
MP953E1368 Direct Acting Medium 4 psi to 11 psi 28 kPa to 76 kPa 8 in. 3/4 in. 19 mm
311851-062 Stem Extension
Assembly and Positive
Positioner with 3 psi range
MP953E1376 Direct Acting Medium 4 psi to 11 psi 28 kPa to 76 kPa 8 in. 3/4 in. 19 mm
311851-062 Stem Extension
Assembly and Positive
Positioner with 5 psi range
