Valves
96 customer.honeywell.com 70-6925

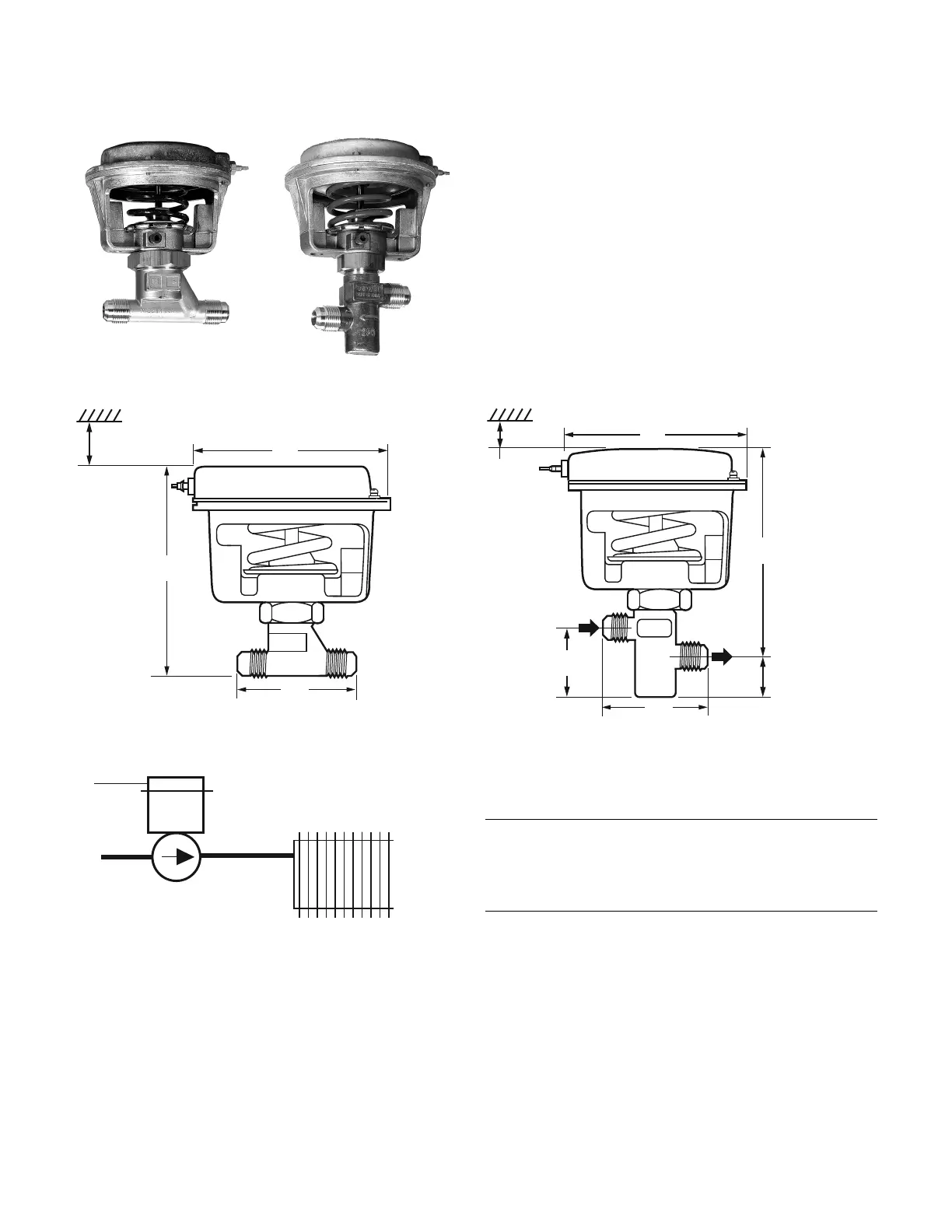

VP513 Pneumatic Water Valve
Single-seated, straight-through, pneumatic valves used for
proportional control of unit air conditioners using hot and/or
chilled water. Replacement devices are available for Johnson,
Powers, Robertshaw, Barber-Colman, and older Honeywell
devices.
• Available in normally-open (A models) or normally-closed models (B
models).
• Straight-through pattern.
• Rotating actuator for aligning air connection with control air piping.
• Molded replaceable composition disc for tight shut-off.
• Flare tube connections.
• Small physical size.
Dimensions in inches (millimeters) Dimensions in inches (millimeters)
VP513 Typical Piping Diagram
Valve Type: Unitary
Body Pressure: 250 psi (1724 kPa)
Air Connections: 1/8 in. NPT
Controlled Medium: Water
Type of End Connection: 45 deg. SAE flare
Operating Humidity Range (% RH): 5 to 95% RH
Temperature Range: 35 F to 250 F (2 C to 121 C)
Maximum Actuator Temperature: 160 F (71 C)
Maximum Diaphragm Pressure: 25 psi (172 kPa)
Replacement Parts:
14002734-002 Lubricant, packing, AMOCO H-100
310143 Black Packing, 3 required
310135 Packing Spring, 1 Required
312760 MP953A,C,E (5 in. diameter) regular temperature Neoprene
diaphragm - new style
Accessories:
312817T Actuator assembly, 3 to 10 psi, 21 to 69 kPa, and 1/2 in.
stroke.
312817U Actuator Assembly, 3 to 7 psi, 21 to 48 kPa, and 1/2 in. stroke.
312817V Actuator Assembly, 8 to 12 psi, 55 to 83 kPa, and 1/2 in.
stroke.
5-11/16
(144)
5-1/8
(130)
M27110
4-1/2
(114)
4 (102) CLEARANCE
REQUIRED TO
REMOVE ACTUATOR
5-3/4
(146)
5-1/8
(130)
M27111
3-1/2
(89)
3-3/8 (86)
MINIMUM
APPROXIMATE
CLEARANCE
REQUIRED TO
REMOVE
ACTUATOR
IN
OUT
1-1/8
(29)
2
(51)
M5443
VP513A
HOT
WATER
CONTROL
AIR
N.O.
COIL
