MP953C,D Pneumatic Coil Valve Actuators
Pneumatic actuators provide proportional control of steam or hot
or cold liquids in HVAC systems by operating V5011, V5013, and
VGF valve assemblies. Replacement devices are available for
older Honeywell actuators.
• Rolling diaphragm for long life and low hysteresis.
• Easily attached to valve.
• Can be installed after piping valve.
• Slide lock feature permits simple engagement to valve stem.
• Direct- or reverse-action control.
• Does not include positive positioner.

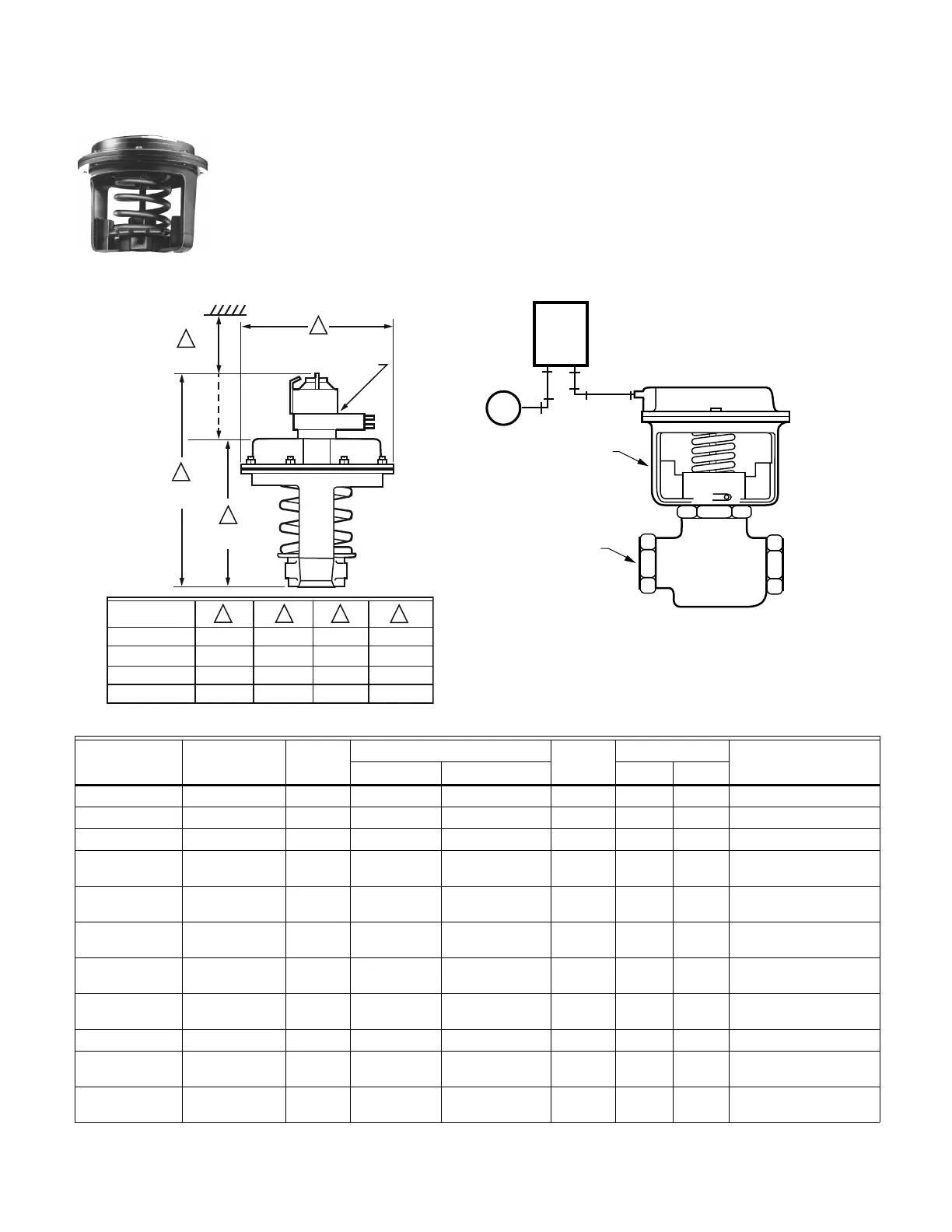

Dimensions in inches (millimeters) Typical MP953C,D Operation
Actuator Type: Valve
Fail Safe Mode: Spring Return
Air Connections: Dual barbed fitting for 5/32 in. O.D. and 1/4 in. O.D.
plastic tubing
Temperature Range:
0 F to 140 F (-18 C to +60 C)
Maximum Operating Pressure: 25 psi (172 kPa)
Humidity Range: 5 to 95% RH
2
4
3
MP953E &
MP953F
MP953C &
MP953D
POSITIONER
ON MP953E AND
MP953F ONLY
MINIMUM
CLEARANCE
1 2 3
4
OPERATION SIZE
NOMINAL DIA.
5 INCH
7-1/8 INCH
8 INCH
13 INCH
5-1/8 (130)
7-1/8 (181)
8-1/4 (210)
13-1/2 (343)
9-1/4 (235)
10-1/2 (267)
11-1/8 (283)
18-1/8 (460)
4-5/8 (117)
5-5/8 (143)
6-1/2 (165)
10 (254)
4-3/8 (111)
4-3/8 (111)
5-3/8 (137)
7-11/16 (195)
1
M13903
M
B
M
M18957
DIRECT
ACTING
MP953
VALVE
THERMOSTAT
Product Number Action
Actuator
Force
Spring Range
Diameter
(in.)
Stroke
Includes(psi) (kPa) (inch) (mm)
MP953C1000 Direct Acting Low 2 psi to 7 psi 14 kPa to 48 kPa 5 in. 3/4 in. 19 mm
—
MP953C1018 Direct Acting Low 8 psi to 12 psi 55 kPa to 83 kPa 5 in. 3/4 in. 19 mm
—
MP953C1026 Direct Acting Low 4 psi to 11 psi 28 kPa to 76 kPa 5 in. 3/4 in. 19 mm
—
MP953C1067 Direct Acting Medium 2 psi to 7 psi 14 kPa to 48 kPa 8 in. 3/4 in. 19 mm
311851-062 Stem
Extension Assembly
MP953C1075 Direct Acting Medium 8 psi to 12 psi 55 kPa to 83 kPa 8 in. 3/4 in. 19 mm
311851-062 Stem
Extension Assembly
MP953C1083 Direct Acting Medium 4 psi to 11 psi 28 kPa to 76 kPa 8 in. 3/4 in. 19 mm
311851-062 Stem
Extension Assembly
MP953C1471 Direct Acting High 2 psi to 7 psi 14 kPa to 48 kPa 13 in. 1 1/2 in. 38 mm
312466-605 Stem
Extension Assembly
MP953C1489 Direct Acting High 4 psi to 11 psi 28 kPa to 76 kPa 13 in. 1 1/2 in. 38 mm
312466-605 Stem
Extension Assembly
MP953C1547 Direct Acting Medium 3 psi to 15 psi 21 kPa to 104 kPa 8 in. 1 1/2 in. 38 mm
—
MP953C1554 Direct Acting High 2 psi to 7 psi 14 kPa to 48 kPa 13 in. 3/4 in. 19 mm
14004697-001 Stem
Extension Assembly
MP953C1562 Direct Acting High 4 psi to 11 psi 28 kPa to 76 kPa 13 in. 3/4 in. 19 mm
14004697-001 Stem
Extension Assembly
