Honeywell Pneumatic Controls User Manual

Valves
106 customer.honeywell.com 70-6925

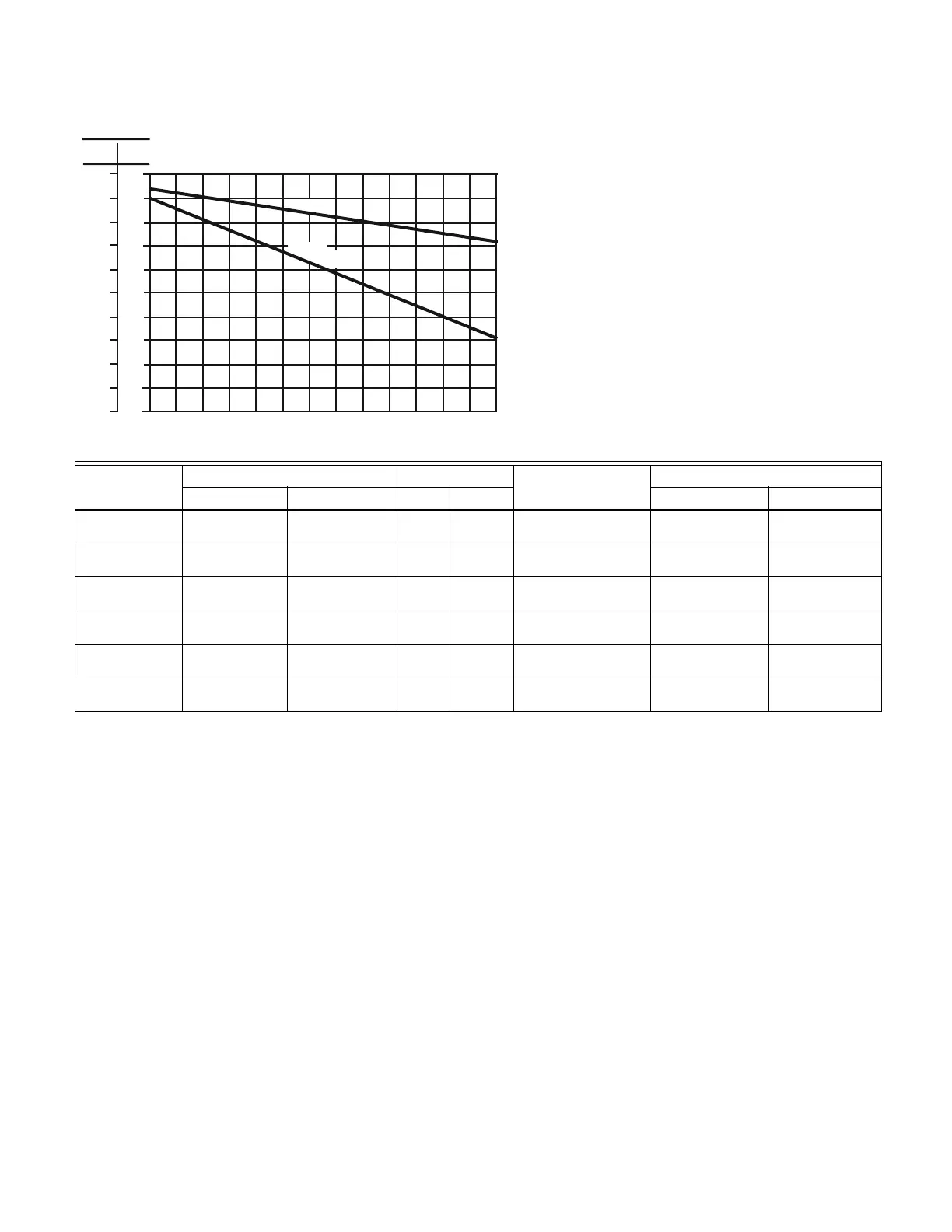

Close-off Ratings vs. Control Air Pressure
Product Number
End Connection Size Capacity
Close-off Ratings at
Branchline Pressure
Spring Range
(inch) (mm) (Cv) (Kv) (psi) (kPa)
VP527A1018 O.D.: 1/2 in.;
Nominal: 3/8 in.
O.D.: 12.7 mm;
Nominal: 9.5 mm
0.63 Cv 0.54 Kv 130 psid at 13 psi 3 psi to 10 psi 21 kPa to 69 kPa
VP527A1026 O.D.: 1/2 in.;
Nominal: 3/8 in.
O.D.: 12.7 mm;
Nominal: 9.5 mm
1.0 Cv 0.86 Kv 45 psid at 13 psi 3 psi to 10 psi 21 kPa to 69 kPa
VP527A1034 O.D.: 1/2 in.;
Nominal: 3/8 in.
O.D.: 12.7 mm;
Nominal: 9.5 mm
1.6 Cv 1.38 Kv 45 psid at 13 psi 3 psi to 10 psi 21 kPa to 69 kPa
VP527A1059 O.D.: 1/2 in.;
Nominal: 3/8 in.
O.D.: 12.7 mm;
Nominal: 9.5 mm
0.63 Cv 0.54 Kv 130 psid at 8 psi 2 psi to 5 psi 14 kPa to 34 kPa
VP527A1067 O.D.: 1/2 in.;
Nominal: 3/8 in.
O.D.: 12.7 mm;
Nominal: 9.5 mm
1.0 Cv 0.86 Kv 45 psid at 8 psi 2 psi to 5 psi 14 kPa to 34 kPa
VP527A1075 O.D.: 1/2 in.;
Nominal: 3/8 in.
O.D.: 12.7 mm;
Nominal: 9.5 mm
1.6 Cv 1.38 Kv 45 psid at 8 psi 2 psi to 5 psi 14 kPa to 34 kPa
2-5
(14-35)
14
(97)
15
(103)
16
(110)
11
(76)
12
(83)
13
(90)
AIR PRESSURE IN ACTUATOR PSI (kPa)
11
(76)
10
(69)
9
(62)
8
(55)
7
(49)
17
(117)
0
(0)
30
(205)
50
(345)
70
(480)
90
(620)
20
(140)
40
(275)
60
(415)
80
(550)
100
(690)
CLOSE OFF PRESSURE RATINGS PSI (kPa)
12
(83)
3-10
(21-69)
10
(70)
SPRING RANGE
PSI (kPa)
110
(760)
120
(825)
130
(895)
13
(90)
14
(97)
15
(103)
M3636
10
(69)
6
(42)
5
(35)
Cv = 0.63
Cv = 1.0 & 1.6
