Honeywell XLS140 - Installing and Configuring Keltron Printer

52 XLS140 Installation Manual Form Number 95-7673-3 P/N 51927:C 12/06/2005
Installation Installing Remote Printers and/or CRT
Setting Printer Options
Refer to the documentation supplied with the PRN series printer for instructions on using the
printer menu controls. Set the printer options (under the menu area) according to the settings listed
in Table 3.5.
3.14.3 Installing and Configuring a Keltron Printer
Connect the remote printer to the Control Panel as follows:
1. Connect the three (3) open leads of the custom cable to the TB14 terminal block on the control
panel as shown in Figure 3.27.
2. Connect DC power from TB7 terminal block on the control panel as shown in Figure 3.27.
3. Plug the DB-25 connector end of the custom cable into the EIA-232 port of the Keltron printer.
Tighten securely.
TB14 TB15
PRINTER
TX RX REF
PC/CRT
TX RX REF
Note: Outputs are
power-limited but
are not supervised.
nfs640-prn5conn.cdr
DB-25 connector
on PRN series
printer (female
socket shown)
Control Panel
Terminate one end of
shield at backbox

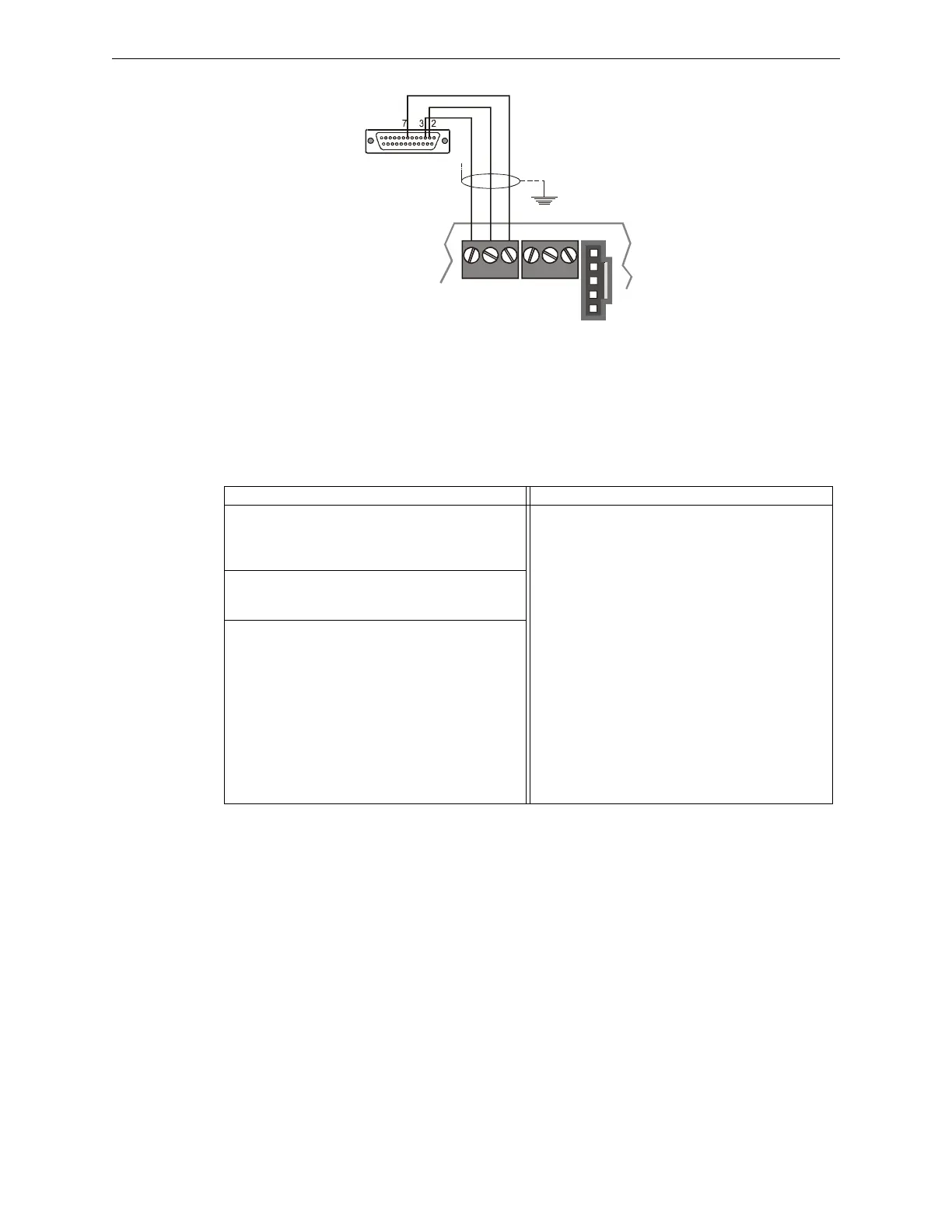

Figure 3.26 Remote Printer Connections
Option Setting Option Setting
Font
LPI
ESC Character
Bidirectional Copy
HS Draft
6 LPI
ESC
ON
CPI
Skip
Emulate
I/O
Buffer
Serial
Baud
Format
Protocol
Character Set
Sl.Zero
Auto LF
PAPER
BIN 1
BIN 2
SINGLE
PUSH TRA
PULL TRA
PAP ROLL
10 CPI
0.5
Epson FX-850
40K
9600 or 2400
7 Bit, Even, 1 Stop
XON/XOFF
Standard
On
Off
12/72"
12/72"
12/72"
12/72"
12/72"
12/72"
CG-TAB
Country
Auto CR
Graphic
E-US ASCII
OFF
Color Option
Formlen
Lines
Standard
Not Installed
6LPI=60
Exec 10.5
Table 3.5 PRN Setup Options
