66 XLS140 Installation Manual Form Number 95-7673-3 P/N 51927:C 12/06/2005
Applications Releasing Applications
4.5.5 Connecting a Releasing Device to the XLS-CM-N/
TC810N1013 Module
The module can control 1 A of current. Make sure to keep total system current within the limits of
the power supply. You can power the module from the power supply of the Control Panel or any
UL 864-listed 24 VDC regulated power-limited power supply for Fire Protective Signaling. For
more information, refer to the Device Compatibility Document.
Circuit Requirements. When connecting a releasing device to the XLS-CM-N/TC810N1013
module, note the following:
1. Refer to the XLS140 Programming Manual for instructions on setting the Soak Timer.
2. For applications using power-limited circuits:
a) Use an in-line supervisory device (P/N REL-47K) with the XLS-CM-N/TC810N1013
module. Connect the in-line supervisory device as shown in Figure 4.6.
b) Program the releasing circuit for Type Code REL CKT ULC.
c) Circuits are supervised against opens and shorts.
3. For applications not requiring power-limited circuits
:
a) in-line supervisory devices (P/N REL-47K) are not required; however, the releasing device
circuit is not supervised against shorts.
b) In non-power-limited applications, program the releasing circuit for Type Code
RELEASE CKT.
+
–
+
–
8
9
8
8
9
9
10
11
12
13
14
150
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
0
1
2
3
4
7
6
5
TENS
ONES
A
DDRESS
LOOP
Compatible UL-listed
24 VDC releasing device
REL-47K
(Use with Type Code
Rel Ckt ULC,
or see Circuit
Requirement 3.)
Brown Red
Non-resettable
24 VDC Power
Power Supervision
Relay (EOLR-1)
Relconn-fcm.cdr
–
+
XLS-CM-N
–
+
SLC from FACP
or LEM-320
Note: See text for circuit requirements.
N.C. Supervision
Relay Contact
Part of EOLR-1
+
–
+
–
8
9
8
8
9
9
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
0
1
2
3
4
7
6
5
TENS
ONES
A
DDRESS
LOOP
Compatible UL-listed
24 VDC releasing device
Brown Red
Non-resettable
24 VDC Power
Power Supervision
Relay (EOLR-1)
Relconn-TC810a.cdr
-
+
TC810N1013
-
+
SLC from FACP
or LEM-320
Note: See text for circuit requirements.
N.C. Supervision
Relay Contact
Part of EOLR-1
REL-47K
(Use with Type Code
Rel Ckt ULC,
or see Circuit
Requirement 3.)

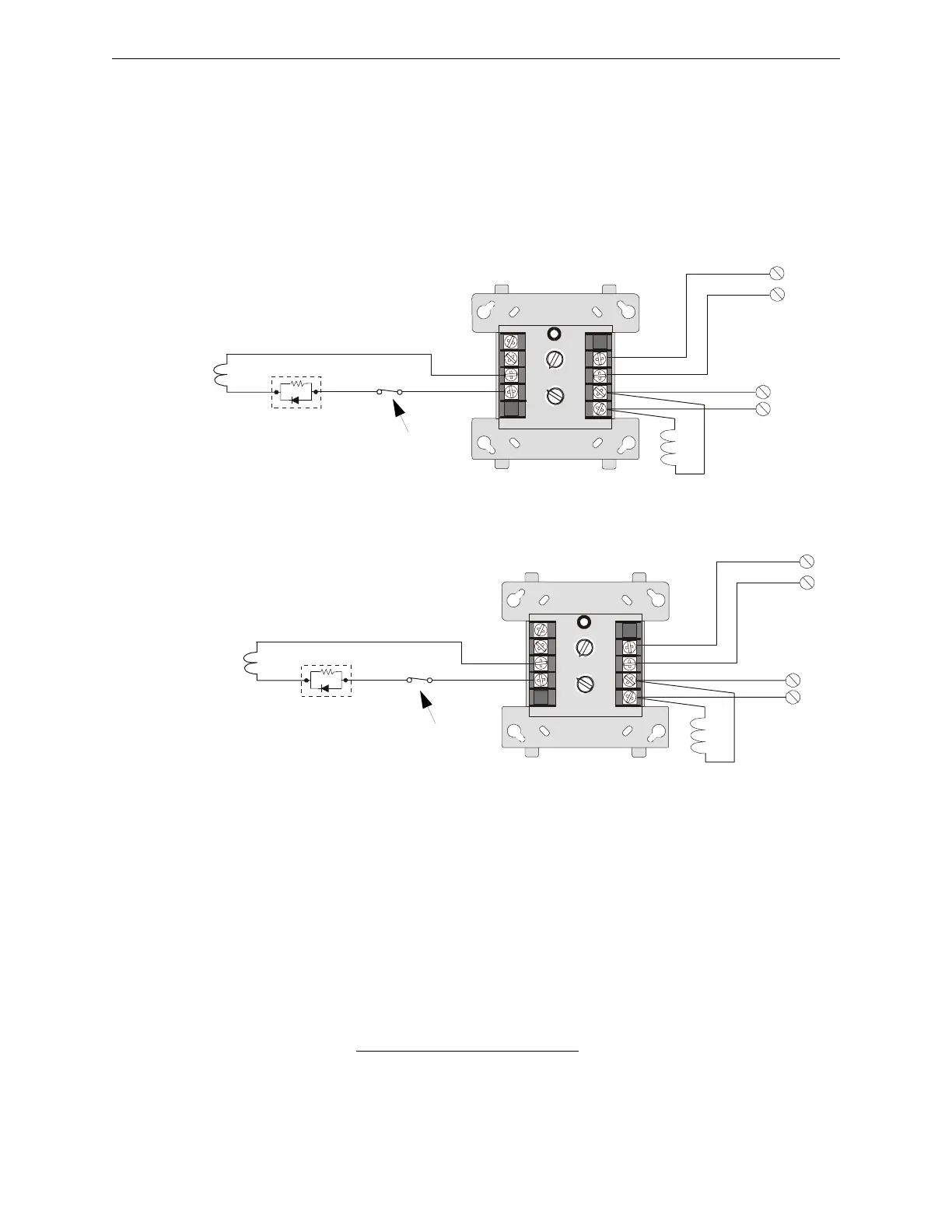

Figure 4.6 Typical Connection of a 24 VDC Releasing Device to XLS-CM-N/TC810N1013 Modules
