XLS140 Installation Manual Form Number 95-7673-3 P/N 51927:C 12/06/2005 35
Installing the Control Panel Installation
3.5.2 Using XLS-NCA as Primary Display
The XLS140 can be set up to use an XLS-NCA instead of a KDM-2. In this system design, connect
the network/service port on the XLS140 (J1) directly to the network/service port on the XLS-NCA
(J3); see the XLS-NCA Manual for specific instructions.
If the XLS140 and XLS-NCA are being used as a stand-alone pair, each device must be
programmed separately using VeriFire Tools in its off-line programming mode. Because the
VeriFire Tools computer also uses the network/service port, XLS140 and XLS-NCA must be
temporarily disconnected for programming. If the XLS140 with XLS-NCA is connected to a
network, there are two additional options for programming: either connect the VeriFire Tools
programming PC to the network port on the NCM board, or program the XLS140 through another
network node. (See VeriFire Tools on-line help for details.)

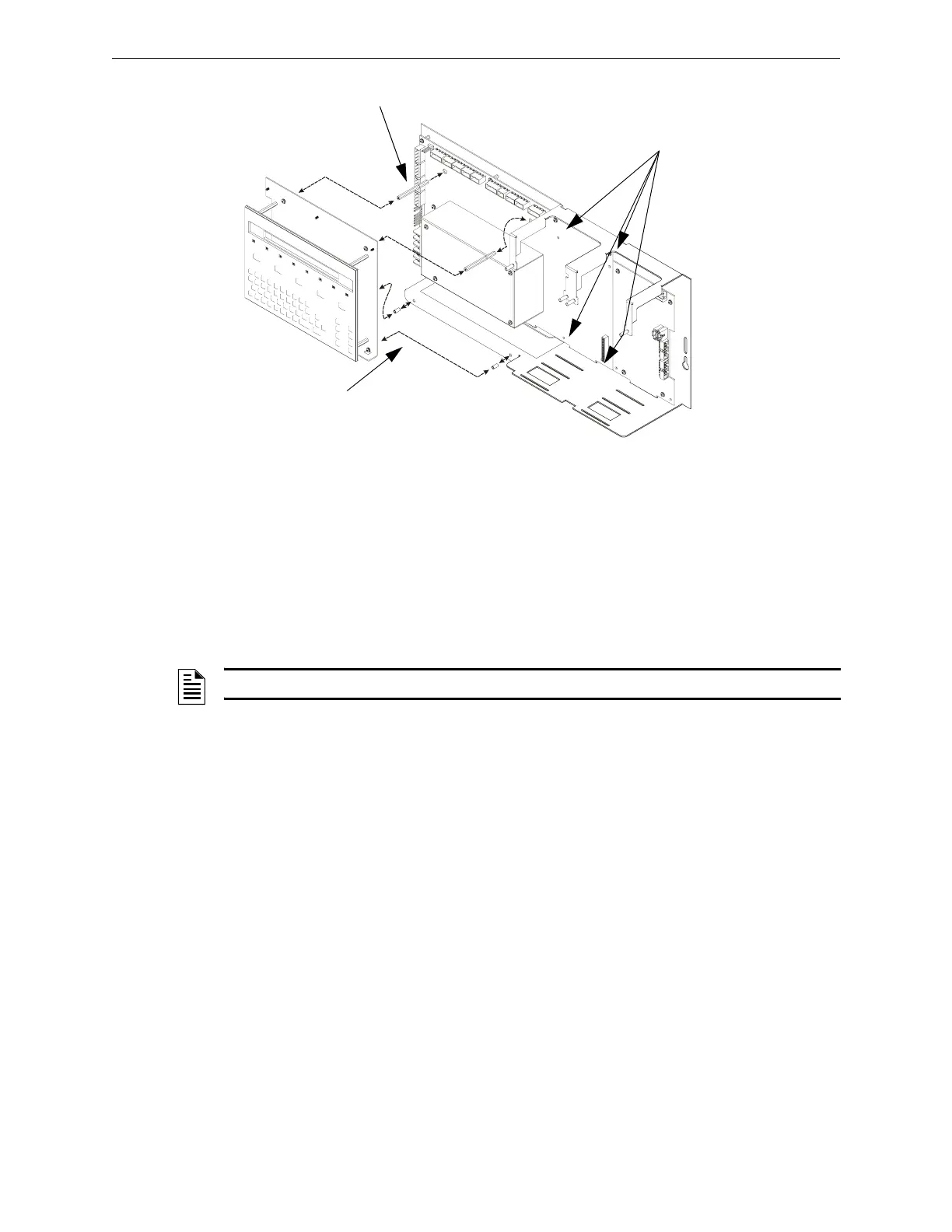

Stack of two male-female stand-offs:
connect P/N 42185 (2.0 inch, 50.8 mm)
to P/N 42186 (1.312 inch, 33.33 mm).
Note: If not using this location,
secure these mounting holes
with screws.
Attach two (0.937 inch, 23.8 mm) stand-offs
to chassis rail; screw keypad mounting
plate to the stand-offs.
Lower edge of panel circuit modules slide into chassis slots,
and upper edge mounts onto PEM studs on the chassis flange.
CHS-M2-0604-assy.wmf
Figure 3.4 Locating and Aligning Stand-offs for Keypad/Display and Panel Circuits
(Chassis CHS-M2 shown)
NOTE: This system design is required in Canadian stand-alone applications.
