HP 3600 v2 Series Configuration Guide

165

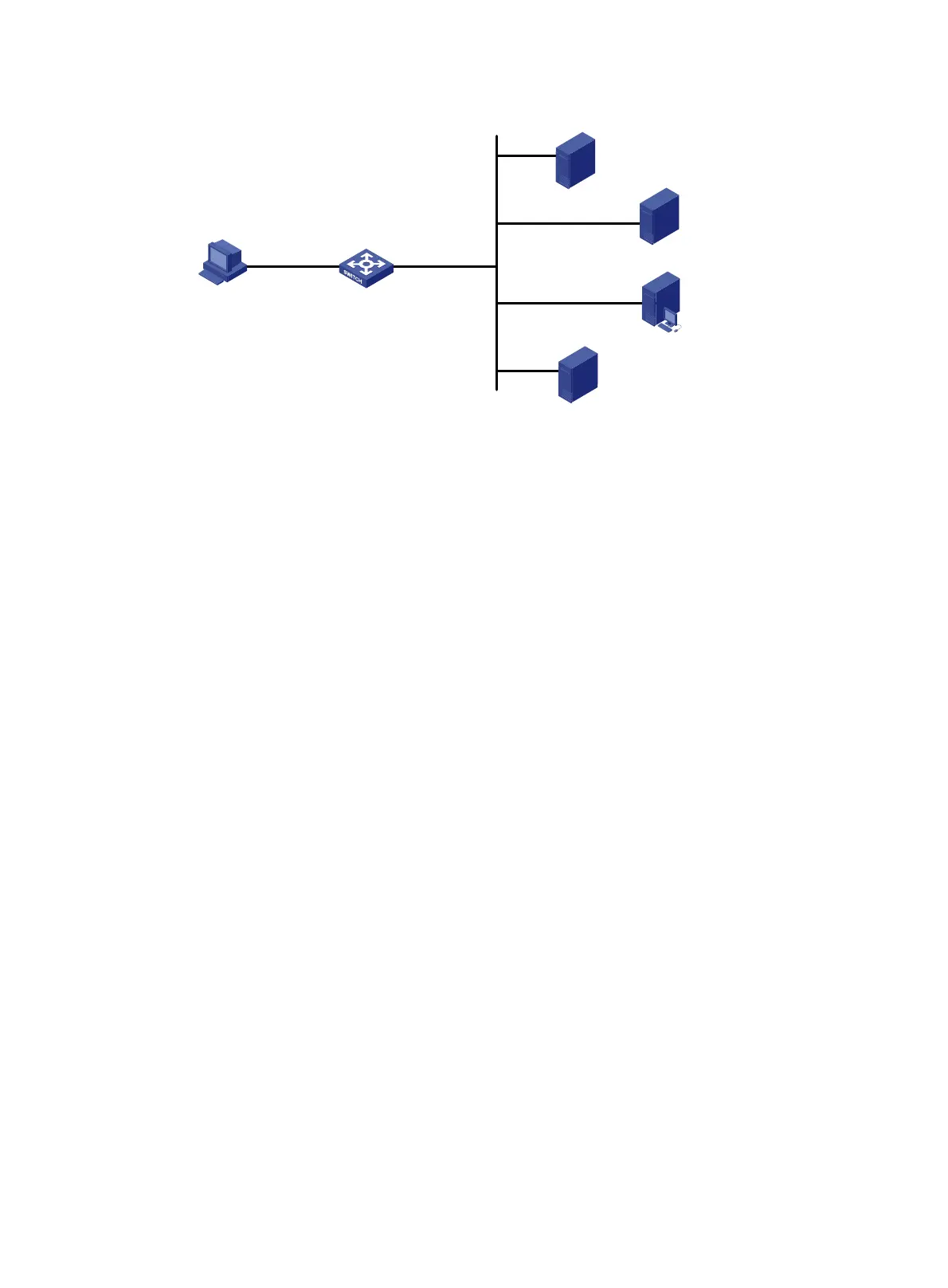

Figure 54 Network diagram
Configuration procedure
When you configure re-DHCP portal authentication, follow these guidelines:
• For re-DHCP portal authentication, configure a public address pool (20.20.20.0/24, in this
example) and a private address pool (10.0.0.0/24, in this example) on the DHCP server. (Details
not shown)
• For re-DHCP portal authentication, the switch must be configured as a DHCP relay agent and the
portal-enabled interface must be configured with a primary IP address (a public IP address) and a
secondary IP address (a private IP address). For information about DHCP relay agent configuration,
see Layer 3—IP Services Configuration Guide.
• Make sure the IP address of the portal device added on the portal server is the public IP address of
the interface connecting users (20.20.20.1 in this example), the private IP address range for the IP
address group associated with the portal device is the private network segment where the users
reside (10.0.0.0/24 in this example), and the public IP address range for the IP address group is
the public network segment 20.20.20.0/24.
• Configure IP addresses for the switch and servers as shown in Figure 54 and
make sure that the host,
switch, and servers can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions for users.
Perform the following configuration to configure re-DHCP portal authentication with extended functions
on the switch:
1. Configure a RADIUS scheme:
# Create a RADIUS scheme named rs1 and enter its view.
<Switch> system-view
[Switch] radius scheme rs1
# Set the server type for the RADIUS scheme. When using the IMC server, set the server type to
extended.
[Switch-radius-rs1] server-type extended
# Specify the primary authentication server and primary accounting server, and configure the keys
for communication with the servers.
[Switch-radius-rs1] primary authentication 192.168.0.113
[Switch-radius-rs1] primary accounting 192.168.0.113
Host
automatically obtains
an IP address
192.168.0.111/24
192.168.0.113/24
192.168.0.112/24
Switch
Vlan-int100
20.20.20.1/24
10.0.0.1/24 sub
Vlan-int2
192.168.0.100/24
Portal server
RADIUS server
DHCP server
192.168.0.114/24
Security policy server
