HP 3600 v2 Series Configuration Guide

178

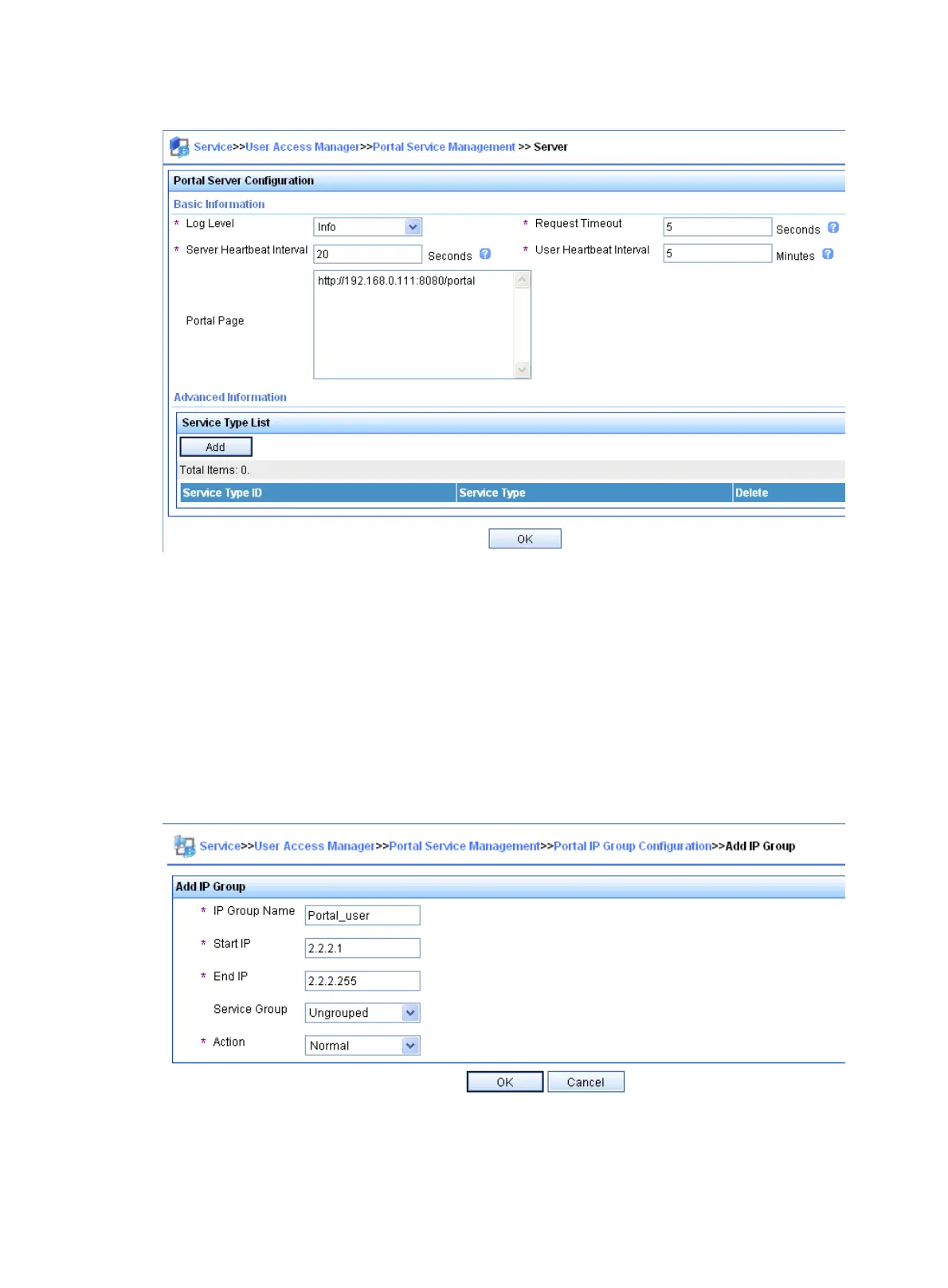

Figure 63 Portal server configuration
# Configure the IP address group.
Select User Access Manager > Portal Service Management > IP Group from the navigation tree to enter
the portal IP address group configuration page. Then, click Add to enter the page shown in Figure 47.
• Enter the I
P group name.
• Enter the start IP address and end IP address of the IP group. Make sure that the host IP address is
in the IP group.
• Select a service group. By default, the group Ungrouped is used.
• Select the IP group type Normal.
Figure 64 Adding an IP address group
# Add a portal device.
