HP 3600 v2 Series Configuration Guide

156

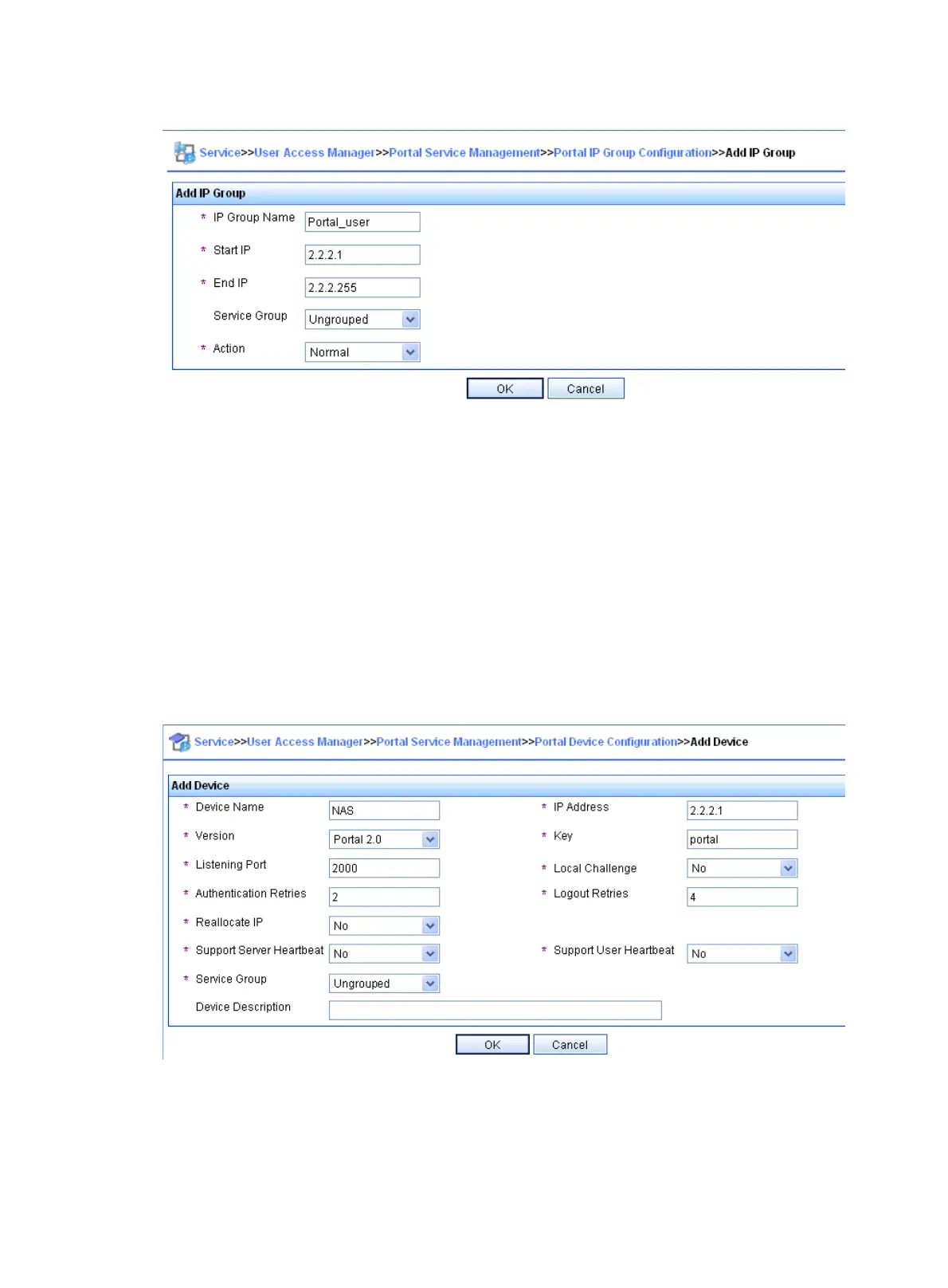

Figure 47 Adding an IP address group
# Add a portal device.
Select User Access Manager > Portal Service Management > Device from the navigation tree to enter the
portal device configuration page. Then, click Add to enter the page shown in Figure 48.
• En
ter the device name NAS.
• Enter the IP address of the switch's interface connected to the user.
• Enter the key, which must be the same as that configured on the switch.
• Set whether to enable IP address reallocation. This example uses direct portal authentication, and
therefore select No from the Reallocate IP list.
• Select whether to support sever heartbeat and user heartbeat functions. In this example, select No
for both Support Server Heartbeat and Support User Heartbeat.
Figure 48 Adding a portal device
# Associate the portal device with the IP address group.
As shown in Figure 49,
click the icon in the Port Group Information Management column of device NAS
to enter the port group configuration page.
