7-24
ES User’
s Guide
F
ront/Rear Panel
Line Module
The Line Fuse
The line fuse (HP part number 2110-0709), and a spare, reside within
the line module.
F
igure 7-12
illustrates where the fuses are and how to
access them.

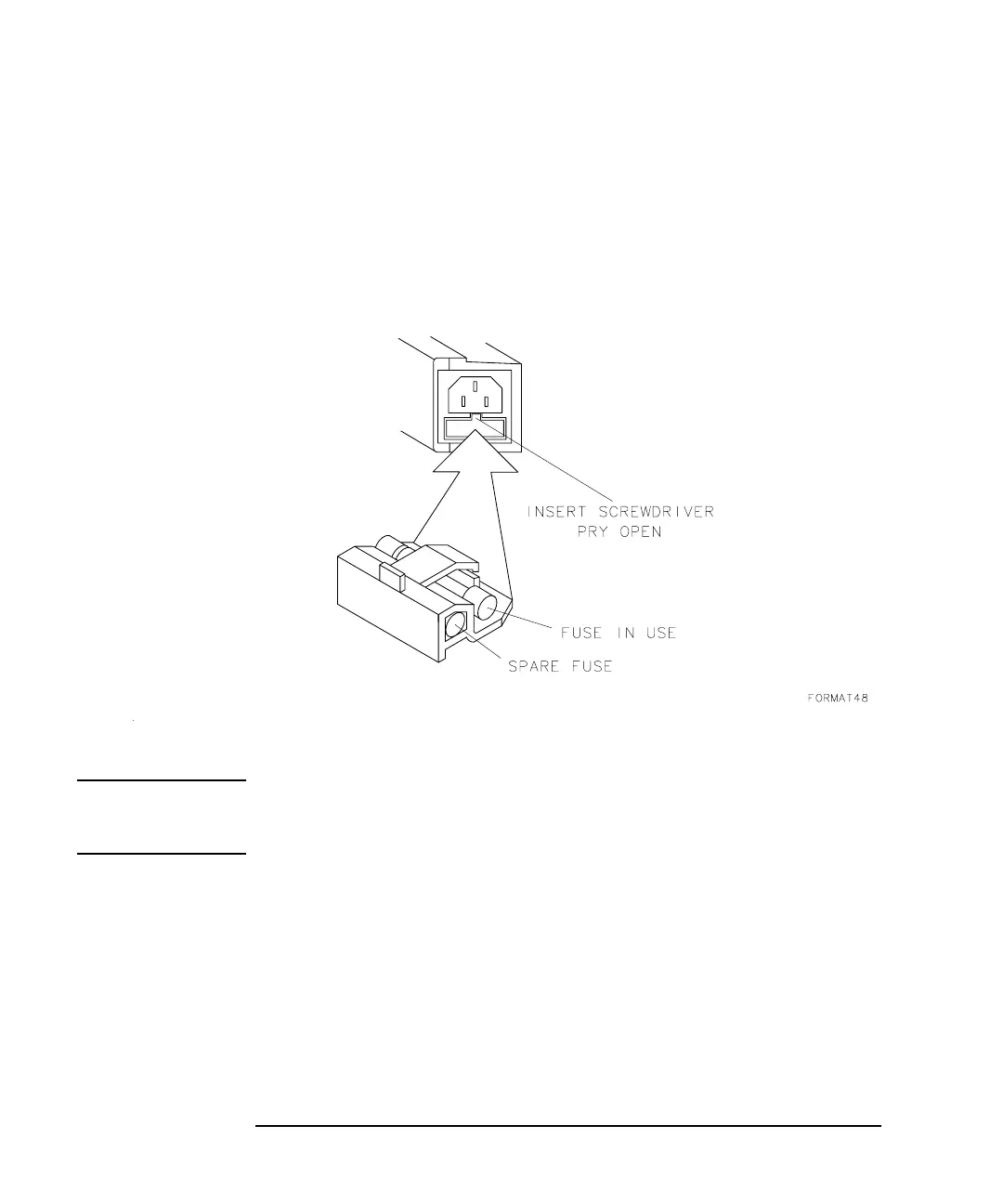

Figure 7-12
Location of Line Fuses
W
ARNING
F
or continued protection against fire hazard replace line fuse
only with same type and rating (T 5A 250 V). The use of other
fuses or material is prohibited.
