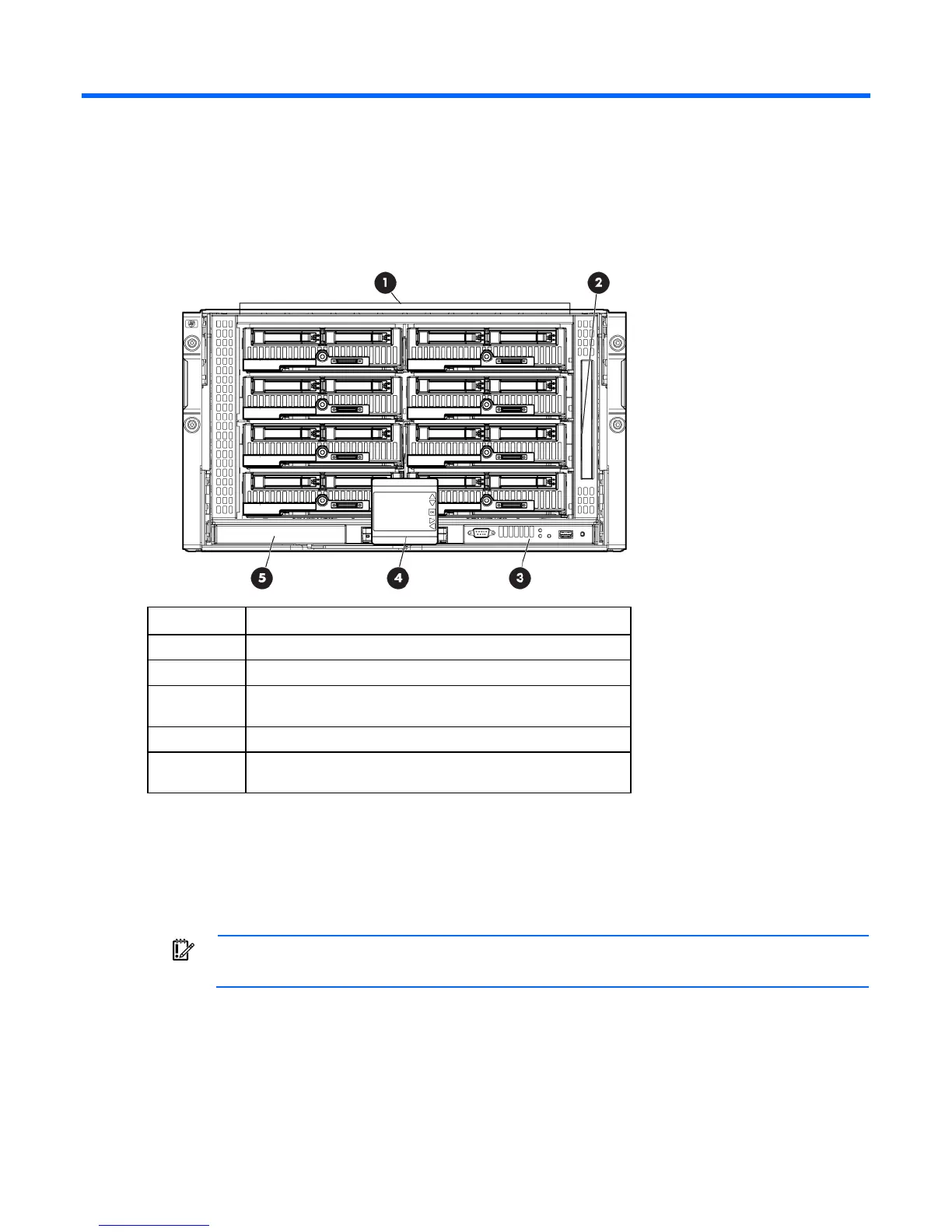

Enclosure front components
Item Description
1
Device bays ("Device bay numbering" on page 12)
2
CD/DVD-ROM drive
3
Onboard Administrator tray containing Onboard
Administrator 2
4
Insight Display
5
Onboard Administrator tray containing Onboard
Administrator 1 or an Onboard Administrator blank
Device bay numbering
Each enclosure requires interconnects to provide network access for data transfer. Interconnects reside in
bays located on the rear of the enclosure. Be sure to review device bay numbering to determine which
external network connections on the interconnects are active.
IMPORTANT: When looking at the rear of the enclosure, front device bay numbering is reversed.

HP BladeSystem c3000 Specifications

General

Form Factor	6U
Maximum Number of Blade Servers	8 half-height or 4 full-height
Maximum Number of Full-Height Blades	4
Cooling Fans	6 hot-plug fans
Management	HP Onboard Administrator
Interconnect Bays	4
Fans	6 hot-plug fans
Networking Options	Ethernet, Fibre Channel, InfiniBand
Power Supplies	Up to 6 (depending on configuration)
