Using the HP BladeSystem Insight Display 66
If there is a configuration error between the blade and the interconnect module, the error will be highlighted
in yellow.

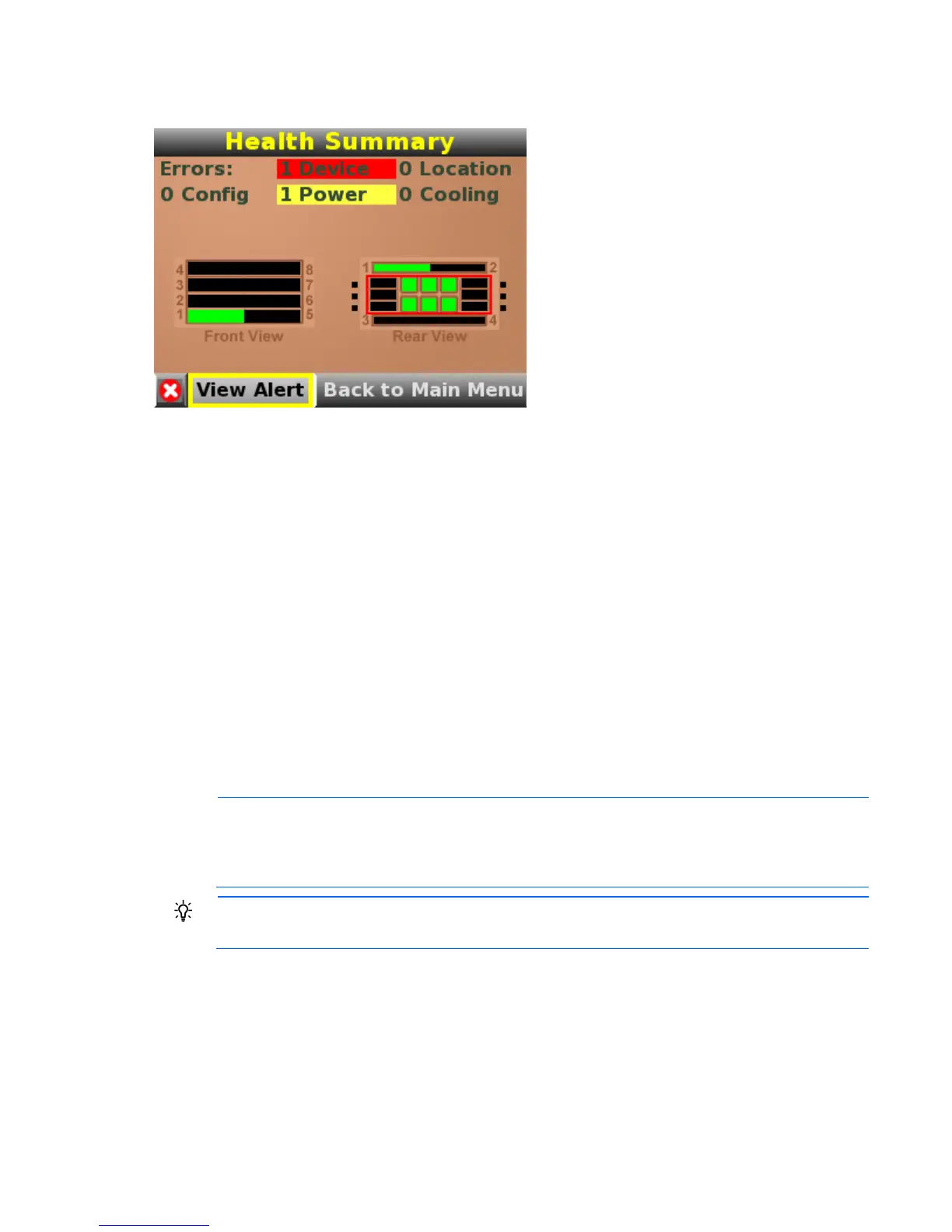

Select View Alert and press the OK button to display the errors.
Select Details to view the details of the error.
Enclosure Settings screen
The Enclosure Settings screen displays the following setting information about the enclosure:
• Power Mode setting
• Power Limit setting
• Power Savings mode setting
• Active and Standby OA IP addresses
• Enclosure Name
• Rack Name
• DVD Drive
• Insight Display PIN#
NOTE: The DVD Drive setting can attach or detach a CD or DVD loaded in the optional c3000
enclosure DVD drive to any or all blades in the enclosure. This feature can be used to install an
operating system or software on the blade(s). If the optional DVD drive is not present, an external
HP USB DVD drive can be used with this feature instead.
TIP: Set a PIN to protect the enclosure settings from changes.

HP BladeSystem c3000 Specifications

General

Form Factor	6U
Maximum Number of Blade Servers	8 half-height or 4 full-height
Maximum Number of Full-Height Blades	4
Cooling Fans	6 hot-plug fans
Management	HP Onboard Administrator
Interconnect Bays	4
Fans	6 hot-plug fans
Networking Options	Ethernet, Fibre Channel, InfiniBand
Power Supplies	Up to 6 (depending on configuration)
