Identifying components and LEDs 14

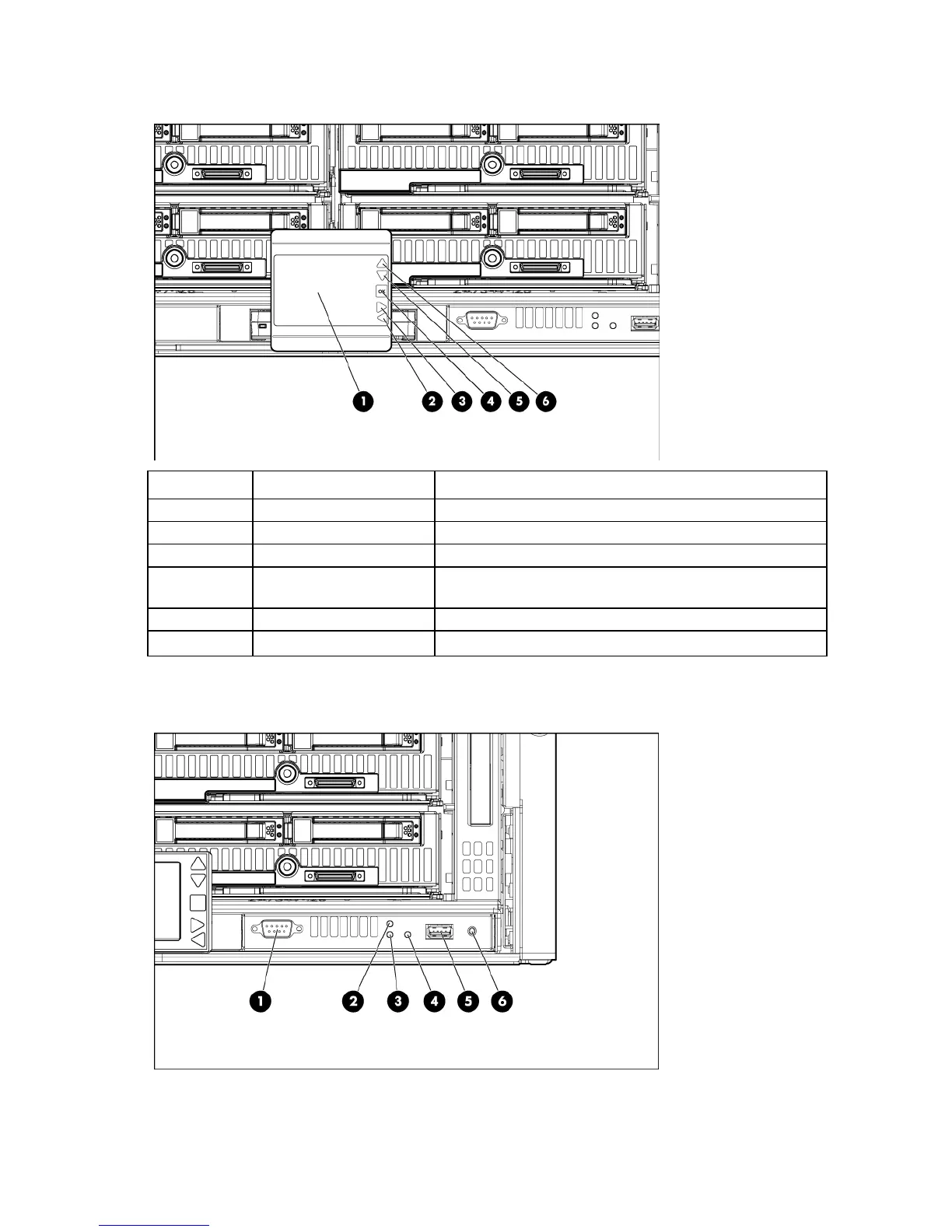

HP BladeSystem Insight Display components
Item Description Function
1
Insight Display screen Displays Main Menu error messages and instructions
2
Left arrow button Moves the menu or navigation bar selection left one position
3
Right arrow button Moves the menu or navigation bar selection right one position
4
OK button Accepts the highlighted selection and navigates to the selected
menu
5
Down arrow button Moves the menu selection down one position
6
Up arrow button Moves the menu selection up one position
HP BladeSystem Onboard Administrator connectors and LEDs

HP BladeSystem c3000 Specifications

General

Form Factor	6U
Maximum Number of Blade Servers	8 half-height or 4 full-height
Maximum Number of Full-Height Blades	4
Cooling Fans	6 hot-plug fans
Management	HP Onboard Administrator
Interconnect Bays	4
Fans	6 hot-plug fans
Networking Options	Ethernet, Fibre Channel, InfiniBand
Power Supplies	Up to 6 (depending on configuration)
