HP BladeSystem c3000 Setup And Installation

Installing components 42
3.

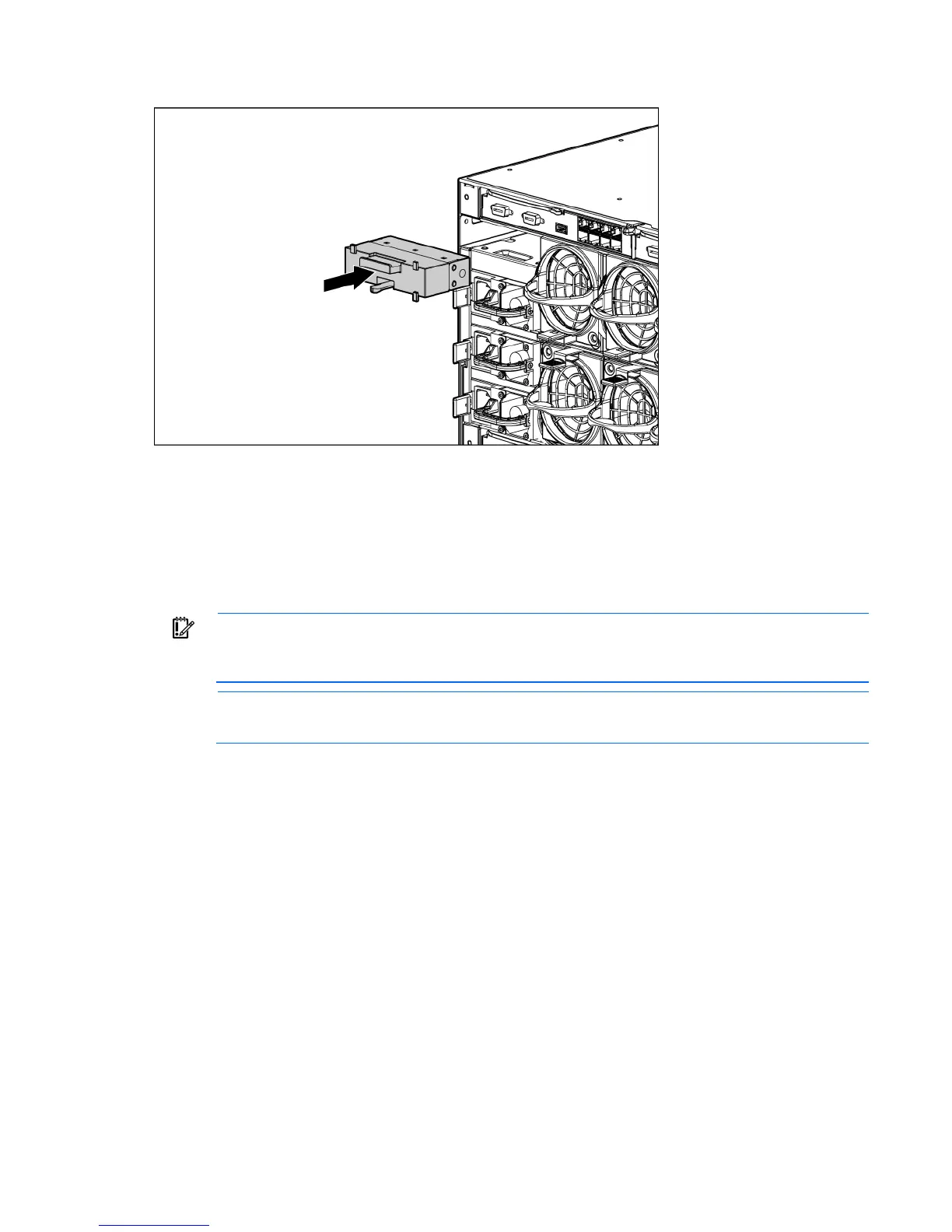

Install a blank in an unused KVM module bay. When fully inserted, the device locks into place.
Installing interconnect modules
There are four single-wide interconnect bays in the enclosure. Interconnect bay 1 is reserved for a gigabit
Ethernet switch or pass-through. Installation into the remaining interconnect bays depends on the type and
location of the mezzanine card installed in the server blade.
To verify compatibility with the enclosure, see the documentation that ships with the interconnect module.
IMPORTANT: If the mezzanine card is not installed properly or the interconnect module
installation does not coincide with the mezzanine card installation, the ports on the interconnect
module will not function.
NOTE: For more information on how and where to install mezzanine cards, see the
server-specific user guide.
To install an interconnect module:
1. Remove the interconnect blank.
2. If you are installing a double-wide interconnect module, remove the interconnect bay dividers
("Removing interconnect bay dividers" on page 49).
