HP BladeSystem c3000 Setup And Installation

Cabling and powering up the enclosure 53
Cabling and powering up the enclosure
Cabling the enclosure
After all system hardware is installed, cable the components. See the HP ProLiant BladeSystem c-Class Site
Planning Guide on the Documentation CD or the HP website (http://www.hp.com) for additional cabling
and site planning requirements.
WARNING: To reduce the risk of electric shock or injury due to high-current electrical energy, be
sure that all power is completely disconnected at the source before beginning any power
connections to the power bus bars or power bus box.
WARNING:
Be sure that all circuit breakers are locked in the off position before connecting any
power components.
To cable the system:
1. Connect the Onboard Administrator modules.
2. Connect the network cables to the interconnect modules. See the documentation that ships with the
interconnect modules, or the HP ProLiant BladeSystem c-Class Site Planning Guide on the
Documentation CD or the HP website (http://www.hp.com/go/bizsupport).
3. Connect to the AC or DC power source in your facility and power up the enclosure.

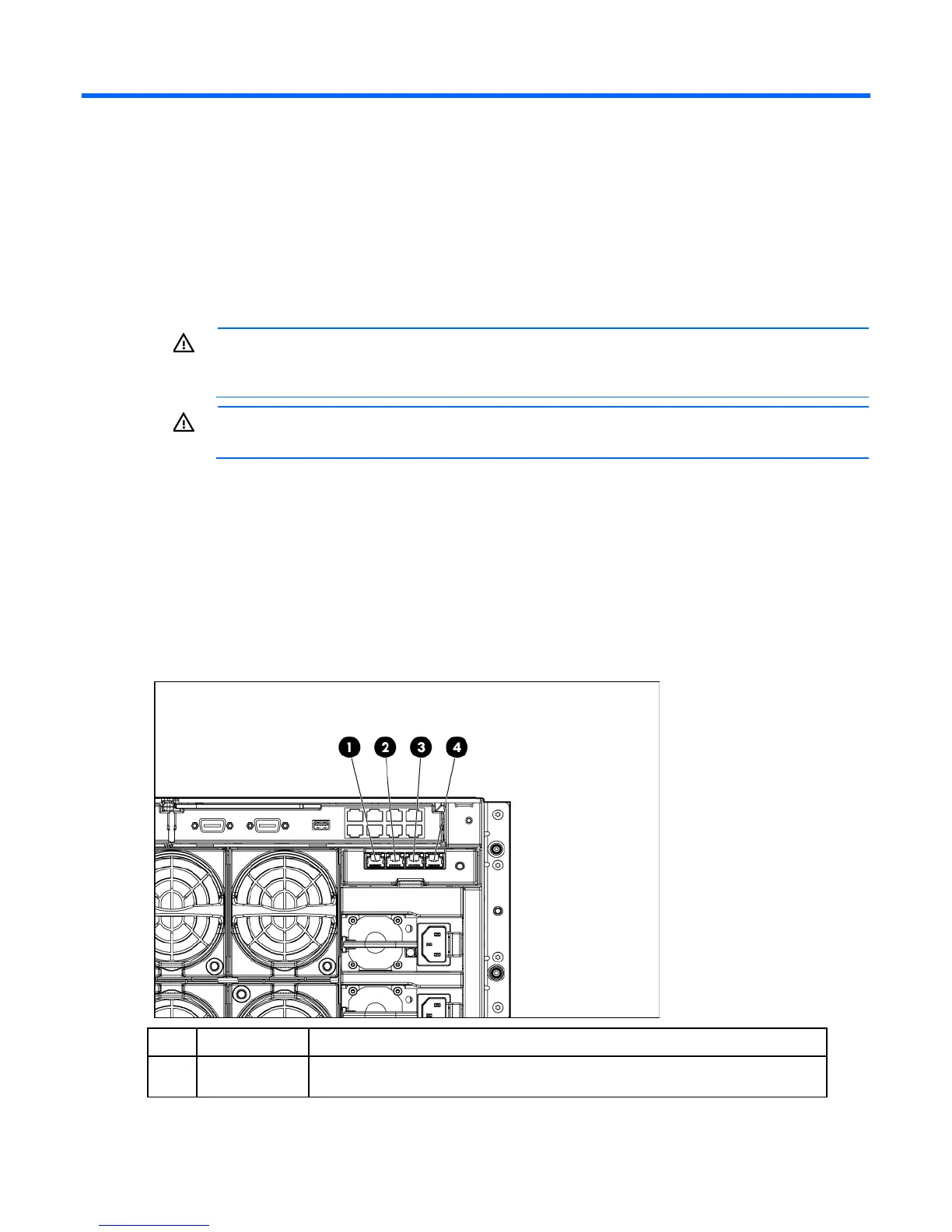

Cabling the HP BladeSystem Onboard Administrator
Item Connector Description
1
Enclosure
link-down port
Connects to the enclosure link-up port on the enclosure beneath it with a CAT5 patch
cable.
