Identifying components and
LEDs
17
P

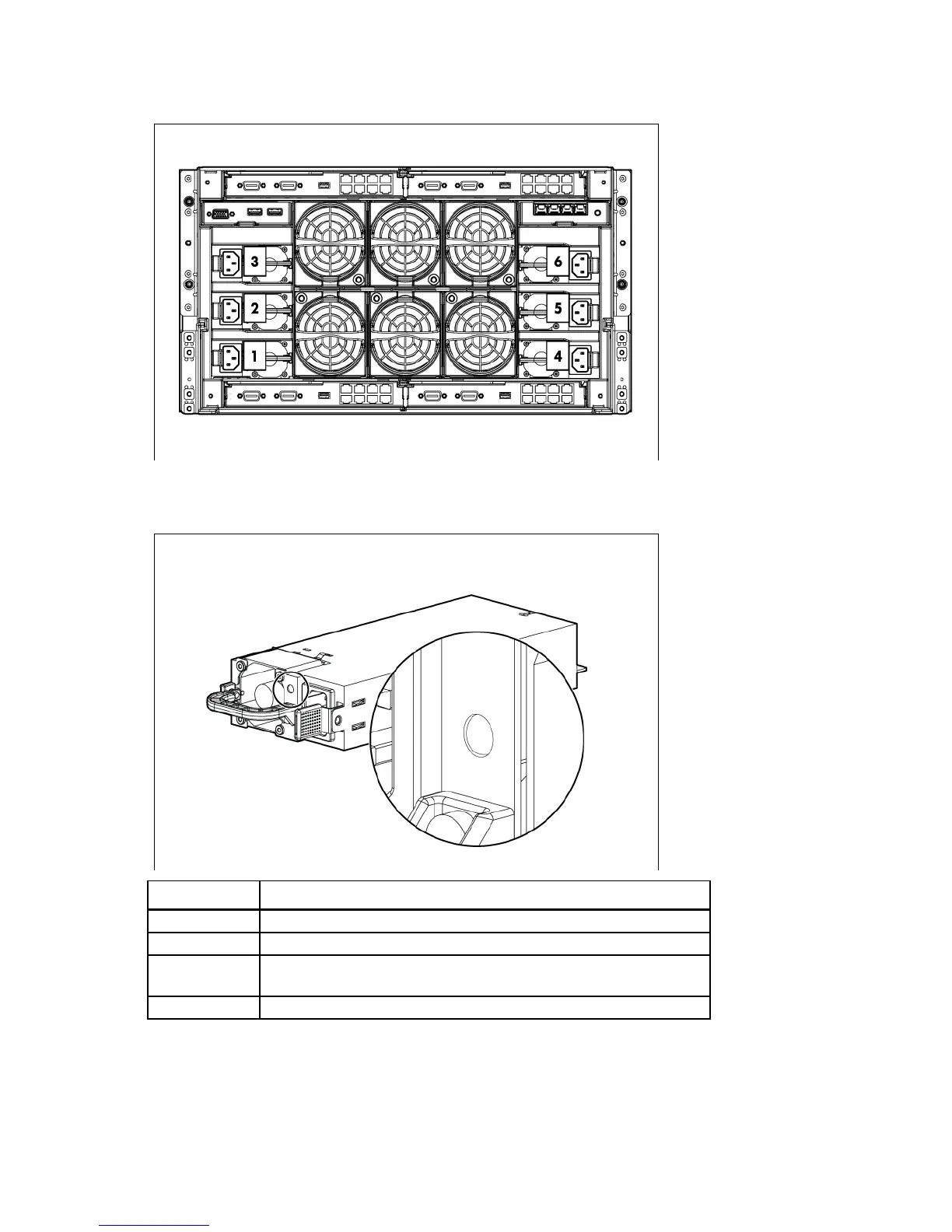

ower supply bay number
ing
P
ower supply LED
Power LED
Status
Off
No AC power to pow
er supply units
Green
AC is present. Standby output is on
, output is disabled.
Green
AC is present. Standby output is
o
n, power supply D
C output is o
n and
OK.
Off
Power supply failure (includes ov
ervoltage and overtemperature)
16
18
Table of Contents
Default Chapter
1
Hp Bladesystem C3000 Enclosure
1
Table of Contents
3
Planning the Installation
5
Pallet Contents
5
Platinum Features
6
Rack Requirements
6
Rack-Free Environment Requirements
7
Warning, Caution, and Important Messages
7
Temperature Requirements
9
Space and Airflow Requirements
9
Power Requirements
10
Grounding Requirements
10
Identifying Components and Leds
12
Enclosure Front Components
12
Device Bay Numbering
12
HP Bladesystem Insight Display Components
14
HP Bladesystem Onboard Administrator Connectors and Leds
14
Enclosure Rear Components
15
Fan Bay Numbering
16
Fan Leds
16
Power Supply Bay Numbering
17
Power Supply LED
17
Interconnect Bay Numbering
18
Installing Components
19
Installation Overview
19
Disassembling the Enclosure
19
Rack-Free Installation
22
Rack Installation
22
Measuring with the Rack Template
23
Installing the Rack Rails
23
Installing the Enclosure in a Rack
24
Installing the Front Cage into the Enclosure
25
Component Installation
26
Installing a Power Supply
26
Installing a Full-Height Blade
27
Populating Power Supply Bays
27
Installing a Half-Height Blade
33
Installing Fans
37
Installing a KVM Module
39
Installing Interconnect Modules
42
Mapping to Interconnect Ports
43
Mapping Bl2X220C Blades
47
Removing Interconnect Bay Dividers
49
Installing the Enclosure/Onboard Administrator Link Module
50
Connecting Locally to a Server Blade with Video and USB Devices
50
Accessing a Server Blade with Local Kvm
51
Accessing Local Media Devices
51
Cabling and Powering up the Enclosure
53
Cabling the Enclosure
53
Cabling the HP Bladesystem Onboard Administrator
53
Enclosure Link Cabling
54
Cabling a PC to the Enclosure Service Port
55
Cabling the Network to the Enclosure
55
Installing a PDU
56
Powering up the Enclosure
56
Using the HP Bladesystem Insight Display
57
Insight Display Overview
57
Installing and Configuring the Insight Display
57
Accessing the HP Bladesystem Insight Display
63
Navigating the Insight Display
64
Health Summary Screen
65
Enclosure Settings Screen
66
Enclosure Info Screen
67
Blade or Port Info Screen
68
Turn Enclosure UID On/Off Screen
69
View User Note Screen
70
Chat Mode Screen
70
USB Menu Screen
71
KVM Menu Screen
72
Troubleshooting
76
Troubleshooting Resources
76
Important Safety Information
76
Symbols on Equipment
76
Warnings and Cautions
77
Insight Display Errors
78
Power Errors
78
Cooling Errors
78
Location Errors
79
Configuration Errors
79
Device Failure Errors
79
Support and Other Resources
80
Before You Contact HP
80
HP Contact Information
80
Customer Self Repair
80
Regulatory Information
88
Safety and Regulatory Compliance
88
Turkey Rohs Material Content Declaration
88
Ukraine Rohs Material Content Declaration
88
Warranty Information
88
Electrostatic Discharge
89
Preventing Electrostatic Discharge
89
Grounding Methods to Prevent Electrostatic Discharge
89
Acronyms and Abbreviations
90
Documentation Feedback
91
Index
92
Other manuals for HP BladeSystem c3000
Manual
38 pages
Quickspecs
35 pages
Specification
32 pages
