Installing components 26
Component installation
The following sections contain installation instructions for the individual enclosure components. All
components must be installed and cabled before you power up the enclosure. There is no specific installation
order requirement for the enclosure components.

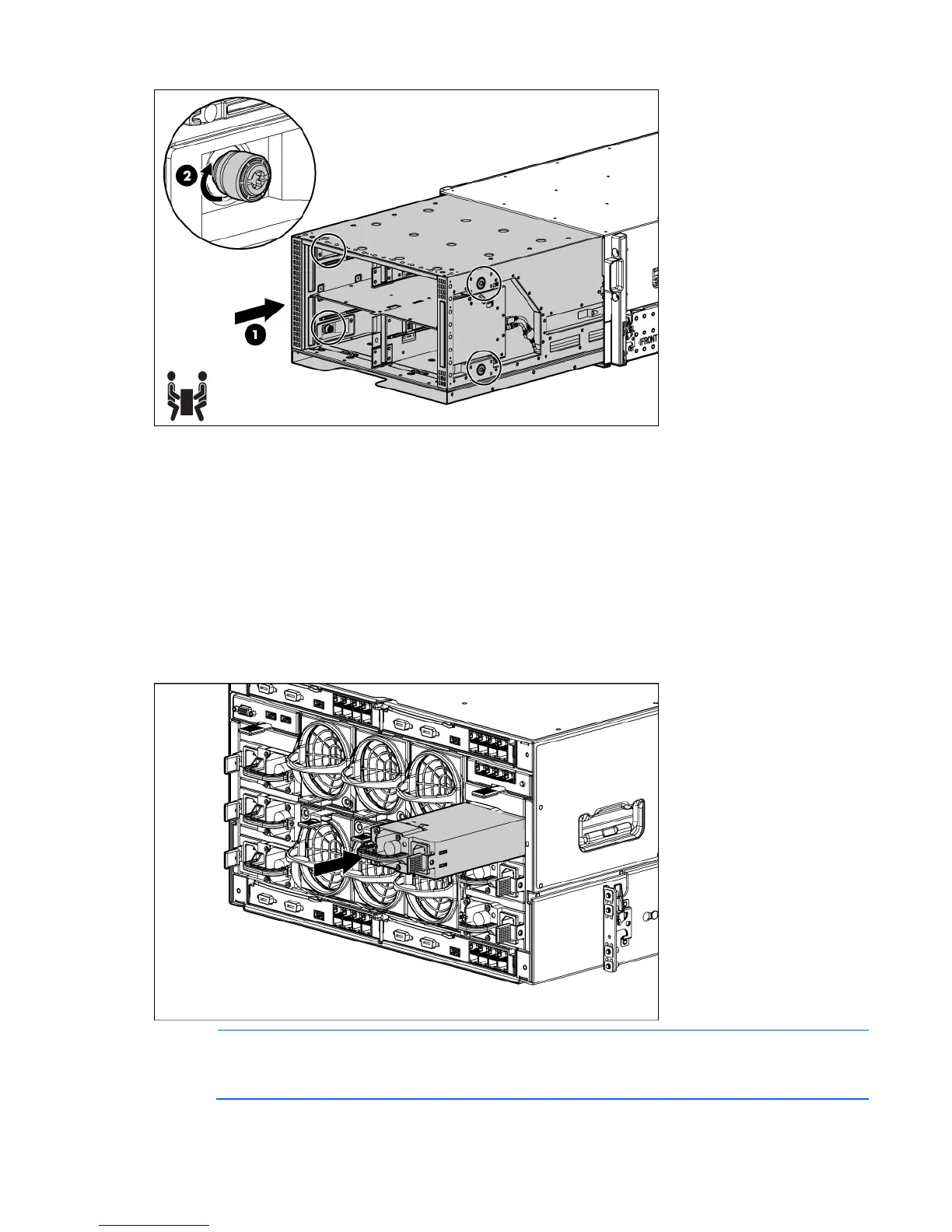

Installing a power supply
1. Slide the power supply into the power supply bay until the device locks into place. Repeat this step for
each required power supply.
NOTE: When installing a power supply in power supply bay 1, 2, or 3, orient the power supply
so the plug is on the left side. When installing a power supply in power supply bay 4, 5, or 6,
orient the power supply so the plug is on the right side.
