The printer’s main components

The following front and rear views of the printer illustrate the main components.

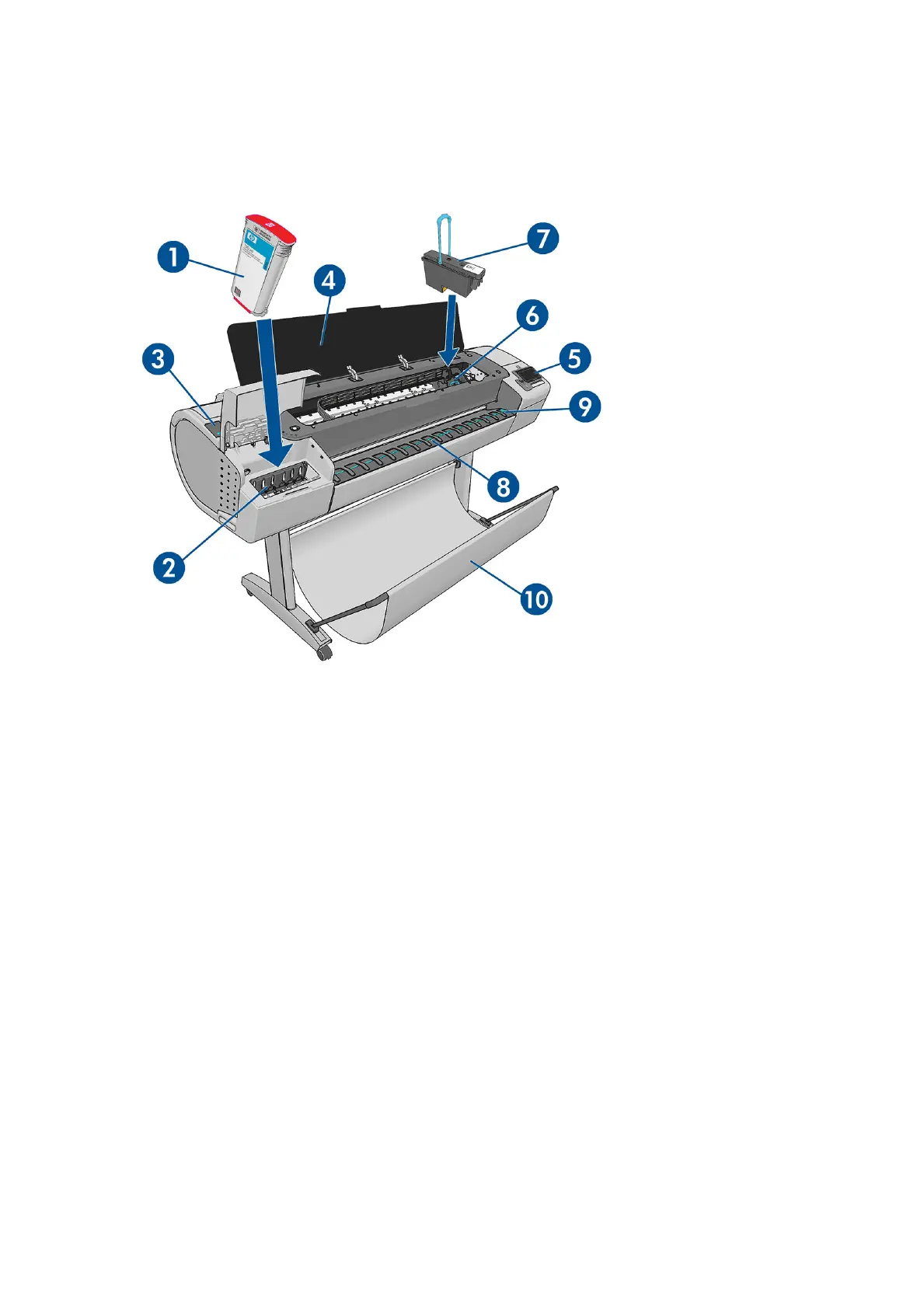

Front view

1. Ink cartridge

2. Ink cartridge slots

3. Blue lever

4. Window

5. Front panel

6. Printhead carriage

7. Printhead

8. Output tray

9. Paper alignment lines

10. Basket

6 Chapter 1 Introduction ENWW
