Monitoring and Analyzing Switch Operation
Status and Counters Data
Switch Management Address Information
Menu Access
From the Main Menu, select:
1 Status and Counters …
2. Switch Management Address Information

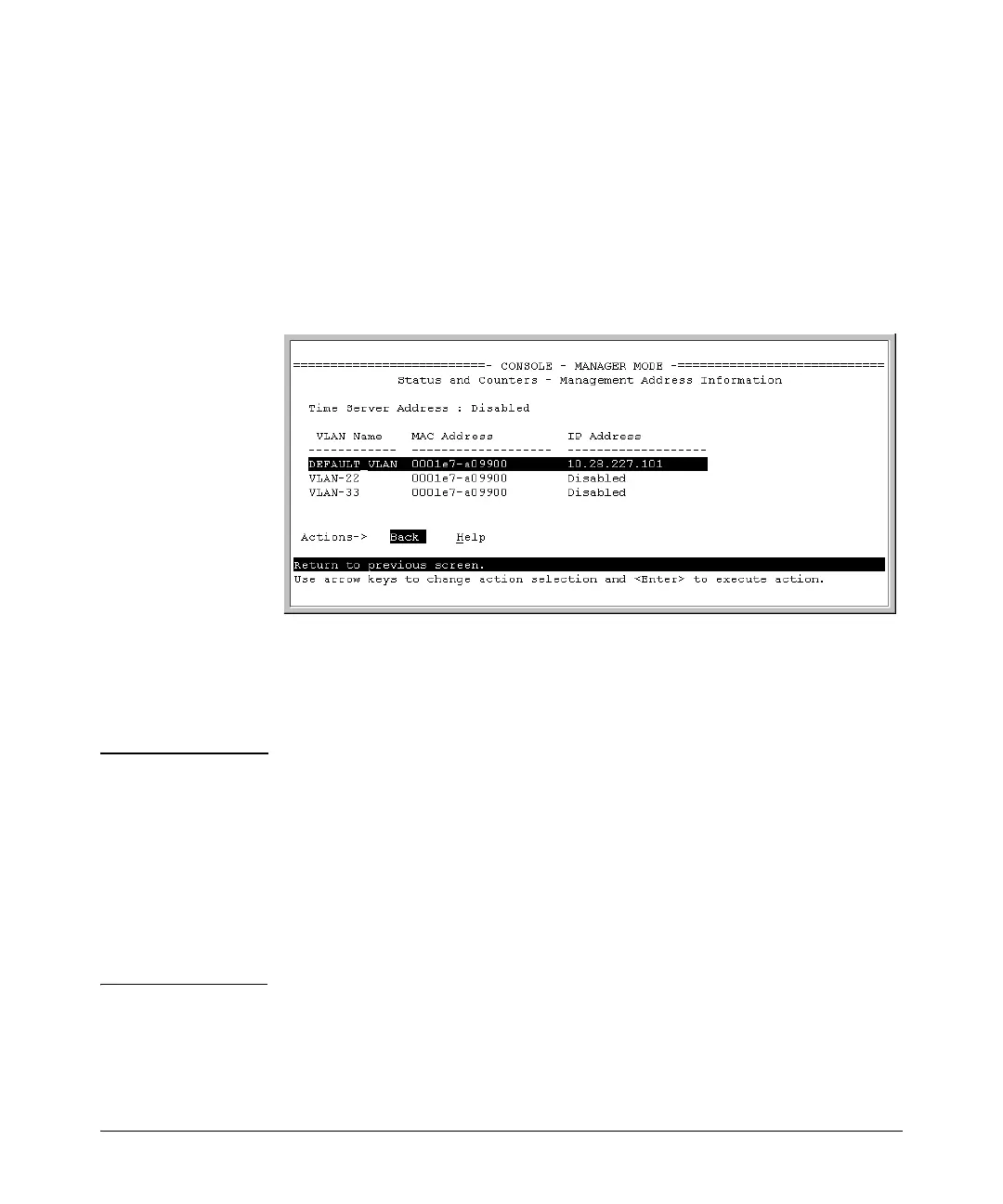

Figure B-3. Example of Management Address Information with VLANs Configured
This screen displays addresses that are important for management of the
switch. If multiple VLANs are not configured, this screen displays a single IP
address for the entire switch. Refer to the online Help for details.
Note As shown in figure B-3, all VLANs on the switches use the same MAC address.
(This includes both the statically configured VLANs and any dynamic VLANs
existing on the switch as a result of GVRP operation.)
Also, the switches covered in this guide use a multiple forwarding database.
When using multiple VLANs and connecting a switch to a device that uses a
single forwarding database, such as a Switch 4000M, there are cabling and
tagged port VLAN requirements. For more on this topic, refer to the section
titled “Multiple VLAN Considerations” in the “Static Virtual LANs (VLANs)
chapter of the Advanced Traffic Management Guide for your switch.
CLI Access
Syntax: show management
